Nodes 5-16
Branch node

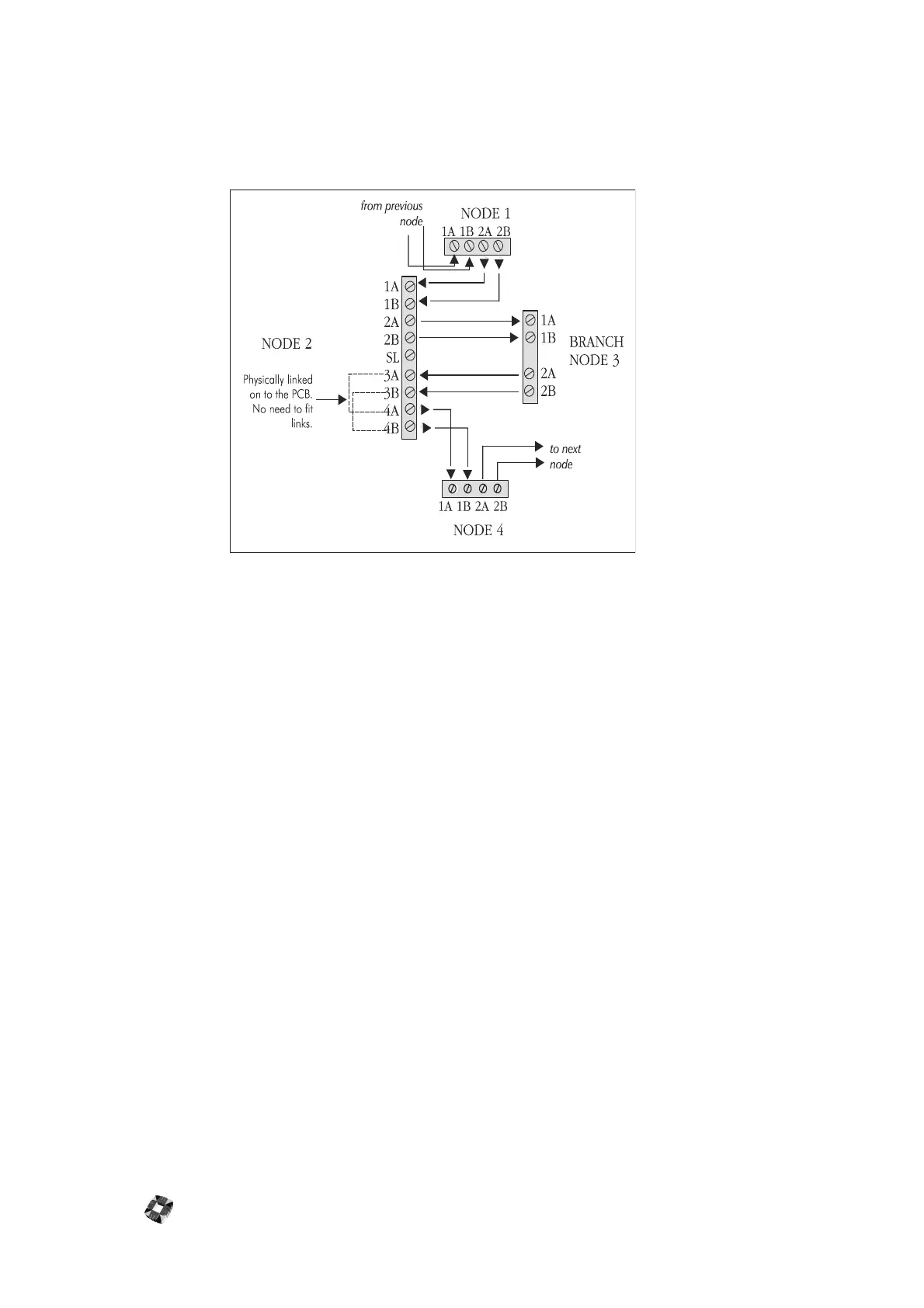

A node may be wired as a branch node using terminals 3A, 3B, 4A, and 4B as shown in the following diagram. This
configuration is valid for the ringnet. Check the cable distances between the nodes, ensuring that the cable distance
between node 3 and node 4 is within the distances specified in the Cable Type table on page 5-14.
