Nodes 5-18

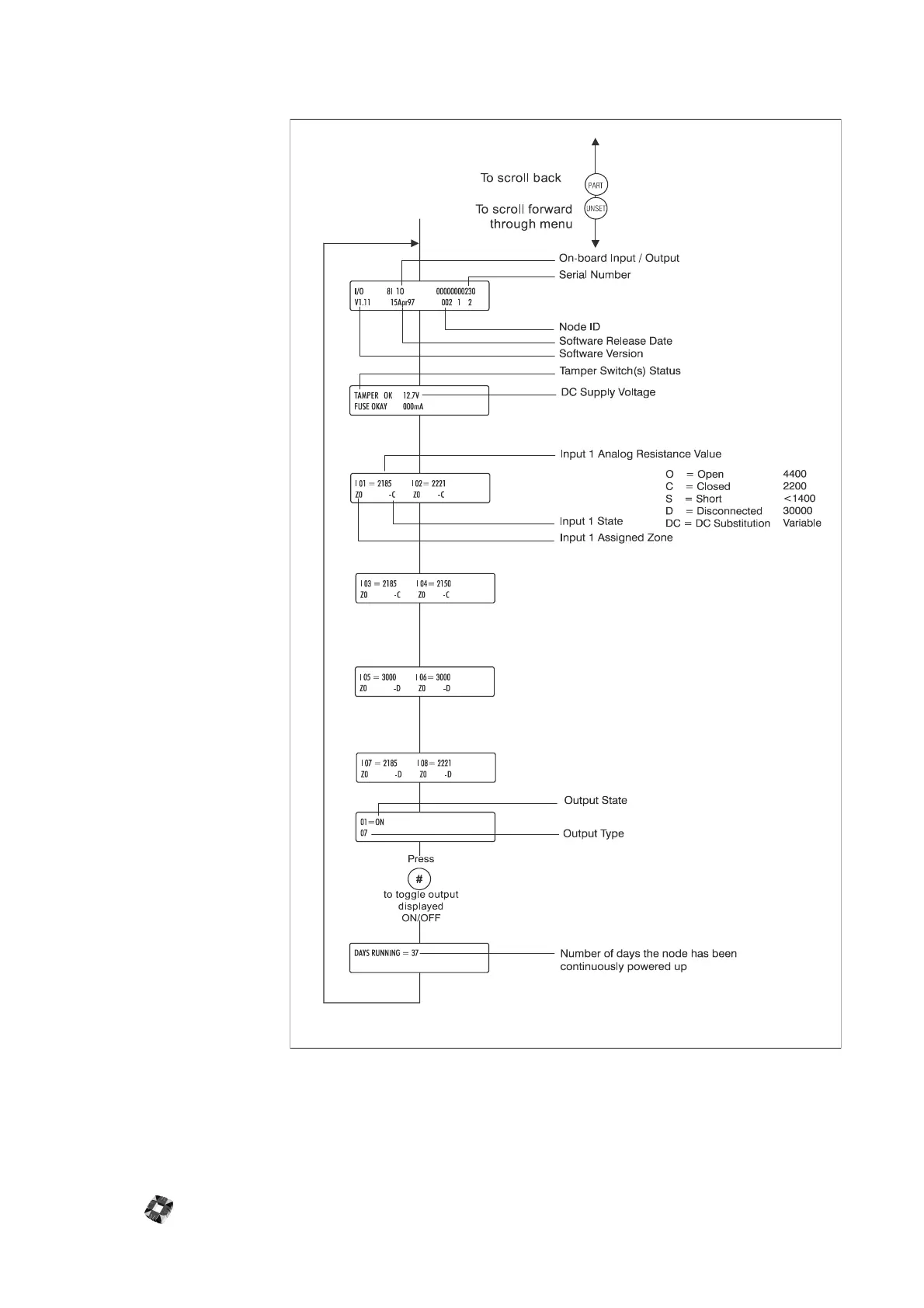

Diagnostic Menu: 8x1 and 8x2 I/O Nodes
This menu provides you with
data on the 8 I/O node’s current
configuration and allows
monitoring of node and PSU
parameters. This information
includes inputs, outputs, fuse,
and tamper status.
It can be utilised to interrogate
the status of the node without
having to remove the cabinet lid,
thus avoiding interfering with
cables and the need to use a
voltmeter for measuring node
voltage and currents.
It can be accessed using the HHT
infrared. Alternatively, the same
node information can be
accessed through the Node
Configure menu - Monitor
submenu. See Node Configure-
>Nodes->Information->Monitor
in 3GS Programming for further
information.
Note For further information
on HHT menus, see Hand
Held Terminal in 3GS
Peripherals.
