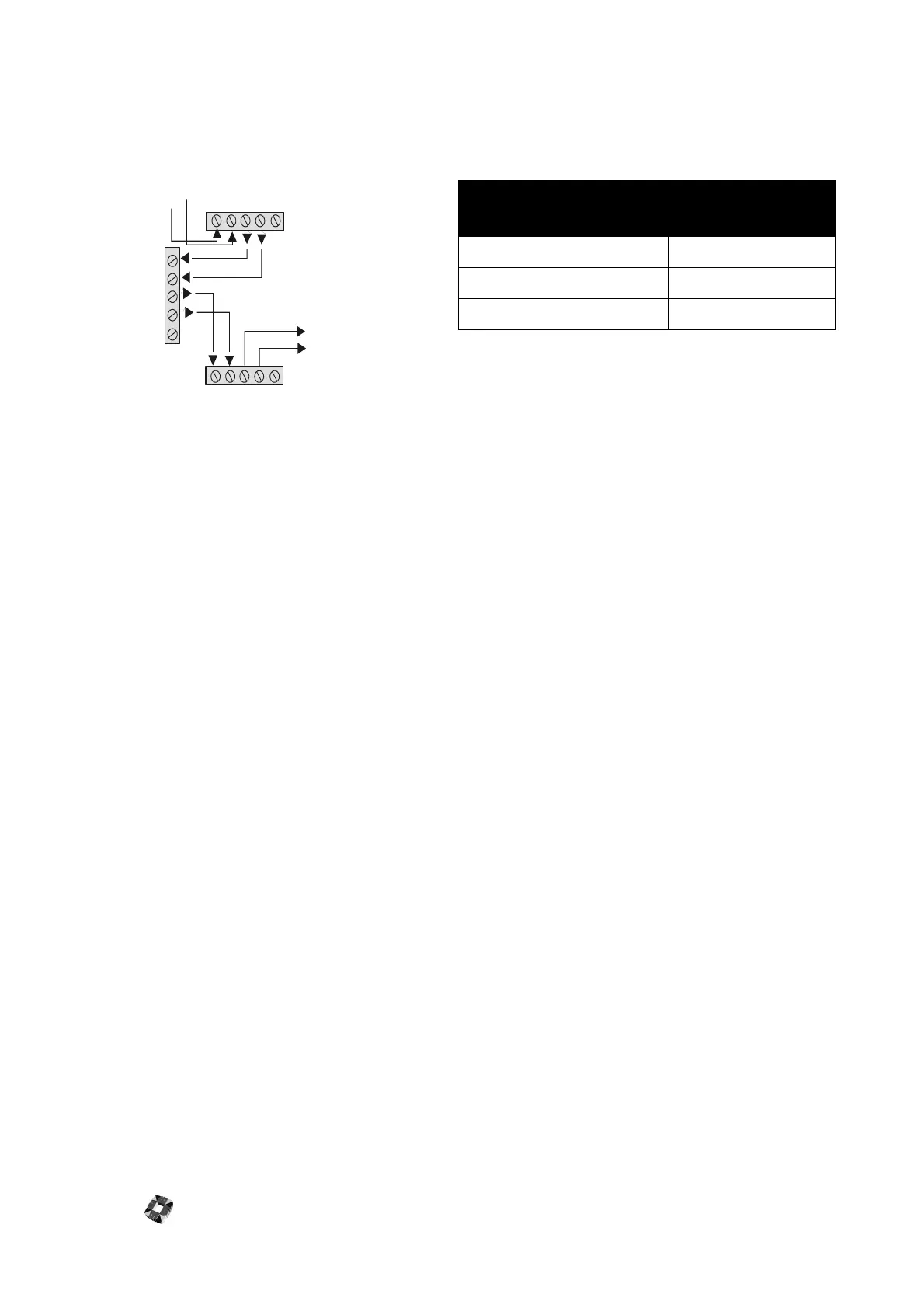

햺 Ringnet Communications Connect the ringnet cable to the four terminals 1A to 2B. These terminals are used for
connecting the 6 Output node onto the ringnet – as illustrated in the following connection diagram and cable type
table.
Note See also the branch diagram in “8 Input/1 Output (I/O) Node” on page 5-13.
1A
1B
2A
2B
SL
1A 1B 2A 2B SL
1A 1B 2A 2B SL
6 Output
Node
NODE
NODE
to next
node
from previous
node
cable type
maximum distance
between nodes
Belden 9502 (screened) 500m
UTP Category: 5 solid core 1000m
Belden 9829 1000m
