Nodes 5-30
햸
Battery leads For connection of battery backup.
햹
Front tamper For monitoring of lid tamper conditions.
햺
Front tamper link Remove this link to enable front tamper monitoring.
햻

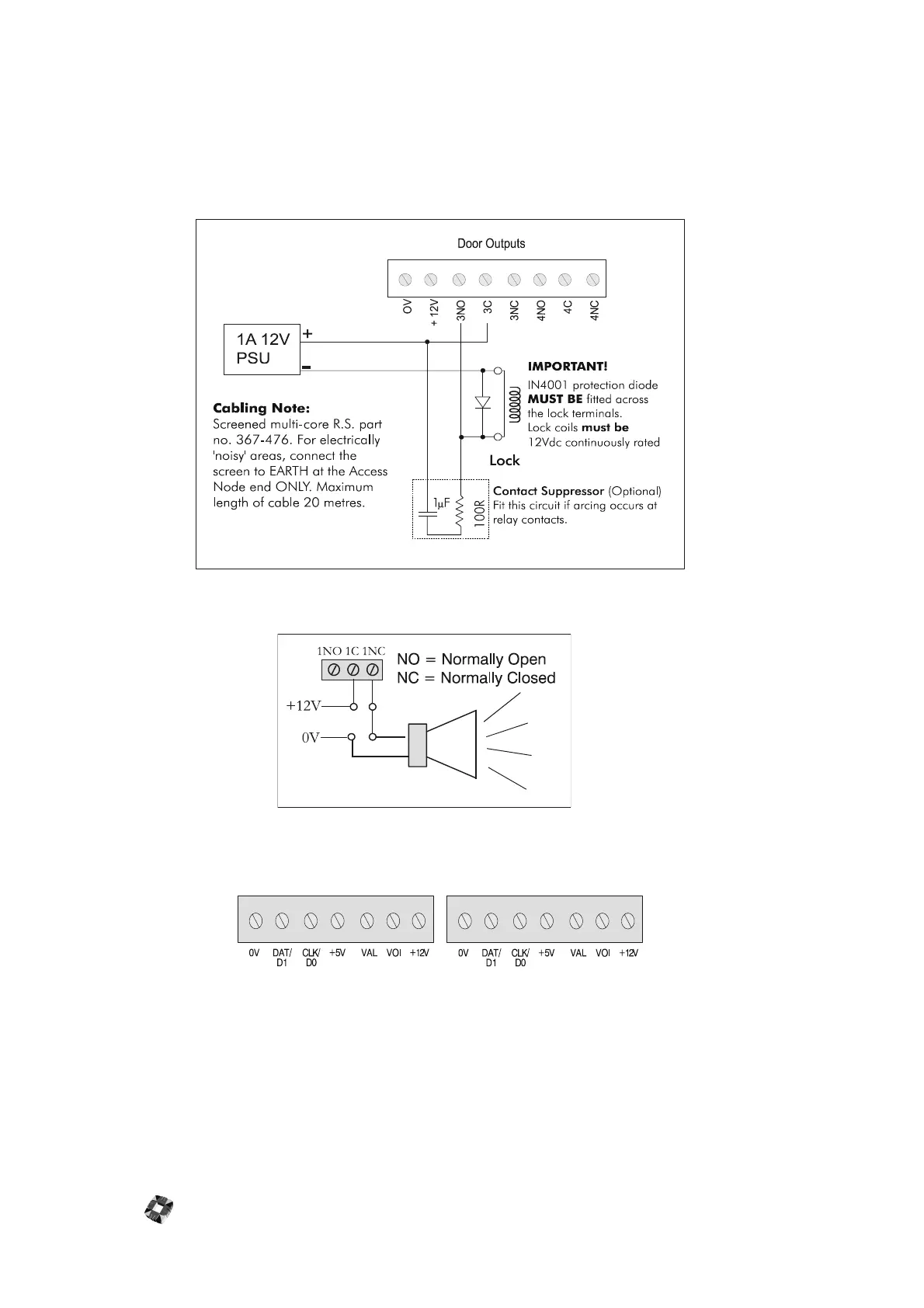

Door outputs These door outputs are used for driving the door locks. Door output 1 is linked to Reader 1. The
door locks should be powered from a separate power supply, as illustrated in the following diagram.
햽
Outputs The ACN has two on-board 1Amp single pole changeover relays, which can be assigned to any of the
system outputs. See Node Configure->Outputs in 3GS Programming for further information.
햾
Readers 1 and 2 The access node can be used with a variety of Weigand and Clock and Data readers, including
Huges, Motorola, Deister, AXM and, Mr sensors.
Connection Details
0V: 0V connection on all readers
DAT/D1: DATA connection for Clock & Data readers
DATA1 connection for Weigand readers
CLK/D0: CLOCK for Clock & Data readers
DATA0 connection for Weigand readers
+5V: +5V power connection
Reader 1
Reader 2
To Next Page
