Nodes 5-52

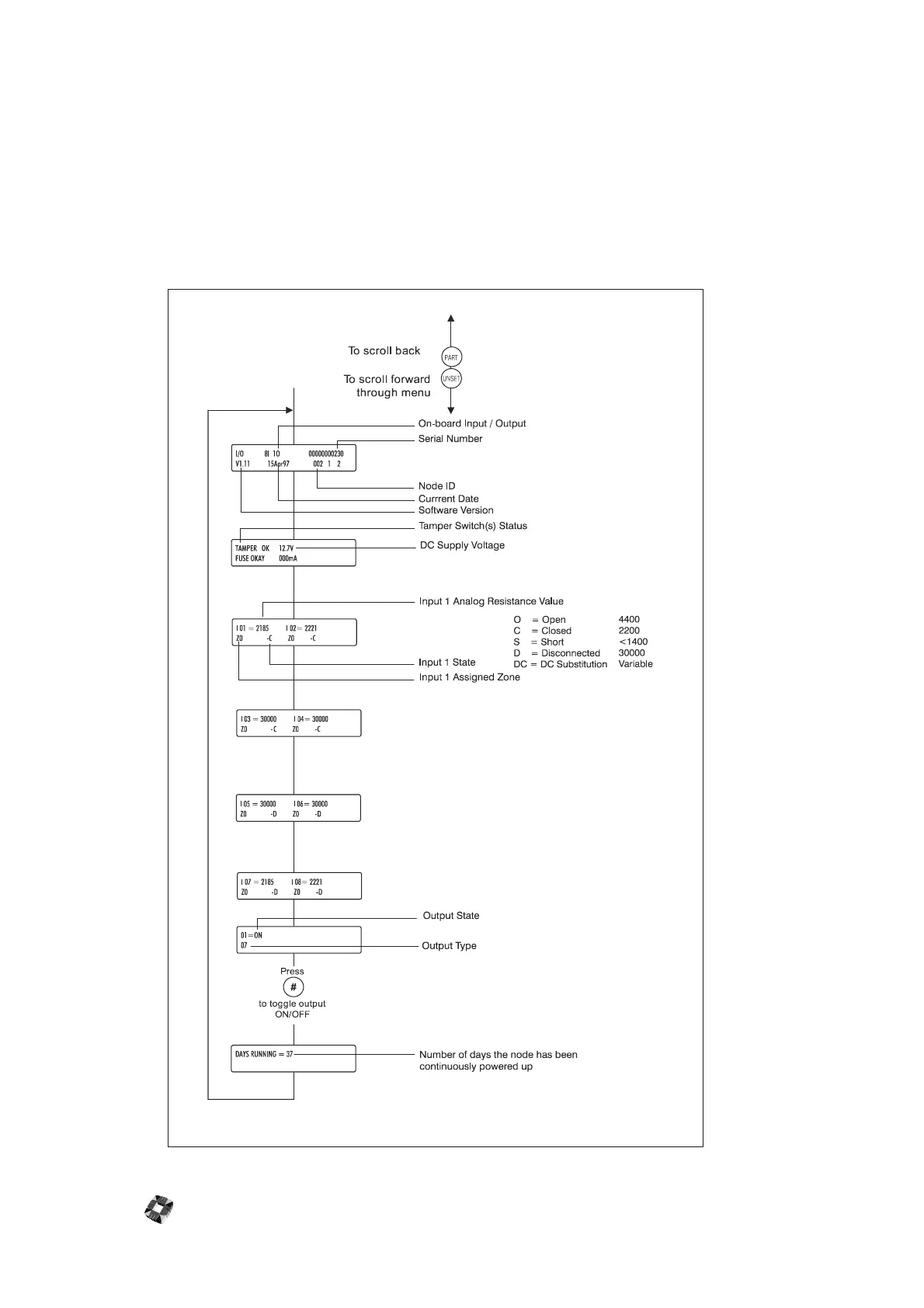

Diagnostic Menu: Encryption Node
This menu provides you with data on the encryption node’s current configuration and allows monitoring of node and
PSU parameters. This information includes inputs, outputs, fuse, and tamper status.
It can be utilised to interrogate the status of the node without having to remove the cabinet lid, thus avoiding
interfering with cables and the need to use a voltmeter for measuring node voltage and currents.
It can be accessed using the HHT infrared. Alternatively, the same node information can be accessed through the Node
Configure menu - Monitor submenu – see Node Configure> Nodes->Information->Monitor in 3GS Programming for
further information.
Note For further information on HHT menus, see Hand Held Terminal in 3GS Peripherals.
