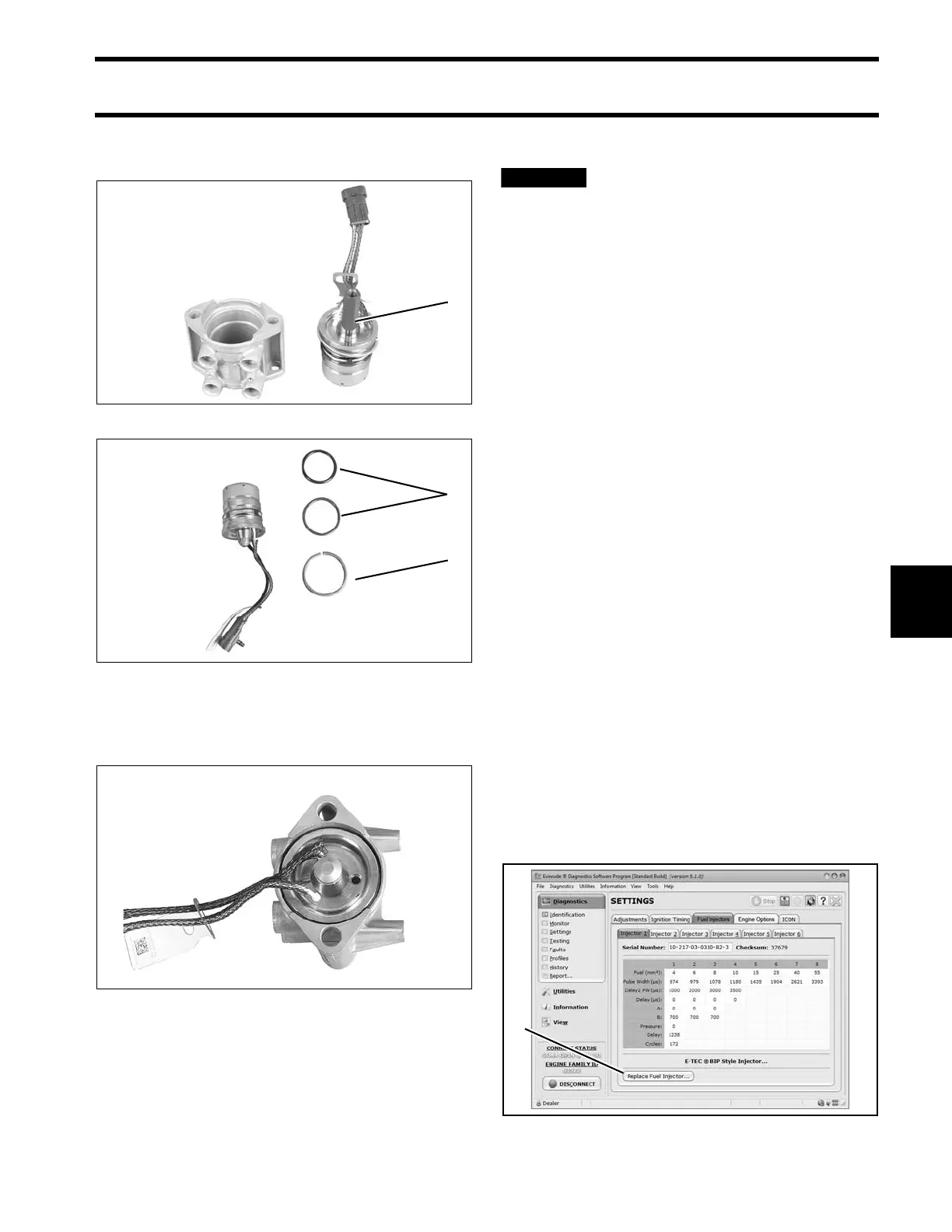

147
FUEL SYSTEM
FUEL COMPONENT SERVICING
7
tor filter. Install new crush ring and O-rings. Lubri-
cate O-rings with STP
†
Oil Treatment.
Install injector into mount housing. Press on injec-
tor face until injector seats in mount housing.
Installation
All injectors must be installed in the
correct cylinder by serial number. Improper
injector installation can result in powerhead
failure.
Installation of a replacement injector requires that
coefficient data for the new injector is uploaded to
the EMM.
Coefficient data for some replacement injectors is
supplied on a compu ter d isk shipp ed with th e
injector. If a disk is not included with the injector,
coefficient dat a ca n be downloade d from th e
Evinrude/Johnson dealer website. Ref er to th e
instructions provided with the injector kit.
Upload Coefficient Files to EMM
IMPORTANT: If using Diagnostic Power Supply
Tool, P/N 587005, to supply po wer to th e EMM,
use Accessory Power Cable Kit, P/N 5008092, to
connect a n externa l 12 volt bat tery to the Power
Supply Tool.
If the internal batte ries of the Power Supply T ool
have a low volt age condition the EMM could turn
OFF during the coefficient upload, resulting in a
failed update.
Use t he Evinrude Diagnostics so ftware Settings
screen to upload the coefficient file to the EMM.
Select the Injectors tab.
Select the cylinder tab for injector being replaced.
Select the Replace Injector button.
1. Adaptor 002196
1. Crush ring
2. O-rings
002317
002318
1. “Replace Injector” button 008568A
