148
FUEL SYSTEM
FUEL COMPONENT SERVICING

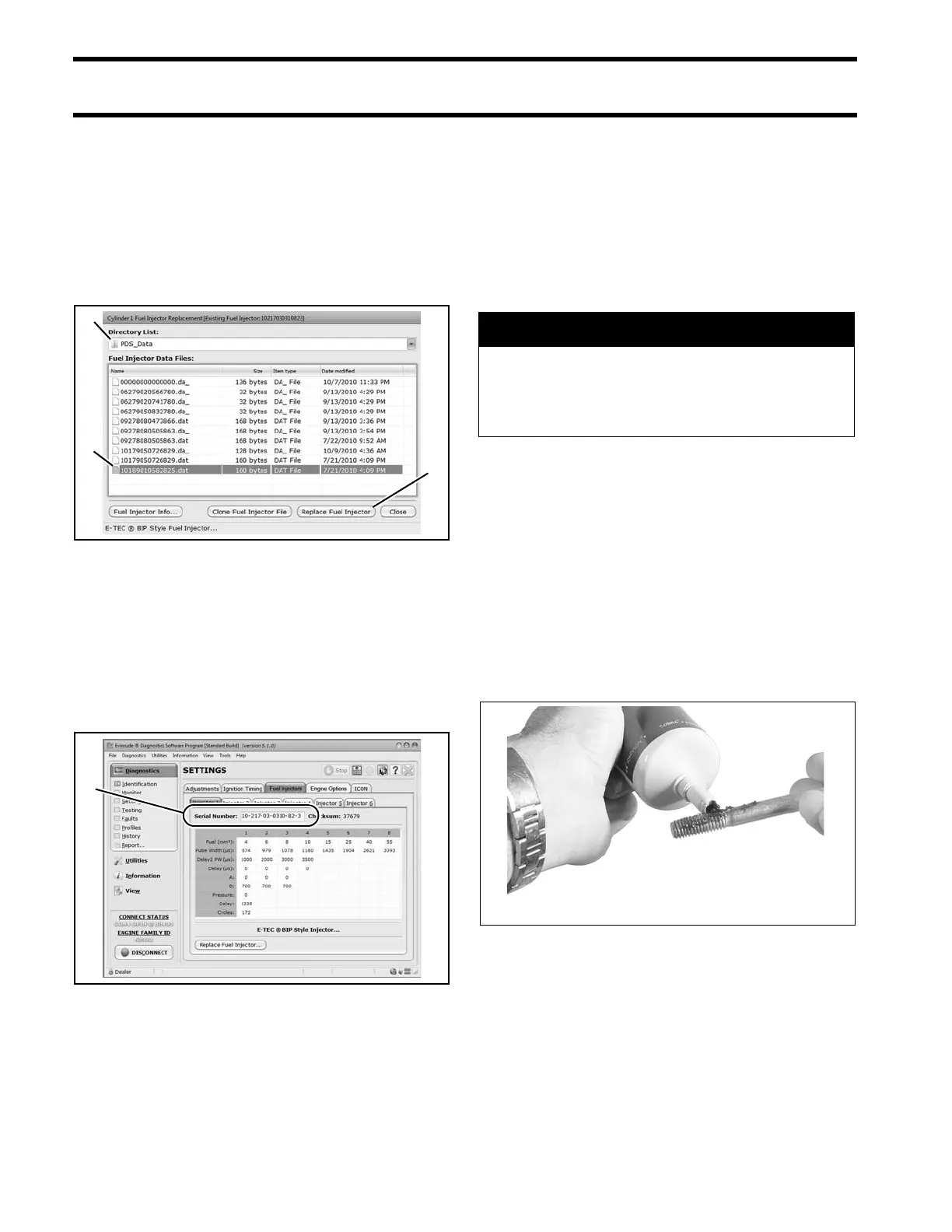

Use the drop down menu to navigate to the saved
coefficient file location.
The coefficient file name must ma tch the serial
number of the injector.
Select the correct file for the injector.
Select the Replace Injector button.
After the upload is complete, t he p rogram will
return to the Cylinder tab.
Make sure the serial nu mber displaye d o n the
screen matches the serial number printed on the
serial number label of the replacement injector.
Install Injector
The following ite ms and their ma ting surfaces
must be cleaned prior to reassembly:
• Injector
• Cylinder head
• Adapter
• Screws
• Threaded areas.
Place injector and insulator in th e proper cylinder
location.
IMPORTANT: Be careful not to pinch any wiring
or hoses during assembly.
Lubricate mou nting screw thre ads and under the
head of the screw with a light coat of Triple-Guard
grease. Install washers (on e per screw) on injec-
tor retaining scre ws. In stall screws and washers
through mounting flange of injector and into cylin-
der head.
1. Navigation menu
2. Injector coefficient file
3. “Replace Injector” button
008573
1. Serial number 008568A
A CAUTION
All injector components must be clean to
ensure correct torque tightening specifi-
cations. To prevent fuel leakage, carefully
follow these installation instructions.
002316
