MIDSECTION
STERN BRACKET, 40 – 60 HP MANUAL TILT
11

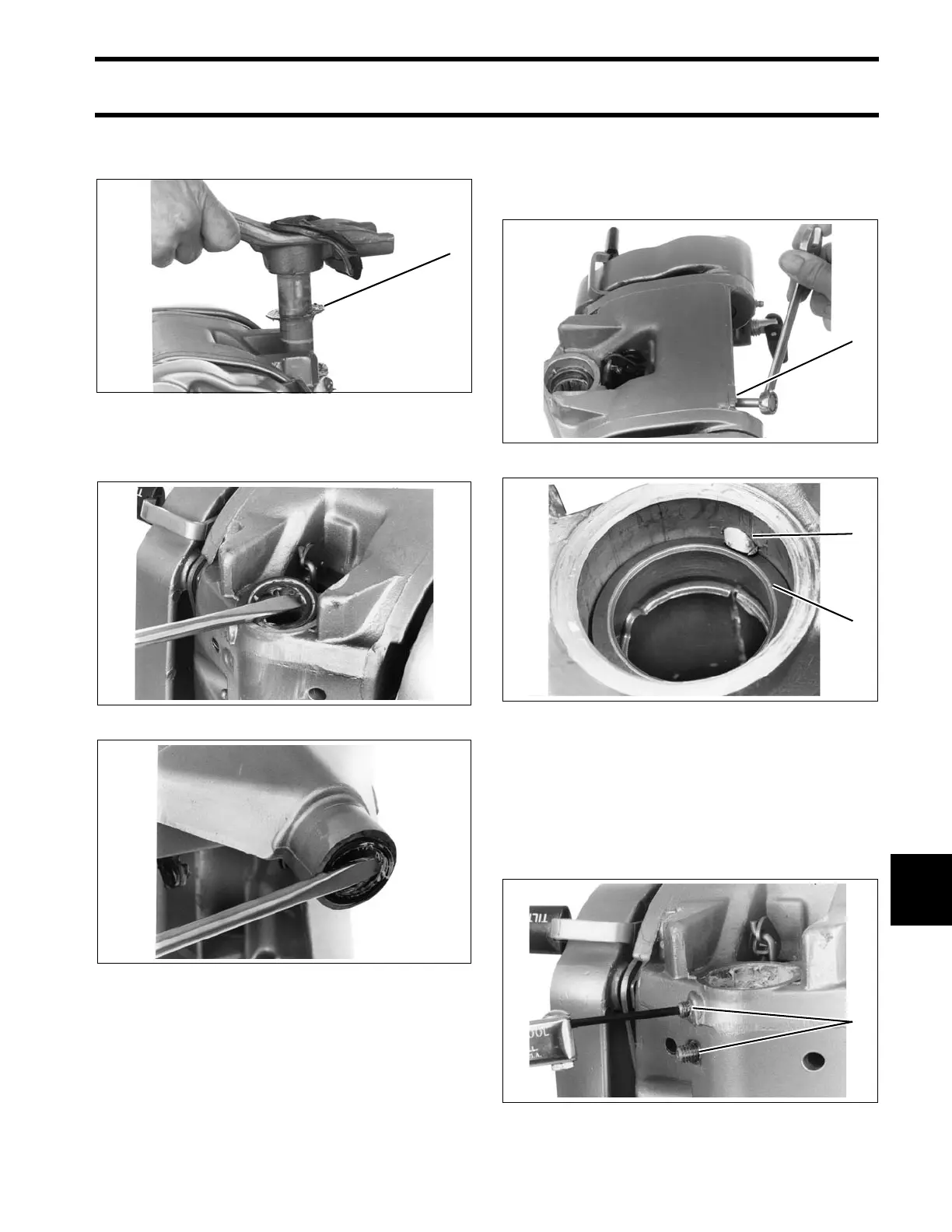

Slide the pivot sha ft and upp er thrust washer out
of the swivel bracket.
Use an appropriate tool to pry the upper and lower
seals from the swivel bracket.
Loosen t he ste ering friction screw while pu shing
outward on the steering friction p in. When the pin
is flush with the inside surface of the ca sting,
remove the steering friction thrust ring.
Tighten the ste ering friction screw until the ste er-
ing friction pin can be removed. Then, remove the
steering friction screw.
Remove the two set screws from the swivel
bracket.
1. Upper thrust washer COA2956
COA2957
COA2958
1. Steering friction screw COA2959
1. Steering friction pin
2. Steering friction thrust ring
COA2988
1. Setscrews COA2961
