TILLER HANDLE SERVICE – LONG HANDLE

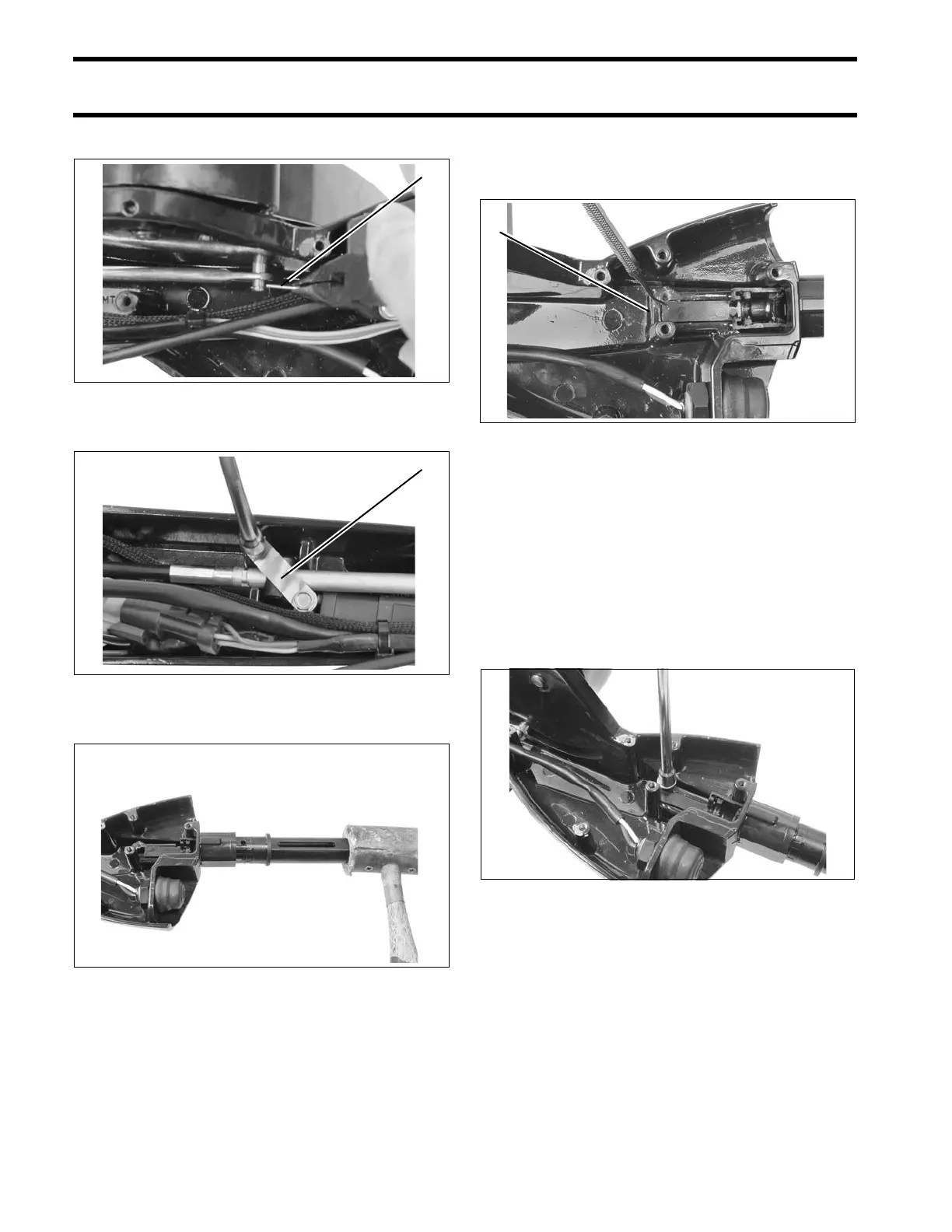

Install shift cable on shift pin with a new cotter pin.
Install shift cable retainer on shift cable trunnion.
Use a soft-faced mallet to install the inner handle.
Secure tab of the inner handle into the outer han-
dle. Tab must be flush with the back of the flange
and top of tab must be flush with top of flange.
Apply Nut Lock o n t he screw threads, install t he
washer and screw.
IMPORTANT: Turn se lf-tapping screw counter-
clock-wise until th reads of screw en gage threads
of screw boss. Failure to follow this procedure will
damage th e screw bo ss th reads. Once threads
are engaged, tighten screw so that there is no
space between tab, washer and screw. Top of tab
MUST be flush with top of flange.
1. Cotter pin 006720
1. Shift cable retainer 006721
006680
1. Back of flange 006682
006681
