Evinrude E-tec 75 HP - Page 285

283
MIDSECTION
TILLER HANDLE SERVICE – LONG HANDLE
11

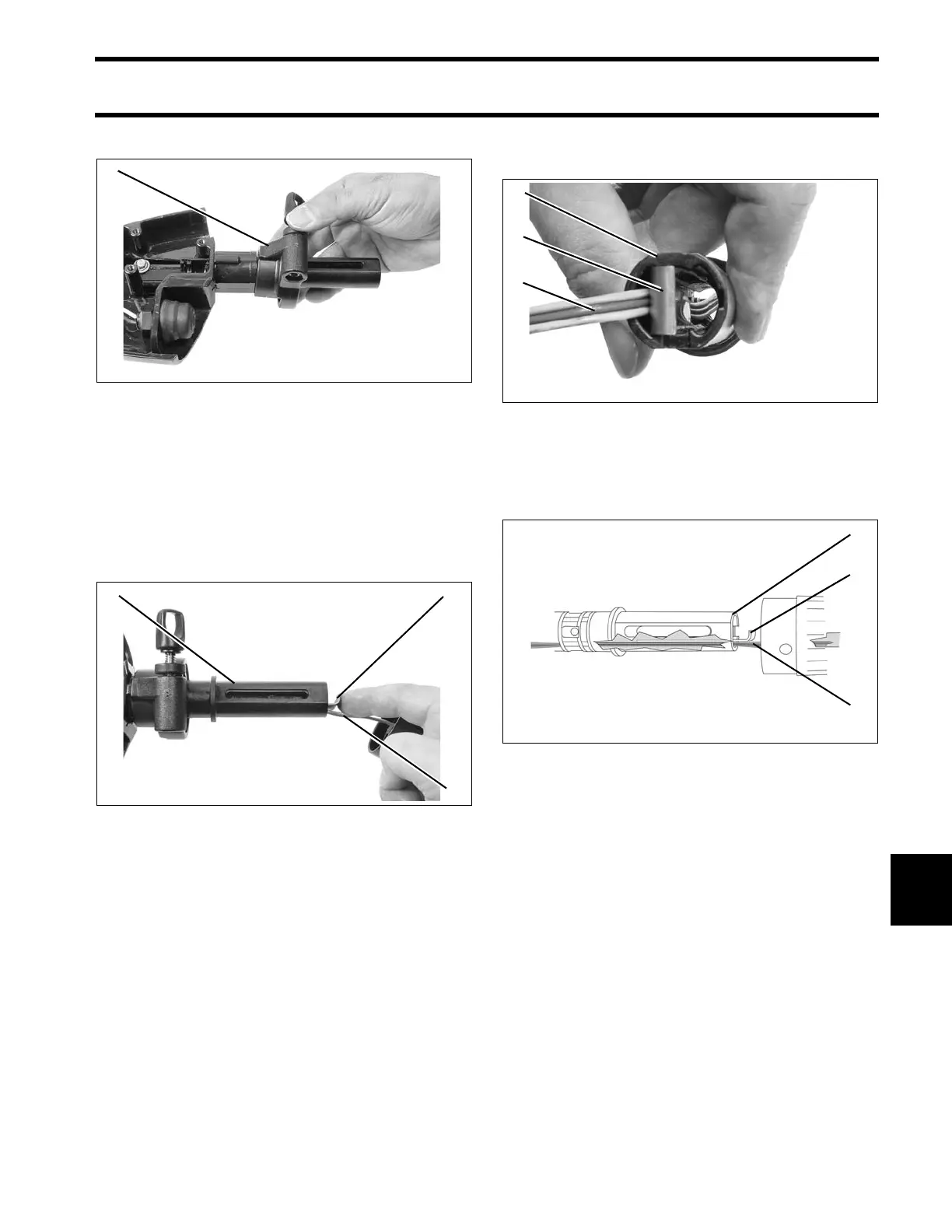

Install the throttle control plate on outer handle.
Install trim switch wiring t hrough in ner steering
handle.
IMPORTANT: Trim switc h wiring m ust NO T be
twisted through the throttle twist grip or inner tiller
handle / wire guide.
Insert wire guide into inner steering handle.
Wire guide sho uld slide easily into place. If any
binding is felt, inspect trim switch wirin g for twist-
ing. If wire guide is forced into place, it WILL dam-
age trim switch wiring.
Make sure trim switch wi ring is NOT twiste d
before proceeding.
1. Throttle friction control 006671
1. Inner tiller handle
2. Wire guide
3. Trim switch wires
006726
1
2
3
1
1. Inner tiller handle
2. Wire guide
3. Trim switch wires
006684
1. Inner tiller handle
2. Wire guide
3. Trim switch wires
006675
2
3
1
2
3
1
2
3
