MIDSECTION

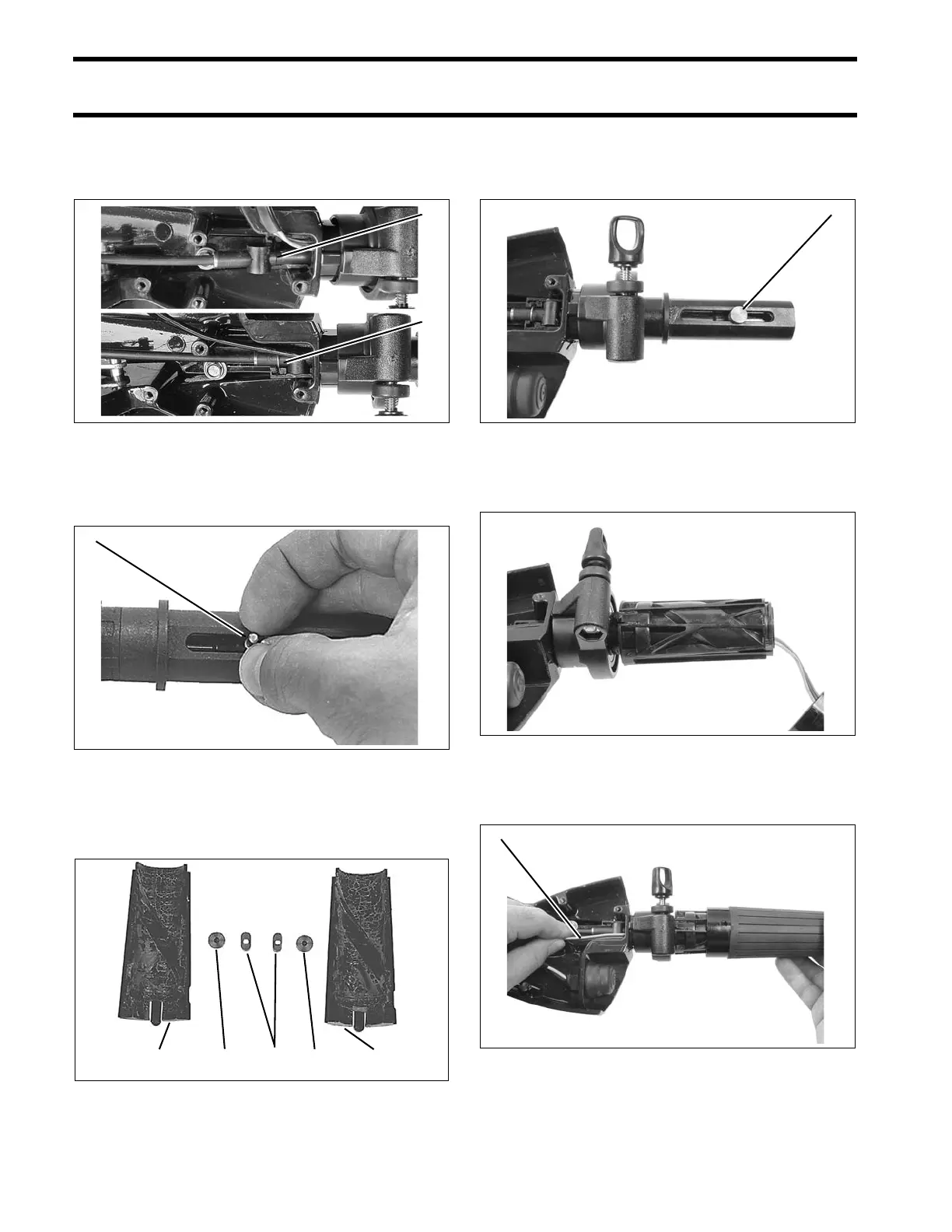

TILLER HANDLE SERVICE – LONG HANDLE
Install the handle en d of the th rottle ca ble. Snap
the th rottle cable tru nnion into the recess in the
handle. Install the retainer clip.
Push the t hrottle cable pin throu gh the end of the
throttle cable.
Lubricate end of the pin, guides, rollers, helix
halves, an d inne r handle guide slot with Moly
Lube.
Place th e gu ides over the roller p in a nd into t he
slots of the inner handle. Place the rollers on t he
ends of the roller pin.
Assemble the helix halves on the handle and slide
the grip over the helix.
Carefully pull trim switch wires through inner tiller
handle as twist grip assembly is installed.
Install t rim switch connector. Refe r to CONNEC-
TOR SERVICING on p. 116.
1. Throttle cable trunnion
2. Retainer
006683
1. Pin 006712
1. Helix halves
2. Rollers
3. Guides
COA2674
1. Roller 006670
006718
1. Trim switch wiring 006677
