308
GEARCASE SERVICE, 40 – 65 HP MODELS
SHIFTER, BEARING AND SEAL SERVICE

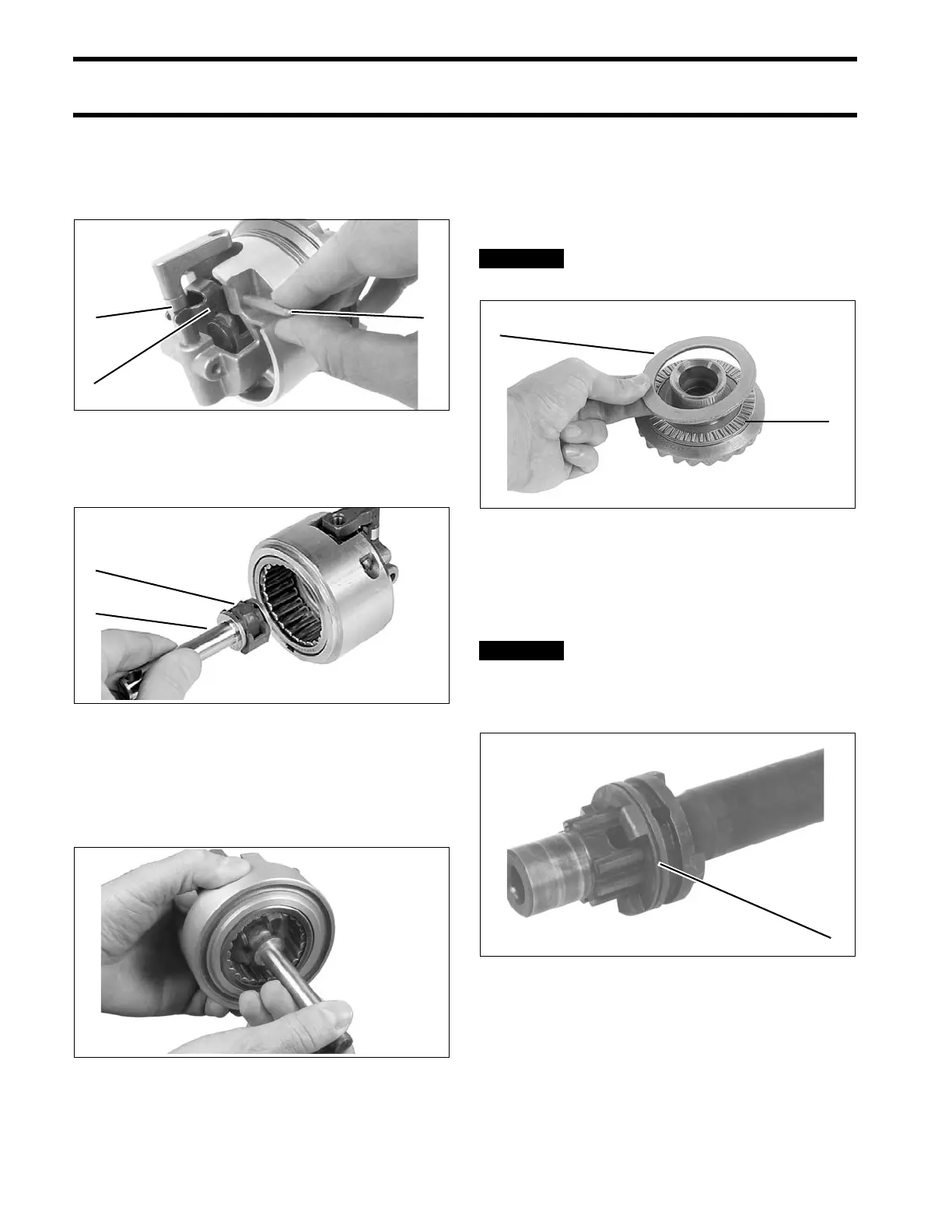

With shif ter detent in NEUTRAL , inst all arms of
shift lever int o det ent slot s. Alig n th e pivot holes
and insert the ret aining pin. Push shifter det ent
down.
Rest the cradle on the shift shaft.
Place the shift lever arms into the recesses of the
shift cradle. Pull shifter dete nt back up to NEU-
TRAL position to hold the cradle and shaft in posi-
tion.
Coat thrust bearing and thrust washer with Needle
Bearing grease. Place the bearing on the ba ck of
the gear. Set the washer on top of the thrust bear-
ing. Insert the ge ar, bearing, and washer into t he
bearing housing.
Bearing and washer must be
installed in the correct order.
Align holes in the clutch dog with slot in the pro-
peller shaft. Install the clutch dog with g rooved
end toward the forward end of the shaft.
The clutch dog is not symmetrical.
If installed backward, it will not fully engage
and will immediately damage itself and the
gears.
1. Shifter detent
2. Shift lever
3. Pin, shift lever
DSC02449
1. Cradle
2. Shift shaft
4512
001219
1. Thrust bearing
2. Thrust washer
DSC02297
1. Grooved end COA3591
