DMP 128 FlexPlus • Audio Control Panels 106
button labeled OFF is highlighted (yellow). When a button is highlighted, it is selected for
configuration.
6. From the Control Type drop-down (see figure 168,
4
below), select either:
• Fixed for the OFF button to unmute all output.
• Follow Selector for the OFF button to unmute a group defined by a selector
button.
If Fixed was chosen:
a. From the Mute Master drop-down (
5
), select the mute group containing all
output channels.
If Follow Selector was chosen, the button is fully configured.
7. From the panel graphic on the left side of the dialog box, select the mute button labeled
ON (
6
).
8. From the Control Type drop-down (
7
), select either:
• Fixed for the ON button to mute all output.
• Follow Selector for the ON button to mute a group defined by a selector button.
NOTE: The same control type chosen for the OFF mute button should be chosen for
the ON mute button.
If Fixed was chosen:
a. From the Mute Master drop-down (
8
), select the mute group containing all
output channels.
If Follow Selector was chosen, the button is fully configured.

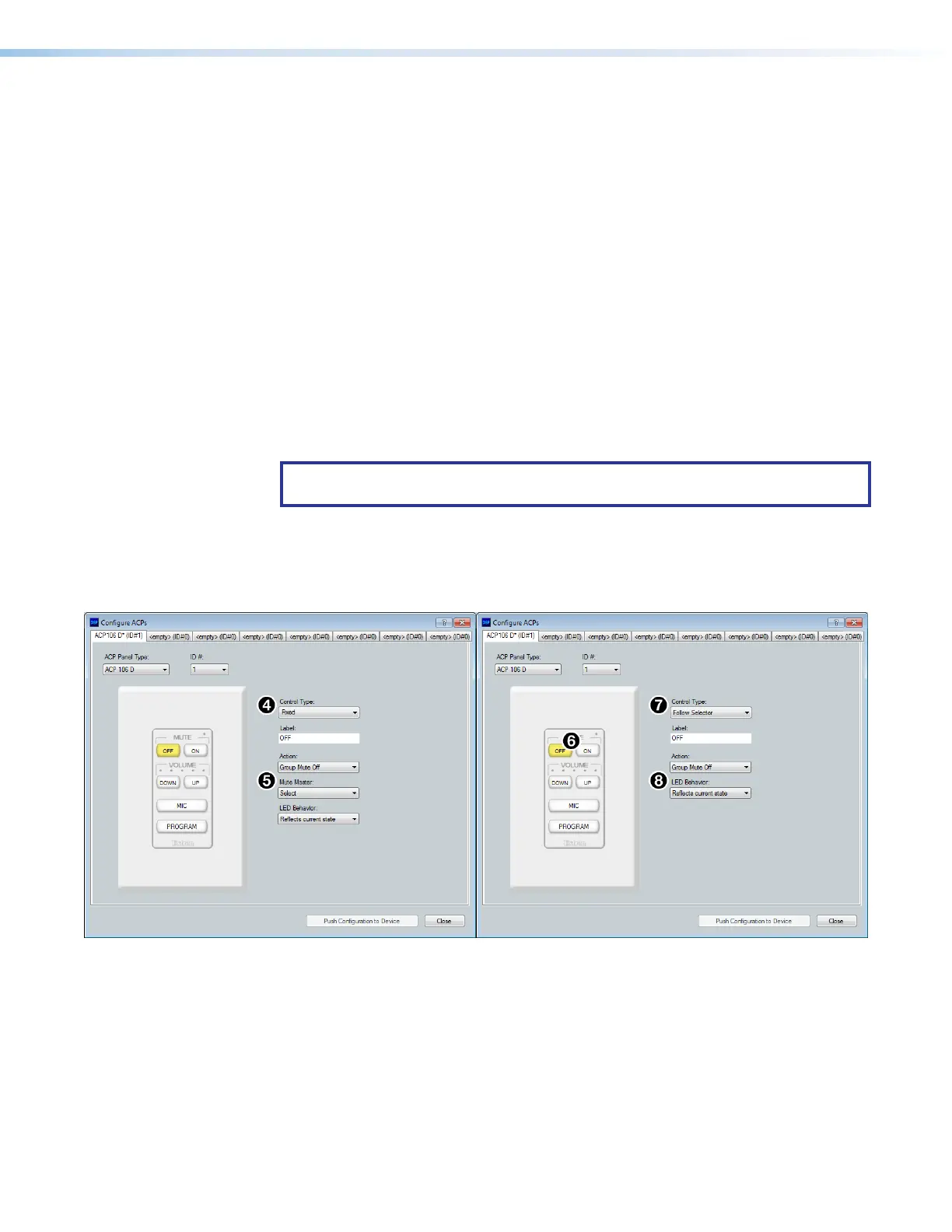

Figure 168. Configuring Mute Off and Mute On Buttons
9. From the panel graphic on the left side of the dialog box, select the volume button
158 Configuring Mute Off and On
