DMP 128 FlexPlus • DSP Configurator Software 30
Input Dynamics Blocks
Double-click the Dynamics block to open the dynamics drop-down menu.

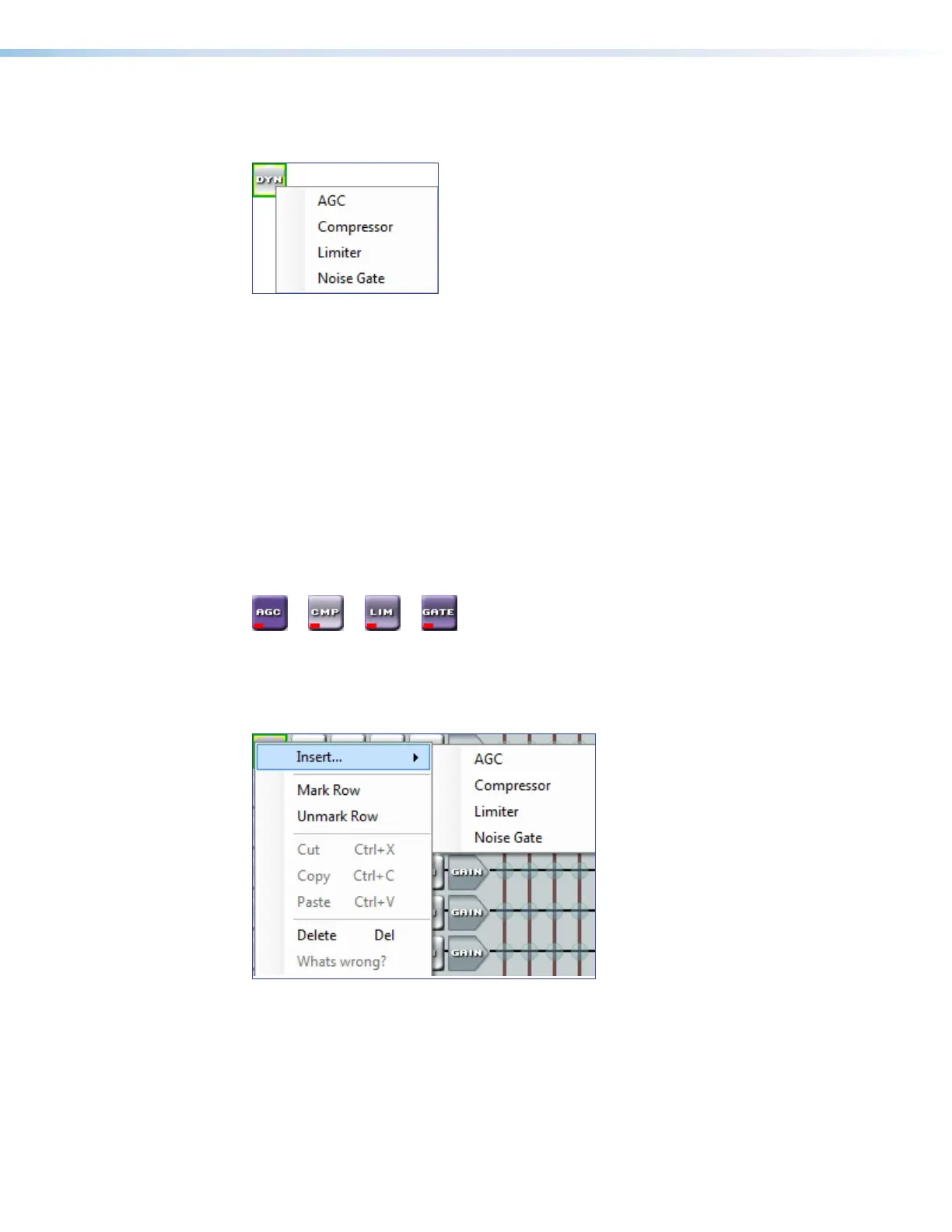

Figure 49. Dynamics Block and Drop-Down Menu
From the
Dynamics drop-down menu, four types of dynamics processors are available.
Select a dynamics processor type to insert it into the Dynamics block.
There are two Dynamics blocks available per mic/line input channel. Each block can be
configured with any of the processor types.
The four types of dynamics processors available are:
• AGC (Automatic Gain Control) on the next page
• Compressor on page32
• Limiter on page33
• Noise Gate on page34
Once a dynamics processor is inserted, double-click the dynamics block icon to open the
corresponding dialog box.
Figure 50. AGC, Compressor, Limiter, and Noise Gate Icons
If a dynamics processor has been inserted and needs to be changed to a different dynamics
processor, right-click the dynamics block, hover over Insert, and select a new processor
to insert it (see figure 51 below).
Figure 51. Changing Dynamics Processors
figure 41. Dynamics Block and Drop Down Menu
figure 42. Dynamics Icons
figure 43. Changing Dynamics Processor
