DMP 128 FlexPlus • Audio Control Panels 103
Create the following gain and mute groups from the Configure Groups dialog box (see
Configuring Groups on page70).
• Mute and Gain groups for all microphone channels.
• Mute and Gain groups for all program channels.
• Mute and Gain groups for each individual program source.
• Mute group for all output attenuation blocks.
ACP 100 Configuration Example
1. From the DMP 128 FlexPlus main workspace in DSP Configurator, select
Tools > Configure ACP Panels. The Configure ACPs dialog box opens.
2. Select an empty tab from the top of the dialog box to build a new configuration (see
figure 164,
1
below).
3. From the ACP Panel Type drop-down, select ACP 100 (
2
). The Configure ACPs
dialog box populates with an ACP 100 graphic.
4. From the ID # drop-down menu (
3
), select the ID number that corresponds with the
bus ID set on the ACP 100 rear panel DIP switch assembly (see the ACP 100 Setup
Guide for information on setting the bus ID).
5. In the panel graphic on the left side of the Configure ACPs dialog box, the button
labeled MIC is highlighted (yellow). When a button is highlighted, it is selected for
configuration.
6. From the Control Type drop-down, choose Selector-Vol/Mute (
4
). On the right
side of the Configure ACPs dialog box, more configuration options appear.
a. From the Volume Master drop-down (
5
), select the gain group containing all
microphone source channels. This group must be created from the Configure
Groups
dialog box before it can be selected from the drop-down (see Configuring
Groups on page70).
b. From the Mute Master drop-down (
6
), select the mute group containing all
microphone source channels.

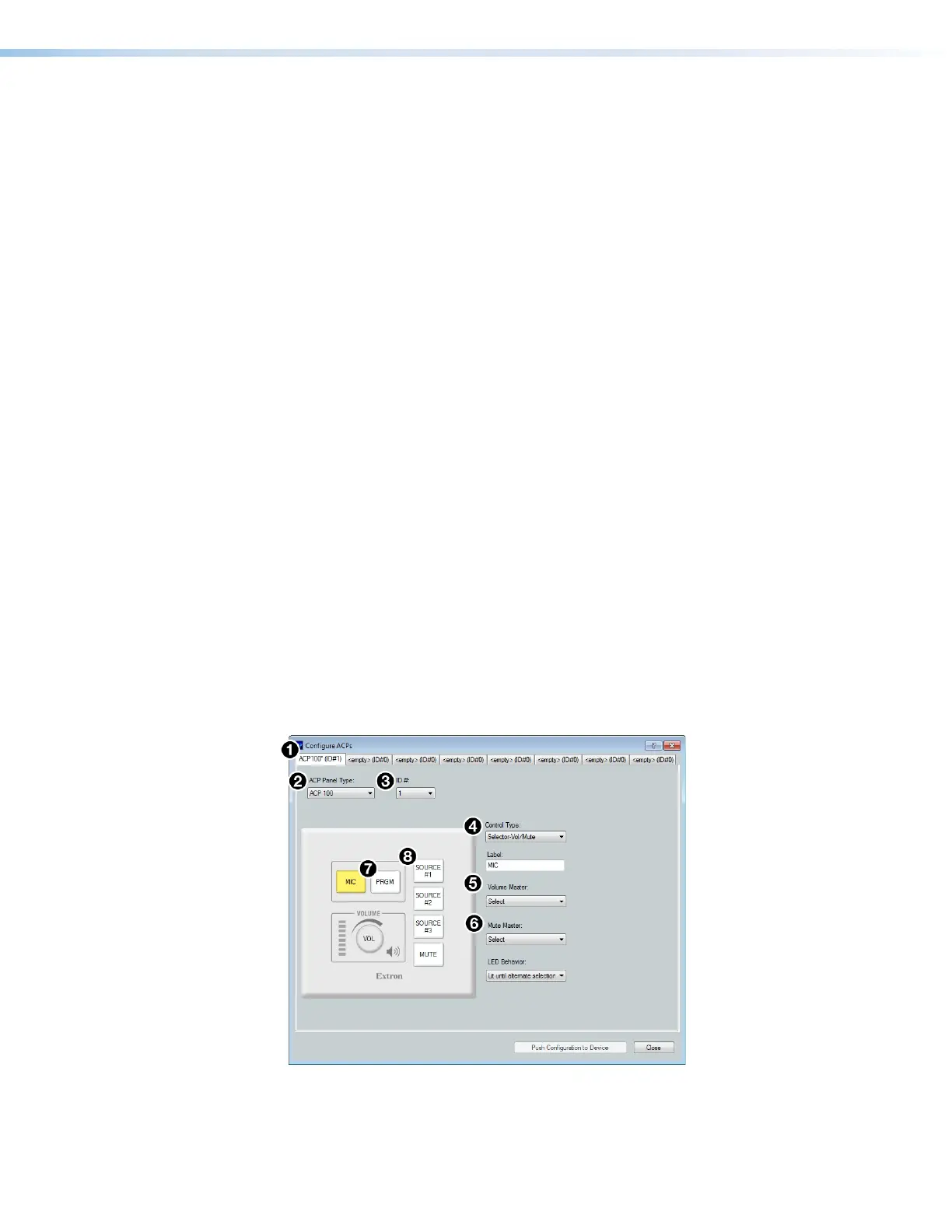

Figure 164. Starting ACP 100 Configuration
7. From the panel graphic on the left side of the dialog box, select the button labeled PRGM
(see figure 164,
7
above).
154 Starting ACP 100
