DMP 128 FlexPlus • Dante Controller 113
9. Click Yes (
4
) to confirm the new name, then close the Device Configuration dialog
box. The new name is written to the Dante interface of the DMP 128 FlexPlus. Repeat
as necessary for all devices.
NOTE: The device name assigned in Dante Controller only applies to the Dante
interface and does not affect the device name recognized in DSP Configurator.

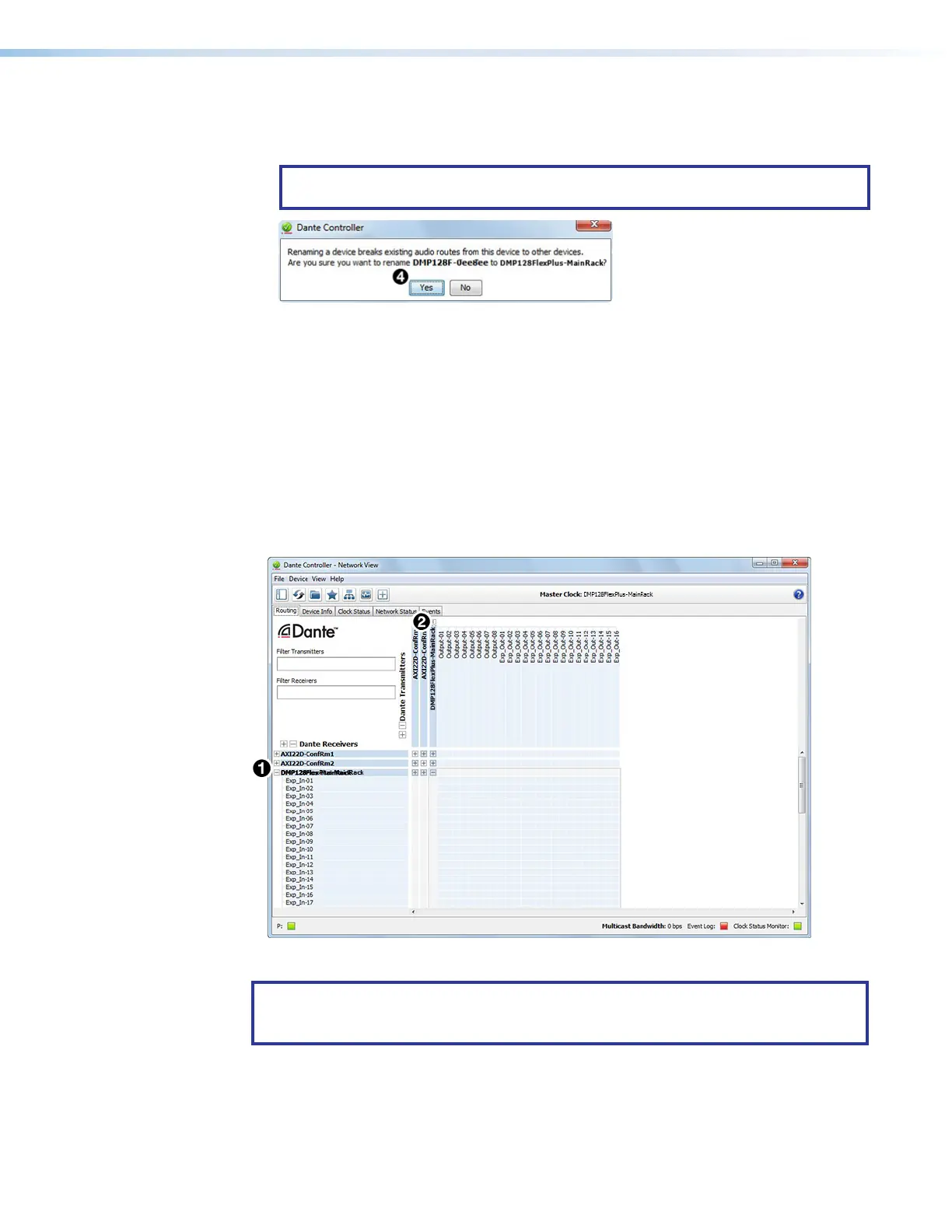

Figure 175. Rename Device Confirmation Dialog Box
Renaming a Receiver or Transmitter
In addition to renaming devices, individual receiver and transmitter channels can be
renamed in Dante Controller. To better organize the various receivers and transmitters,
it is recommended each receiver and each transmitter be named using a description of
the device they belong to, the location of the device, or the purpose of the receiver or
transmitter.
To view the receiver or transmitter channels in Dante Controller, click the + sign next to the
receiver or transmitter device name to expand it. The + sign becomes a – sign when the
device is expanded (see figure 176,
1
).
Figure 176. Expanded Device View — Input and Output Names
TIP: To simplify setup and operation of large matrix systems, rename the receiver and
transmitter channels to better indicate the source at the transmitters or
receivers.
165 Rename Device Confirmation Dialog Box
166 Expanded Device View — Input and Output
