DMP 128 FlexPlus • DSP Configurator Software 23
Input Processing
The mic/line input processing chain in DSP Configurator is visually represented by a string of
blocks(see figure 38 below). Each block contains a specific processor or type of processor.
For example, the Input Gain block contains a fader to boost or attenuate incoming signal,
the Filter block contains several types of filters, and so on. Inputs 1 - 12 contain the
following signal chain:
1. Input Gain Block
2. Input Filter Block
3. Input AEC Block
4. Input Dynamics Blocks (2)
5. Input Delay Block
6. Input Ducking Block
7. Input Automix Block
8. Input Pre-Mixer Gain Block

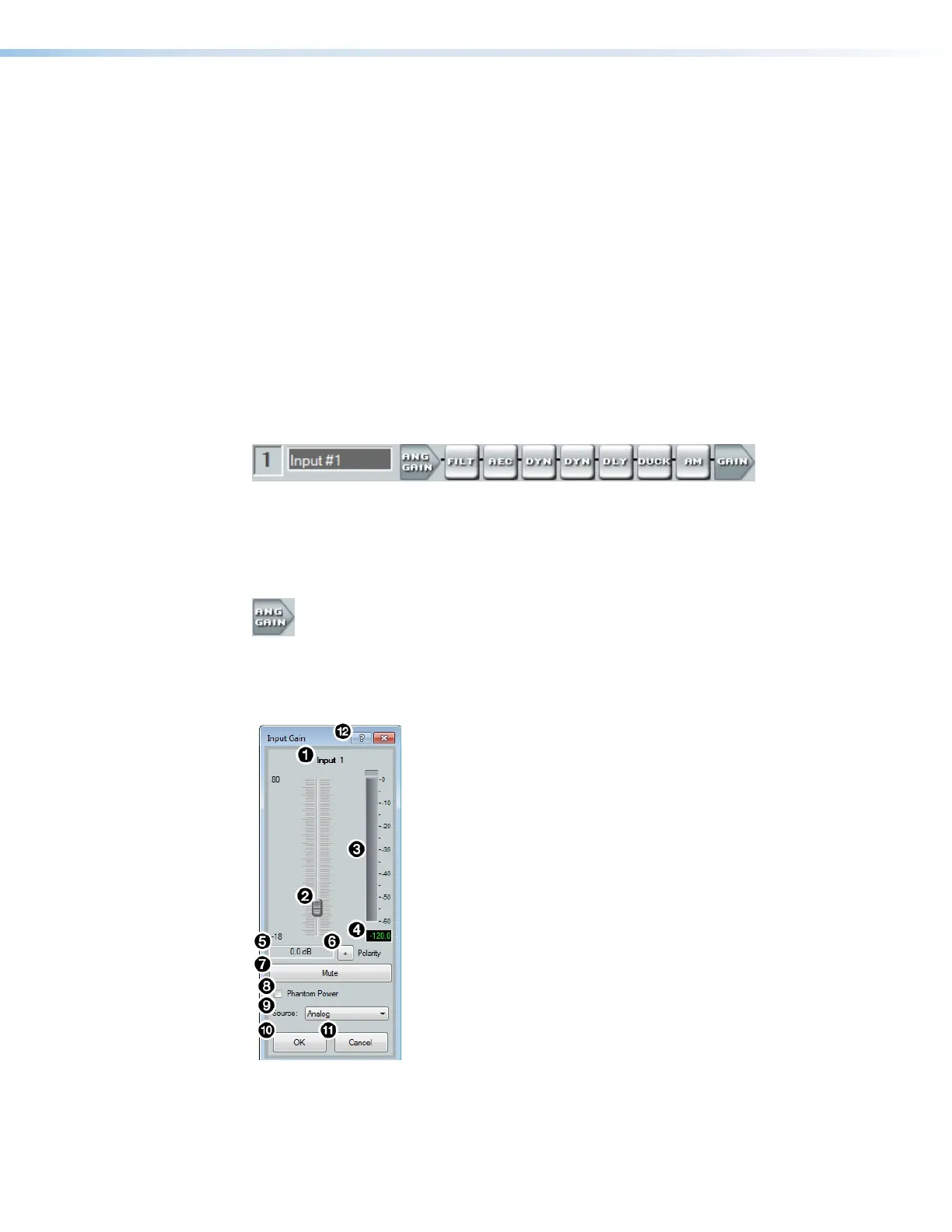

Figure 38. Input Processing Chain
Input Gain Block
Double-click the Input Gain block to open the Input Gain dialog box.
Figure 39. Input Gain Block
The Input Gain dialog box provides controls to configure the input gain stage of the input
processing path.
Figure 40. Input Gain Dialog Box
figure 30. Input Processing Chain For Inputs 1 - 8
figure 31. Input Gain Icon
figure 32. Input Gain Dialog Box
1
Input Name
7
Mute Button
2
Gain Fader
8
Phantom Power Check Box
3
dBFS Meter
9
Source Drop-Down Menu
4
dBFS Numeric Readout
¢
OK Button
5
Input Gain Text Field
£
Cancel Button
6
Polarity Toggle Button
¤
Input Gain Help Button
