Extron electronics DMP 128 FlexPlus User Manual

DMP 128 FlexPlus • DSP Configurator Software 60
Output Attenuation Block
Double-click the output Attenuation block to open the Attenuation dialog box.
Figure 101. Output Attenuation Block
The
Attenuation dialog box provides attenuation control for the selected output.

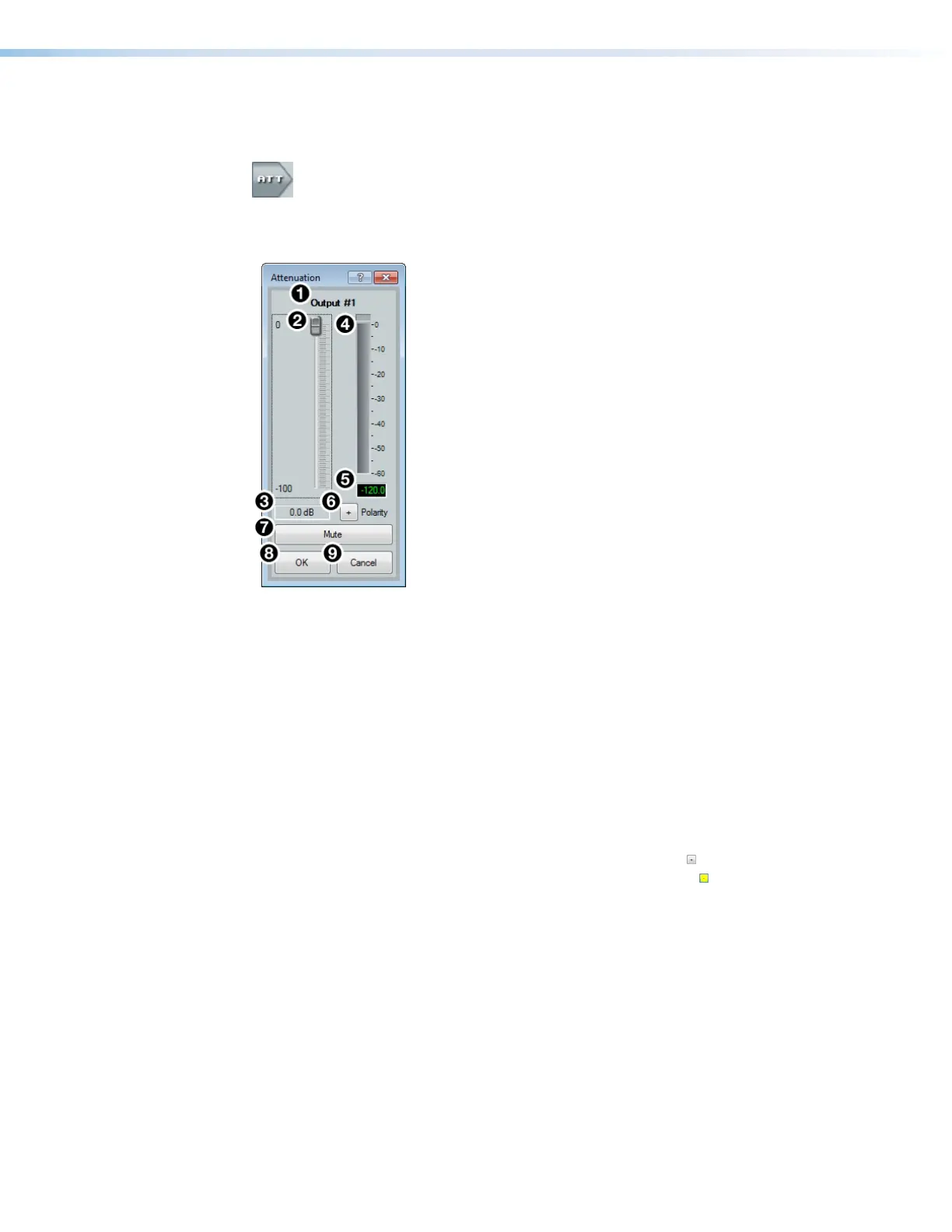

Figure 102. Attenuation Dialog Box
1
Output Name — This name changes to match the default or user defined output name.
2
Output Attenuation Fader — Click and drag the trim fader to provide up to 100dB of
attenuation. Click the trim fader and use the <Up Arrow> or <Down Arrow> to adjust
the fader up or down in 1 dB steps.
3
Output Attenuation Text Box — Allows the user to enter a gain or attenuation value in
0.1 dB steps.
4
dBFS Meter — Provides post-attenuation and pre-mute a readout of the output signal
level.
5
dBFS Text Readout — Displays a numerical readout of the output signal level.
6
Polarity Button — Click this button to invert the signal polarity of the selected output.
When the button displays the black + symbol on a gray field ( ), the polarity is normal.
When the button displays the black - symbol on a yellow field ( ), the polarity is
inverted.
7
Mute Button — Mutes the signal at the output stage.
8
OK Button — Confirms changes made to the contained parameters and closes the
Attenuation dialog box.
9
Cancel Button — Reverts any changes made to the contained parameters back to
their states when the current instance of the Attenuation dialog box was opened and
closes the dialog box.
figure 93. Output Attenuation Block
figure 94. Output Attenuation Dialog Box
1
Output Name
6
Polarity Button
2
Output Attenuation Fader
7
Mute Button
3
Output Attenuation Text Box
8
OK Button
4
dBFS Meter
9
Cancel Button
5
dBFS Text Readout
PRELIMINARY
PRELIMINARY
