DMP 128 FlexPlus • Configuration Tools 78
Macros
Macros are sets of actions that can affect the local DMP 128 FlexPlus and other Extron
products on the same TCP/IP network. They can be configured in Emulate or Live mode
via an Ethernet connection only, and they can be saved to a configuration file or pushed to
DMP128 FlexPlus internal memory. Macros are comprised of up to 32 actions that occur in
sequence to quickly configure a system for specific applications.

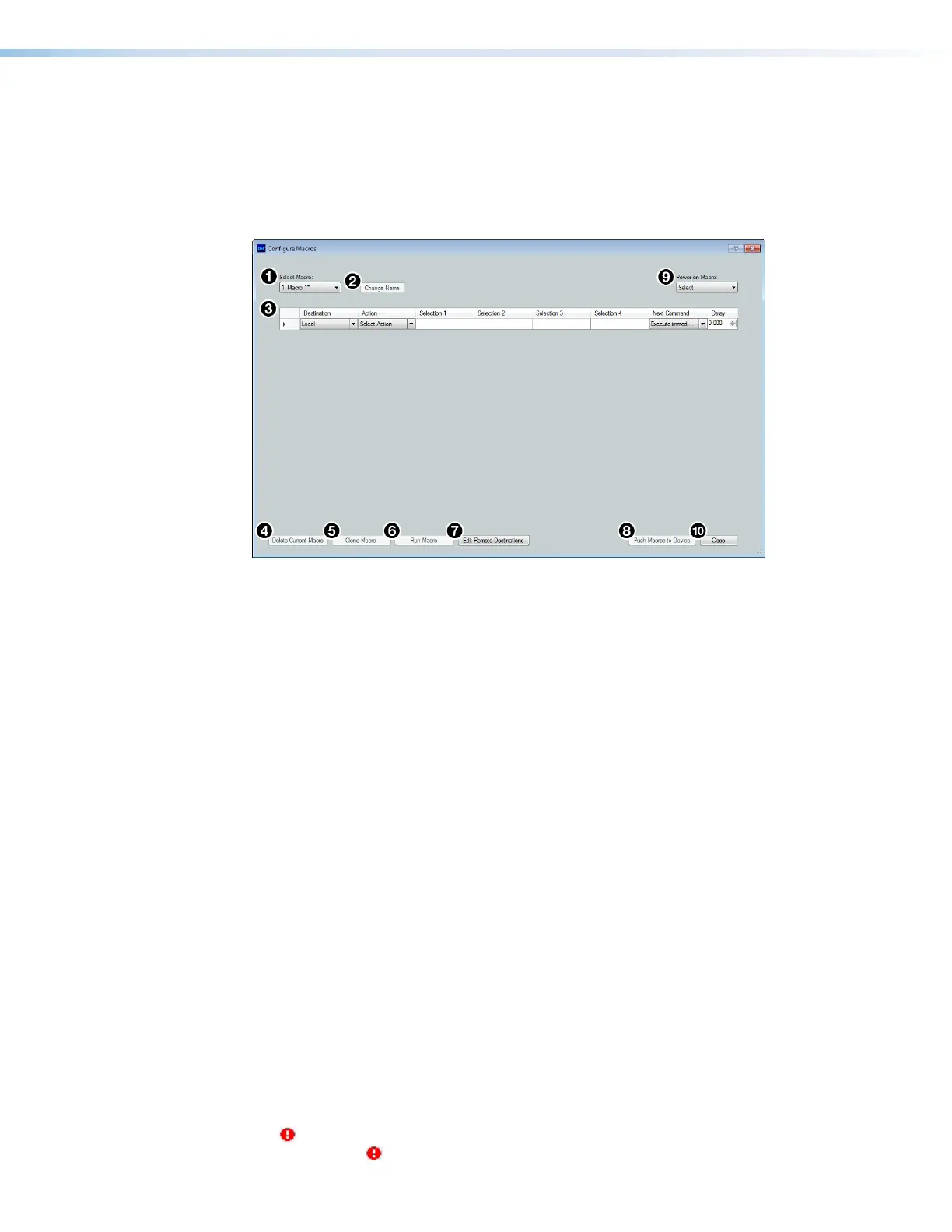

Figure 136. Configure Macros Dialog Box
1
Select Macro Drop-Down — Select an empty macro slot to configure or select an
existing macro to edit from this drop-down menu.
2
Change Name Button — Click this button to enter a new name for a previously
configured macro. Press <Enter> to confirm the macro name change.
3
Macro Configuration Form — Up to 32 actions can be configured in this form. When
one action is configured, a new line appears to configure the next action in the macro.
4
Delete Current Macro Button — Deletes the macro currently selected from the
Select Macro drop-down.
5
Clone Macro Button — Clones the currently selected macro to a new macro slot.
6
Run Macro Button — Runs the macro currently selected from Select Macro
drop-down, performing all of the configured actions in sequential order. This is only
available when connected to a DMP 128 FlexPlus in Live mode via the LAN or VoIP 1
port.
7
Edit Remote Destinations Button — Opens the dialog box to edit data for remote
devices being configured by the actions in a macro. Remote devices in the network
can also be added from this dialog box (see the Configure Macros topic in the
DSPConfigurator Help file). This is only available when connected in Live mode.
8
Push Macros to Device Button — Pushes all macros to a connected
DMP128FlexPlus. Once the macros are on the device, they can be run by control
systems or DSPConfigurator. This button is only available when connected Live to a
DMP 128 FlexPlus (see Live and Emulate Panel on page17).
9
Power-on Macro Drop-Down — Select an existing macro to run whenever the
DMP128FlexPlus is powered on.
¢
Close Button — Closes the Configure Macros dialog box, retaining macros that
have been created or edited. Actions that have not been completely configured show a
symbol to the left of the Destination field in the macro configuration form. Actions
showing the symbol are not saved when the dialog box is closed.
