DMP 128 FlexPlus • DSP Configurator Software 61
Aux Outputs
Eight Aux outputs (non-V-models) or eight Aux outputs (V-models only) are available in the
Aux Outputs panel. These outputs can be configured to route signal to a host computer as
USB audio via the rear panel USB audio port or to a VoIP network via a rear panel LAN port
(V-models only).

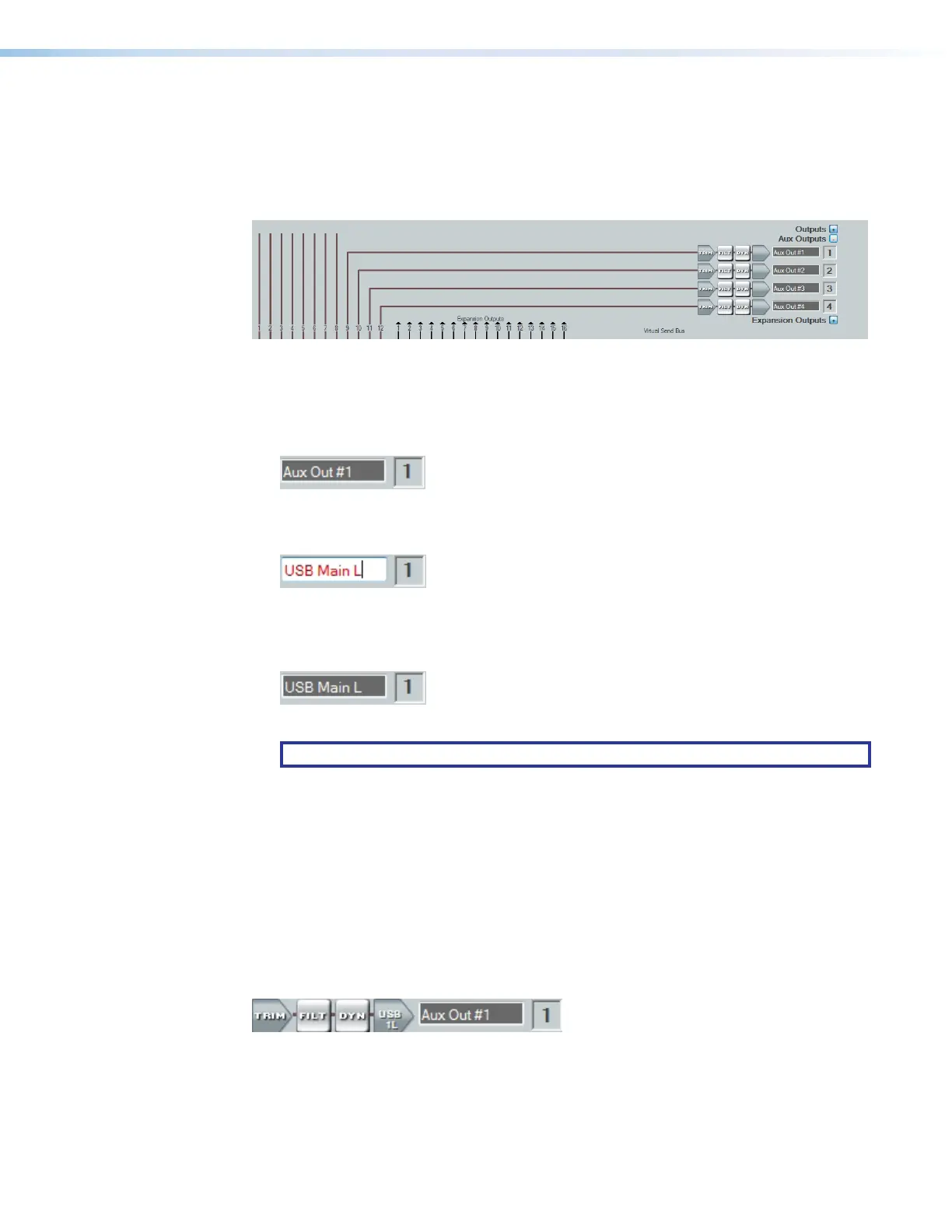

Figure 103. Aux Outputs Panel
Naming an Aux Output
1. Click the Aux output name field.
Figure 104. Aux Output Name Field
2. Delete the text and type the desired Aux output name.
Figure 105. New Aux Output Name
3. Press the <Enter> key or navigate away from the field to confirm and apply the new
output name. Press the <Down Arrow> to navigate to and highlight the next name field.
Figure 106. Renamed Aux Output
NOTE: Follow the same procedure to edit an Aux output name.
Aux Output Processing
The Aux output processing chain in DSP Configurator is represented by a string of blocks
(see figure 107 below). Each block contains a specific processor or type of processor. Each
Aux output contains the following processor chain:
1. Aux Output Trim Block
2. Aux Output Filter Block
3. Aux Output Dynamics Block
4. Aux Output Gain Block
Figure 107. Aux Output Processing Chain
figure 95. Aux Outputs Panel
figure 96. Aux Output Name Field
figure 97. New Aux Output Name
figure 98. Renamed Aux Output
figure 99.
Aux Output Processing Chain
