Configuring Groups
To create a new group:
1. Select Tools > Configure Groups to open the Configure Groups dialog box.
2. From the Select Group drop-down, select a group slot to configure (see figure 122,
1
below).
3. From the Select Control Type panel (
2
), expand a control type.
4. Choose which gain stage the control type affects.
5. From the Available Group Members panel, select the channels to be configured as
group members (
3
).
6. Click Apply (
4
).

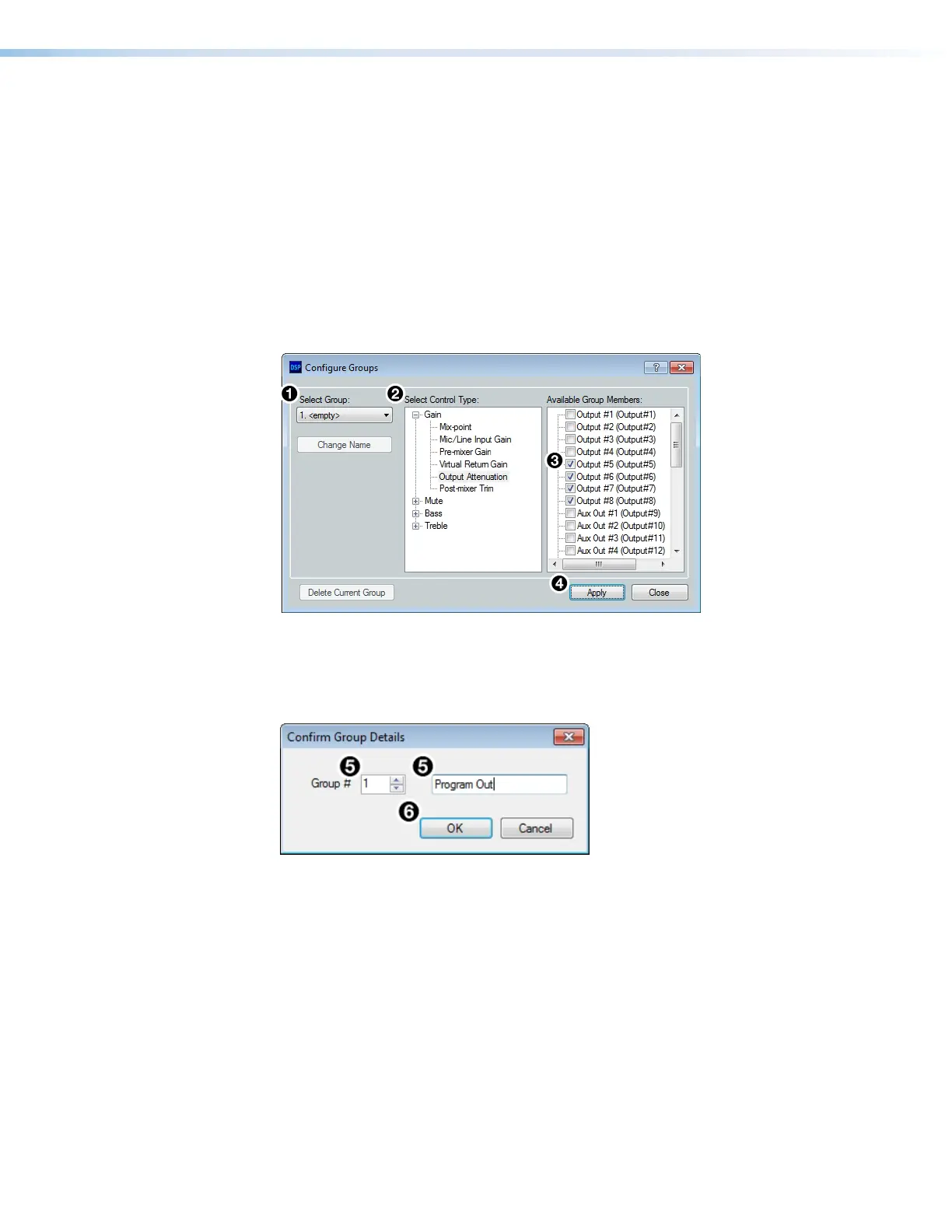

Figure 122. Configure Groups Dialog Box
7. Confirm the group number and name from the Confirm Group Details dialog box
(see figure 123,
5
below).
8. Click OK to confirm all details and create the group (
6
).
Figure 123. Confirm Group Details Dialog Box
figure 114. Configure Groups Dialog
figure 115. Confirm Groups Dialog
