DMP 128 FlexPlus • Configuration Tools 71
To edit an existing group:
1. Select Tools > Configure Groups to open the Configure Groups dialog box (see
figure 124 below).
2. From the Select Group drop-down (
1
), select an existing group to edit.
3. From the Select Control Type panel (
2
), expand a control type.
4. Choose which gain stage to edit.
5. From the Available Group Members panel (
3
), select or deselect channels that will
be members of the group.
6. Click Apply (
4
).
7. From the Confirm Group Details dialog box, the group number and group name can
be edited (
5
).
8. Click OK to confirm the group details (
6
).
9. When the Overwrite Group dialog box opens, click OK to confirm the changes made
to the group.
To edit only a group name or group number:
1. Choose the group from the Select Group drop-down (
1
).
2. Click Change Name (
7
).
3. From the Change Group Name dialog box, enter the new group number or group name
into the respective fields (
5
).
4. Click OK (
6
).

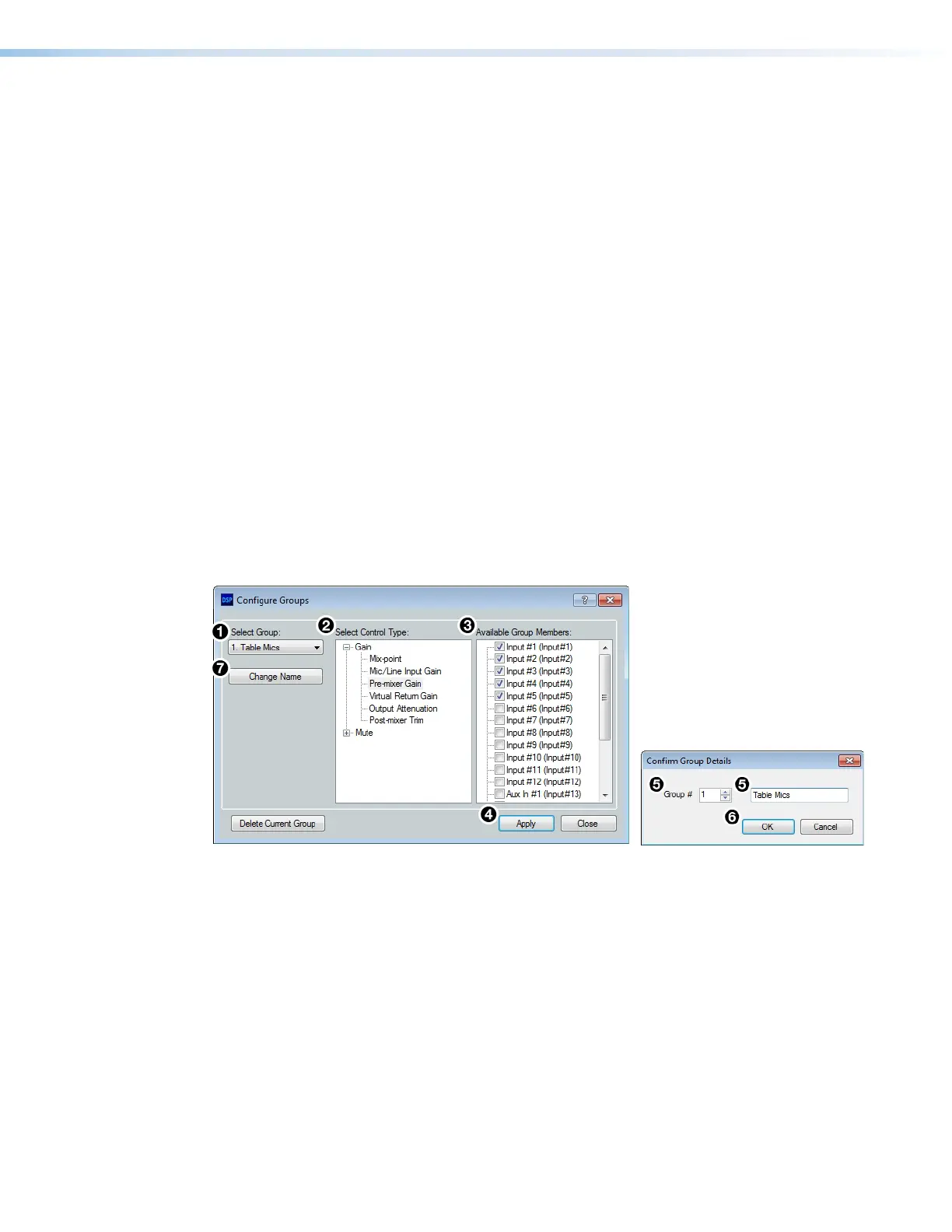

Figure 124. Editing a Group
figure 116. Editing a Group Name
