DMP 128 FlexPlus • Web Pages 180
System Page
The System page allows users to export VoIP configurations to a JSON file. These
configuration files are used to return DMP 128 FlexPlus devices to a known VoIP
configuration. Additionally, partial configurations (individual JSON fields) can be applied using
the import tool.

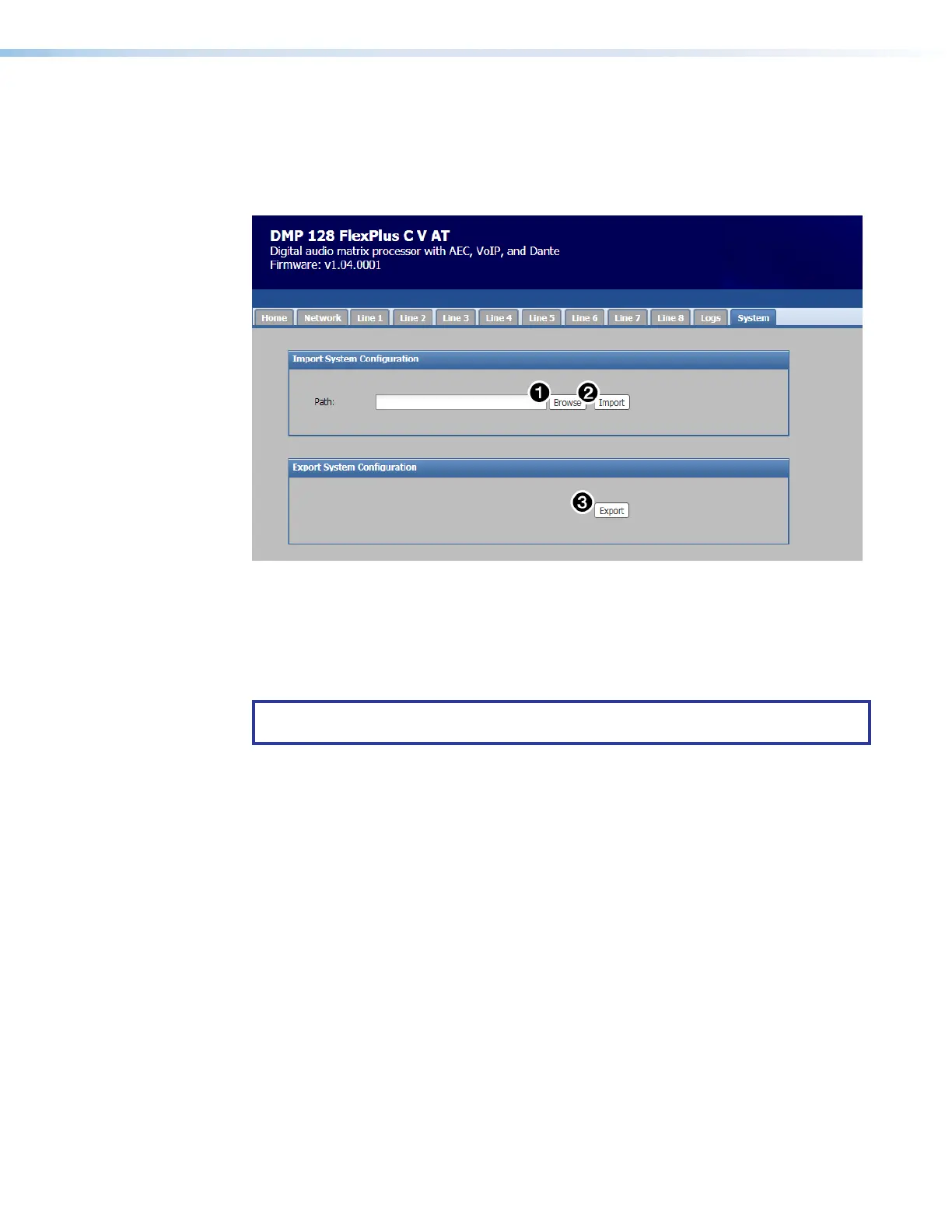

Figure 206. VoIP System Page
To import a system configuration:
1. Click Browse (
1
) in the Import System Configuration panel.
2. Locate the system configuration file to be imported.
3. Click Import (
2
).
NOTE: It may take up to 30 seconds to import settings. A dialog box opens to indicate a
successful import.
To export a system configuration:
1. Click Export (
3
) in the Export System Configuration panel.
2. The exported JSON file is automatically stored in the default download directory of the
web browser.
Special Characters
The HTML language reserves certain characters for specific functions. The device does
not accept the following characters as part of preset names, device names, passwords, or
locally create file names:
{space} + ~ , @ = ‘ [ ] { } < > ` “ ; : \ | ?
figure 195. VoIP System
