DMP 128 FlexPlus • Remote Control and Configuration 127
Using the Command and Response Tables
SIS commands consist of a string (one or more characters per command field). No special
characters are required to begin or end a command sequence. When the DMP 128 FlexPlus
determines a command is valid, it executes the command and sends a response to the host
device. All responses end with a carriage return and a line feed, signaling the end of the
response character string.
When programming, certain characters are more conveniently represented by their
hexadecimal rather than ASCII values. The table below shows the hexadecimal equivalent of
each ASCII character:
•
Space
l
I

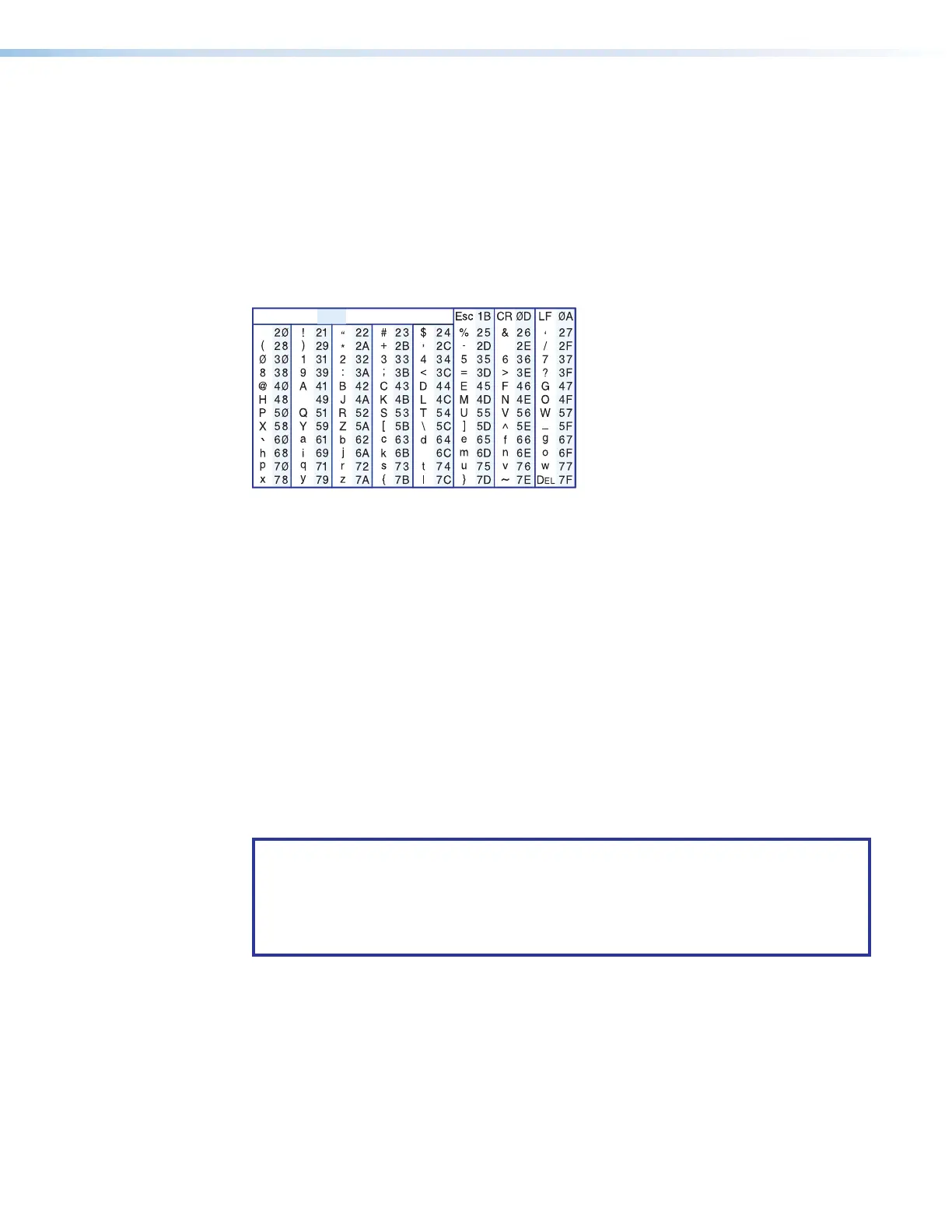

ASCII to HEX Conversion Table
Figure 189. ASCII to Hex Conversion Table
The Command and Response tables list valid ASCII commands, the DMP 128 FlexPlus
responses to the host, and descriptions of the command functions with the results of
executing the commands.
Symbol Definitions
]
= Carriage return (with line feed)
}
= Carriage return (no line feed)
•
= Space character
|
=
Pipe (can be used interchangeably with the
}
character)
E
= Escape key
W
=
Can be used interchangeably with the
E
character.
NOTES:
• Only instances marked with a • character require a space. Any spaces between
characters in the command and response tables are only inserted for ease of
reading.
• Unless stated otherwise, SIS commands are not case sensitive.
figure 179. ASCII to Hex
To Next Page
