DMP 128 FlexPlus • Configuration Tools 82
To paste a macro action:
1. Right click the box furthest to the left in the action list item where the action is to be
pasted.
2. Select Paste. The action is copied to the list item. Any existing action data is
overwritten.
To insert a macro action:
1. Cut or copy a macro action to be inserted.
2. Right click the box furthest to left in the action list item directly below where the action in
the clipboard is to be inserted.
3. Select Insert. The action is inserted from the clipboard above the action that was right
clicked in step 1.
To delete a macro action:
1. Right click the box furthest to the left in the action to be deleted.
2. Click Delete.
Configure USB Control
The Configure USB Control option opens the Configure USB Control dialog.
This dialog allows for Windows communication volume and mute controls and Windows
playback volume and mute controls to affect levels and mute status in the connected Extron
USB audio processor.

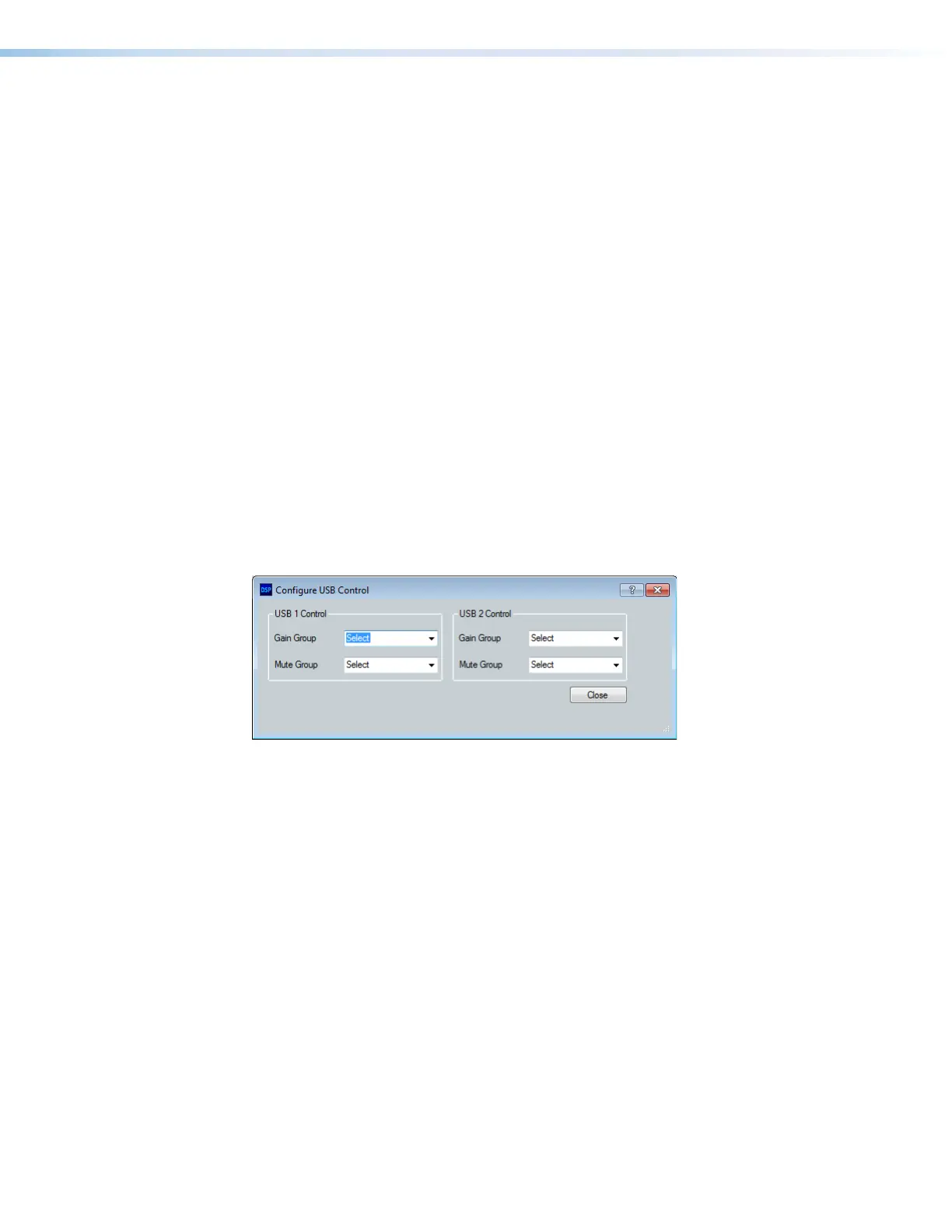

Figure 139. Configure USB Control Dialog
Creating Groups
In order for to assign control groups in the Configure USB Control dialog, the groups
must first be created using the Aux Inputs (see Aux Inputs on page41).
The following groups must be created with the listed members:
• USB communications gain group
• USB 1 L
• USB 1 R
• USB communications mute group
• USB 1 L
• USB 1 R
• USB playback gain group
• USB 2 L
• USB 2 R
