DMP 128 FlexPlus • DSP Configurator Software 40
Automixer Gate Monitoring
Automixer gate monitoring allows the user to track when an automixer gate opens or closes.
This feature can be enabled by checking the Monitor Gate checkbox in an Automix dialog
(figure 64,
7
on the previous page). When automixer gate monitoring is enabled for a
channel, an unsolicited message is sent when the gate has opened or closed. The response
will include the Automixer OID, gate open or closed status, and the signal level immediately
after the status has changed (see Automixer Gate Monitoring on page147 for SIS
response syntax).
Comparing the automixer gate threshold setting to the gate status in the response will
indicate whether the automixer gate has opened or closed. When the gate status in the
response is 1024 or greater, the gate has opened, and when the gate status in the response
is less than 1024, the gate has closed.
Input Pre-Mixer Gain Block
Double-click the pre-mixer Gain block to open the Pre-mixer Gain dialog box.

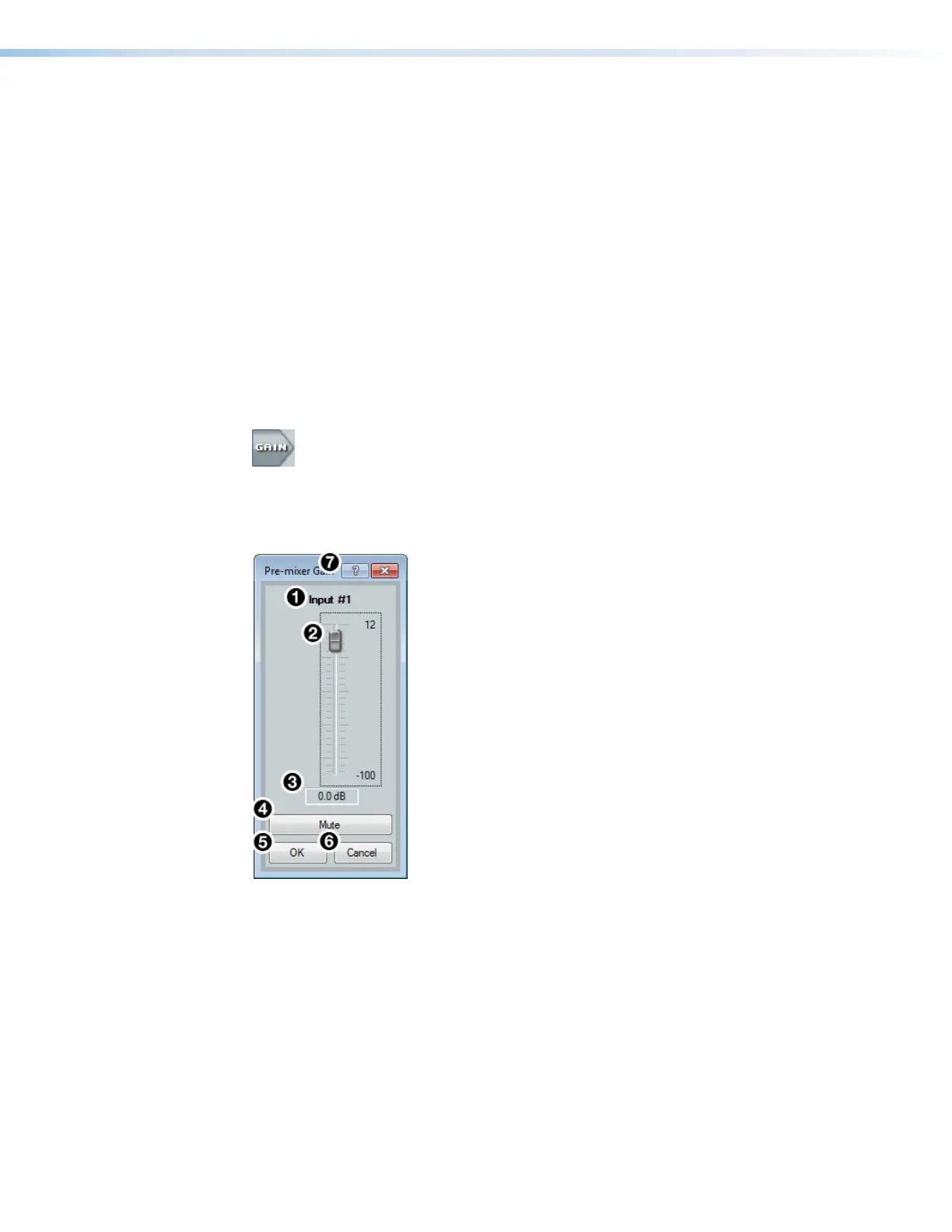

Figure 65. Input Pre-mixer Gain Block
The Pre-mixer Gain dialog box provides controls to boost, attenuate, and mute the signal
after input processing occurs and before it is sent to the mix matrix.
Figure 66. Input Pre-mixer Gain Dialog Box
1
Input Name — This name changes to match the default or user defined input name.
2
Pre-mixer Gain Fader — Click and drag the gain fader to provide up to 12 dB of gain
or 100dB of attenuation in 1 dB steps. Click the fader and use the <Up Arrow> or
<Down Arrow> keys to adjust the fader up or down in 1 dB steps.
3
Pre-mixer Gain Text Box — Enter a gain or attenuation value in 0.1 dB steps.
4
Mute Button — Mutes signal at the pre-mixer stage, preventing it from reaching the
mix matrices.
5
OK Button — Confirms changes made to the contained parameters and closes the
Pre-mixer Gain dialog box.
figure 57. Input Pre-mixer Gain Block
1
Input Name
2
Pre-mixer Gain Fader
3
Pre-mixer Gain Text Box
4
Mute Button
5
OK Button
6
Cancel Button
7
Pre-mixer Gain Help Button
figure 58. Input Pre-Mixer Gain Dialog Box
