DMP 128 FlexPlus • Configuration Tools 69
Groups
Groups allow master control of Gain, Mute, Bass, Treble, and Loudness for groups of
channels. Groups are used in macros, ACP panels, and other control configurations.
Click Tools > Configure Groups to open the Configure Groups dialog box.
1
Select Group
5
Apply Button
2
Select Control Type
6
Delete Current Group Button
3
Available Group Members
7
Close Button
4
Change Name Button

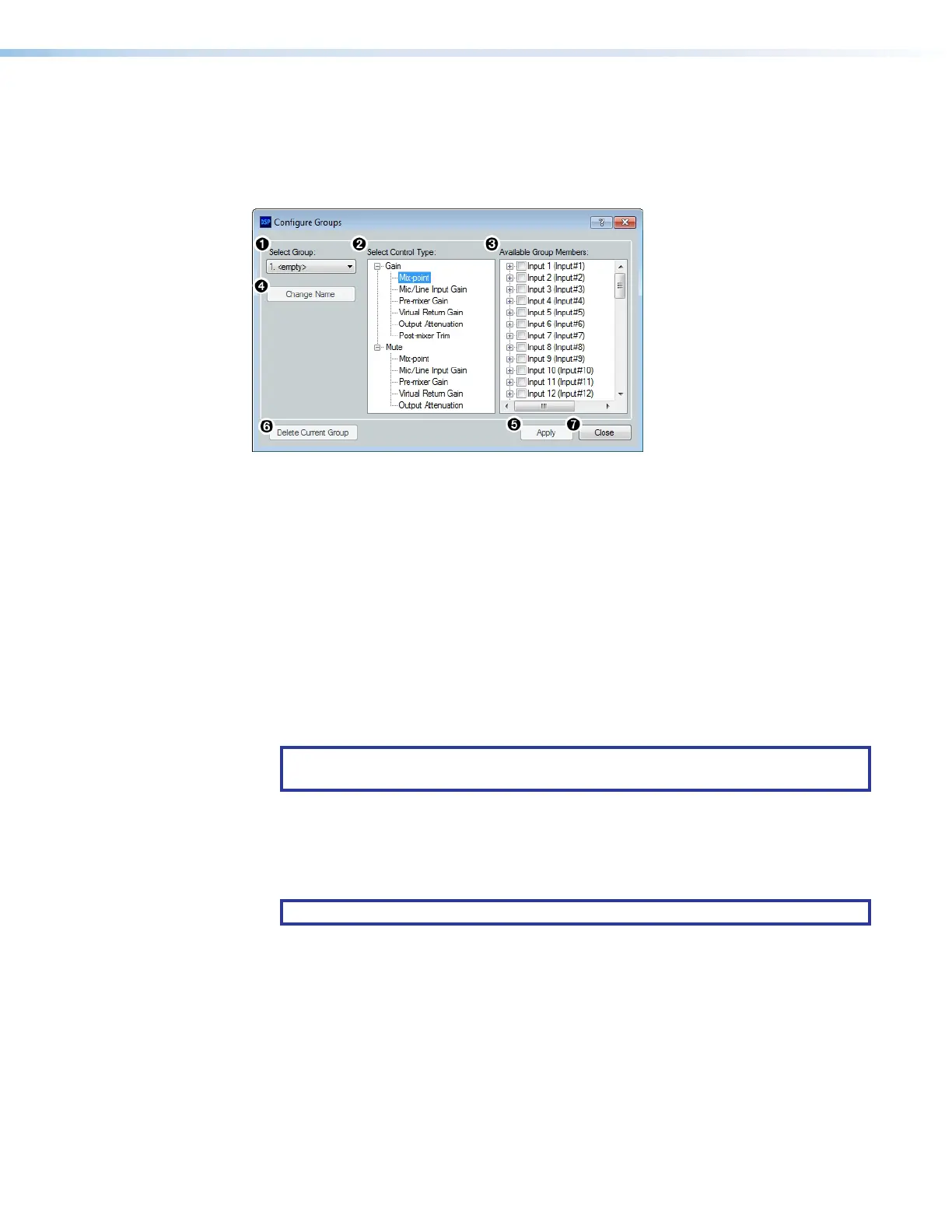

Figure 121. Group Controls Dialog Box
1
Select Group — Provides a drop-down menu to select the number of the group to
be configured. If the group has been configured and named, the group name appears
next to the group number. If the group slot is empty, it reads <empty> next to the group
number. There are 64 group slots available.
2
Select Control Type — Group controls can manage Gain, Mute, Bass, or Treble for
the specified inputs, mix-points, or outputs. From the Select Control Type panel,
select the type of control from the Gain, Mute, Bass, or Treble lists.
NOTE: Bass and Treble are only available if the Bass and Treble filters are inserted
on a channel and only allow channels with the filters to be placed in a group.
3
Available Group Members — This section populates according to the selected
control type and lists all inputs, mix-points, and outputs available to be added as group
members. Check the box next to a member to add it to the group. Group members
must be the same control type. The maximum number of group members for a single
group is 128.
NOTE: Loudness processors can be selected from input and output gain stages.
4
Change Name Button — Once a group has been created, select it from the Select
Group
drop-down menu (
1
), click Change Name to change the name of the selected
group.
5
Apply Button — Click Apply after changes to a group have been made. The Confirm
Group Details
dialog box opens allowing the group name and number to be edited.
Click OK to apply group changes.
6
Delete Current Group Button — Select a group from the Select Group drop-down
menu and click Delete Current Group to delete the group.
7
Close Button — Click Close to close the dialog box. Any changes that have not been
applied will be lost.
figure 113. Group Controls Dialog Box
