DMP 128 FlexPlus • DSP Configurator Software 38
Adaptive Gain
After inserting an adaptive gain processor, double-click the AG icon to open the
Adaptive Gain dialog box.

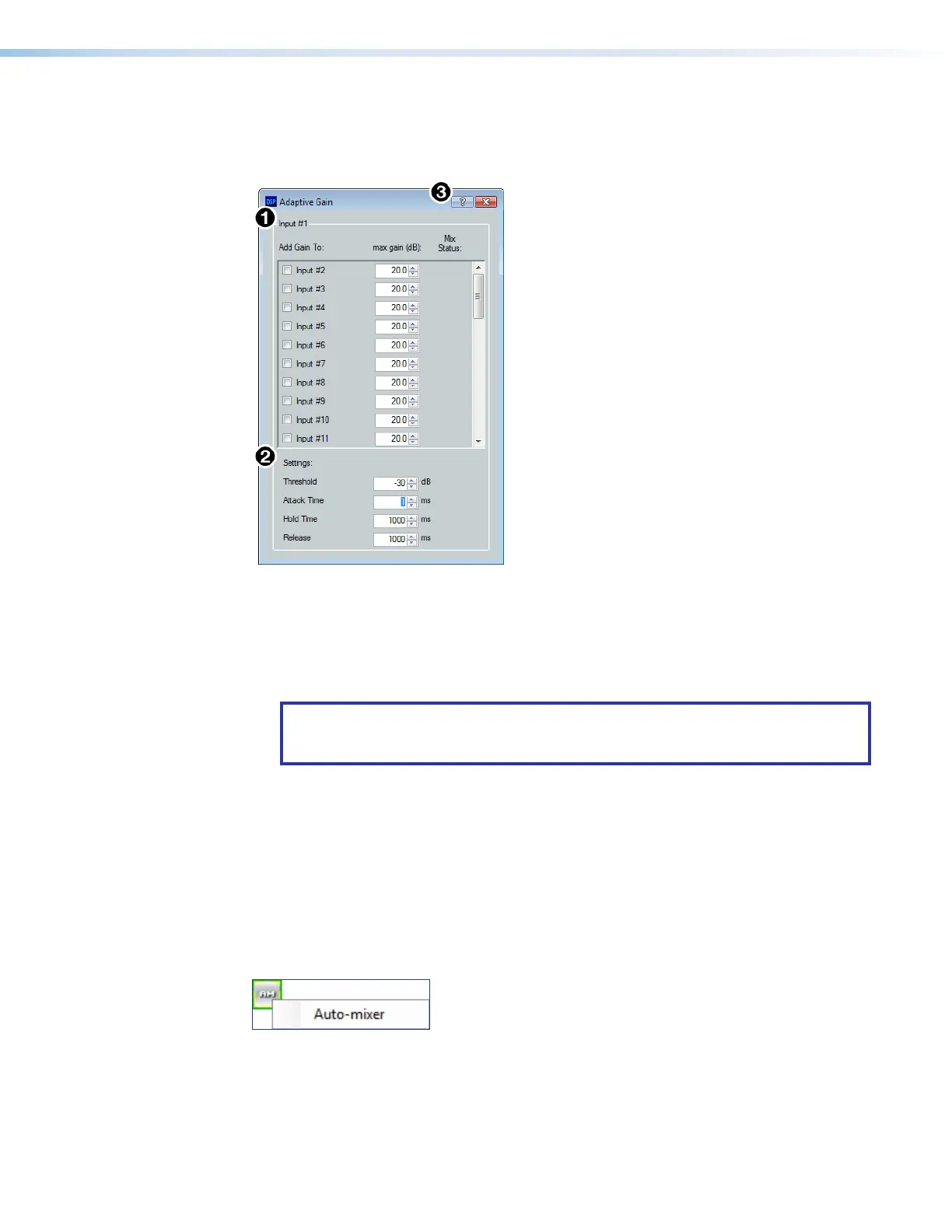

Figure 62. Adaptive Gain Dialog Box
1
Adaptive Gain Source Configuration — In the Add Gain To column, check the
inputs that will have gain added by the adaptive gain processor. In the Max Gain
(dB)
column, enter the maximum amount of gain that will be applied to each channel
selected in the Add Gain To column. When a box is checked, gain is applied to that
channel when signal exceeds the threshold on the adaptive gain trigger channel.
NOTE: For every 1 dB of signal beyond the level set in the Threshold field, 1 dB
of gain will be added to the channels selected in the Add Gain To column. This
occurs until the maximum gain set in the Max Gain (dB) field has been applied.
2
Adaptive Gain Parameter Settings — Contains controls for Threshold, Attack
Time
, Hold Time, and Release Time.
3
Adaptive Gain Operation Help Button — Opens the Adaptive Gain Operation
topic of the DSPConfiguratorHelp file for further assistance in adaptive gain
configuration.
Input Automix Block
Double-click the Automix block to open a drop-down menu. Select Auto-mixer to insert
the automix processor into the block.
Figure 63. Automix Block and Drop-Down
Once the automix processor is inserted into the Automix block, double-click the block to
open the Automix dialog box.
figure 54. Adaptive Gain Dialog Box
figure 55. Automix Block and Drop Down
1
Adaptive Gain Source Configuration
2
Adaptive Gain Parameter Settings
3
Adaptive Gain Operation Help Button
