DMP 128 FlexPlus • DSP Configurator Software 37
Ducker
After inserting a ducker processor, double-click the Duck icon to open the
Ducker Configuration dialog box.

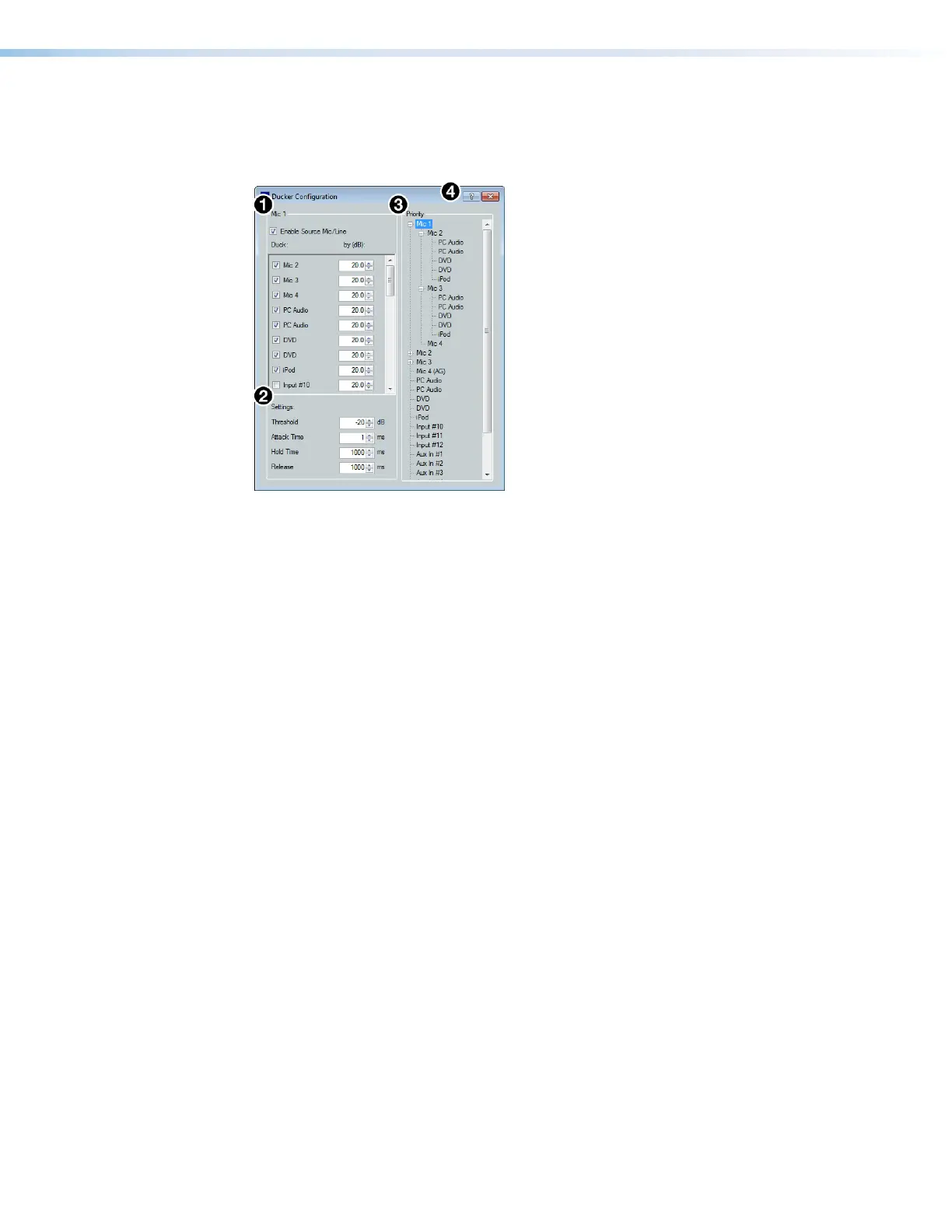

Figure 61. Ducker Configuration Dialog Box
1
Duck Source Configuration — The Enable Source Mic/Line checkbox is checked
when a ducker is inserted (default). In the Duck column, check the inputs that will be
ducked. In the by (dB) column, enter the amount of ducking that will occur on each
channel selected in the Duck column. When the threshold is exceeded on the duck
source, ducking occurs on the selected channels.
2
Duck Parameter Settings — Contains controls for setting Threshold, Attack Time,
Hold Time, and Release. Click the Ducking Operation Help button (
4
) to open
the Ducking Operation topic in the DSP Configurator Help fie.
3
Duck Priority Tree — Displays the ducking priority for all Input and Aux In channels.
Select another input to populate the Ducker Configuration dialog with the ducker
information for that channel. Channels with an adaptive gain processor are appended
with an (AG) (see Mic 4 in figure 61 above). Channels with adaptive gain processors
cannot be selected from this dialog box.
4
Ducking Operation Help Button —Opens the Ducking Operation topic of the
DSPConfiguratorHelp file for further assistance in ducker configuration.
figure 53. Ducker Configuration Dialog Box
1
Duck Source Configuration
2
Duck Parameter Settings
3
Duck Priority Tree
4
Ducking Operation Help Button
