DMP 128 FlexPlus • DSP Configurator Software 17
Delete — Deletes the selected preset from the configuration.

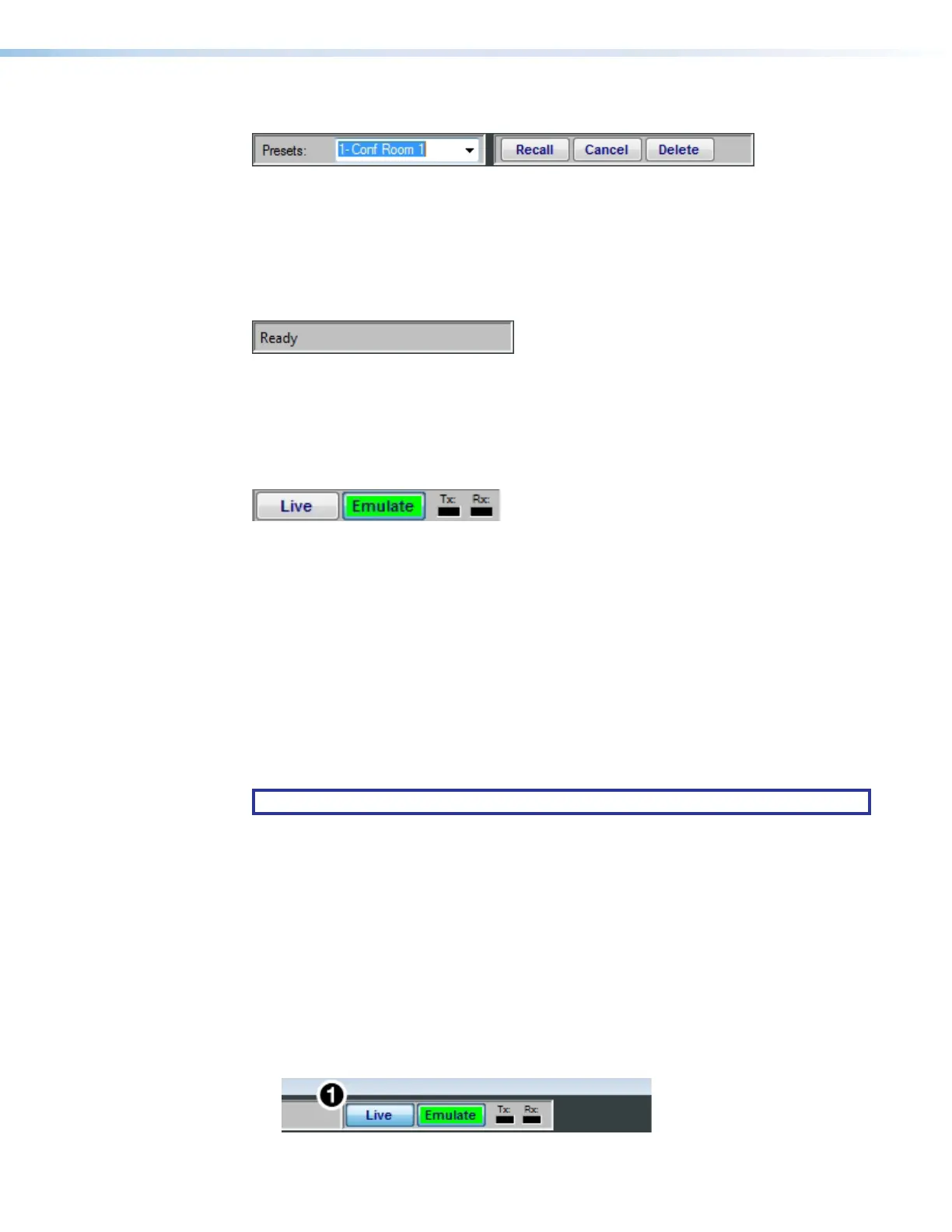

Figure 20. Preset and Action Selection
DSP Configurator Status Panel
This panel displays the current status of DSP Configurator and shows when data is being
pushed to or pulled from the device. When the software is ready to perform actions, the
panel reads Ready.
Figure 21. DSP Configurator Status Panel
Live and Emulate Panel
The Live and Emulate buttons allow users to switch between Live and Emulate mode and
displays transmit activity (Tx) and receive activity (Rx) when in Live mode.
Figure 22. Mode Panel
Emulate Mode
While in Emulate mode, DSP Configurator is functioning in an “offline” state. Changes made
to the configuration file are not applied to a DMP 128 FlexPlus.
In Emulate mode, the user can create and configure the software as though a device was
connected, except for any actions that require direct connection to the device or information
that is stored only on the device. Once configuration is complete, the user can switch to
Live mode and apply the configuration to the device or save the configuration file to be
loaded onto one or multiple devices at a later time.
Creating configuration files in Emulate mode saves time by not requiring a device to be
connected or present in order for the bulk of DSP configuration to be completed.
NOTE: Not all menu options or actions are available in Emulate mode.
Live Mode
Enter Live mode to connect to a DMP 128 FlexPlus and push or pull configurations between
the device and host PC. In Live mode, changes made in DSP Configurator are directly
applied to the DMP 128 FlexPlus. Additionally, presets and macros can be created and
stored on the device.
When entering Live mode, the user is prompted with the Connect to device dialog box.
Connect to a DMP 128 FlexPlus in Live Mode
1. Click the Live button in the menu bar of DSP Configurator (see figure 23 ,
1
).
Alternatively, select Tools > Connect to Device or press <F6> on the keyboard. The
Connect to device dialog box opens.
Figure 23. Live Button
figure 12. Preset and Action Selection
figure 13. DSP Configurator Status Panel
figure 14. Mode Panel
figure 15.
Live Button
To Next Page
