DMP 128 FlexPlus • DSP Configurator Software 57
Outputs
Eight outputs are available in the Outputs panel and route signal to the eight rear panel line
level analog outputs. Signal routed to these outputs can also be transmitted onto the Dante
network.

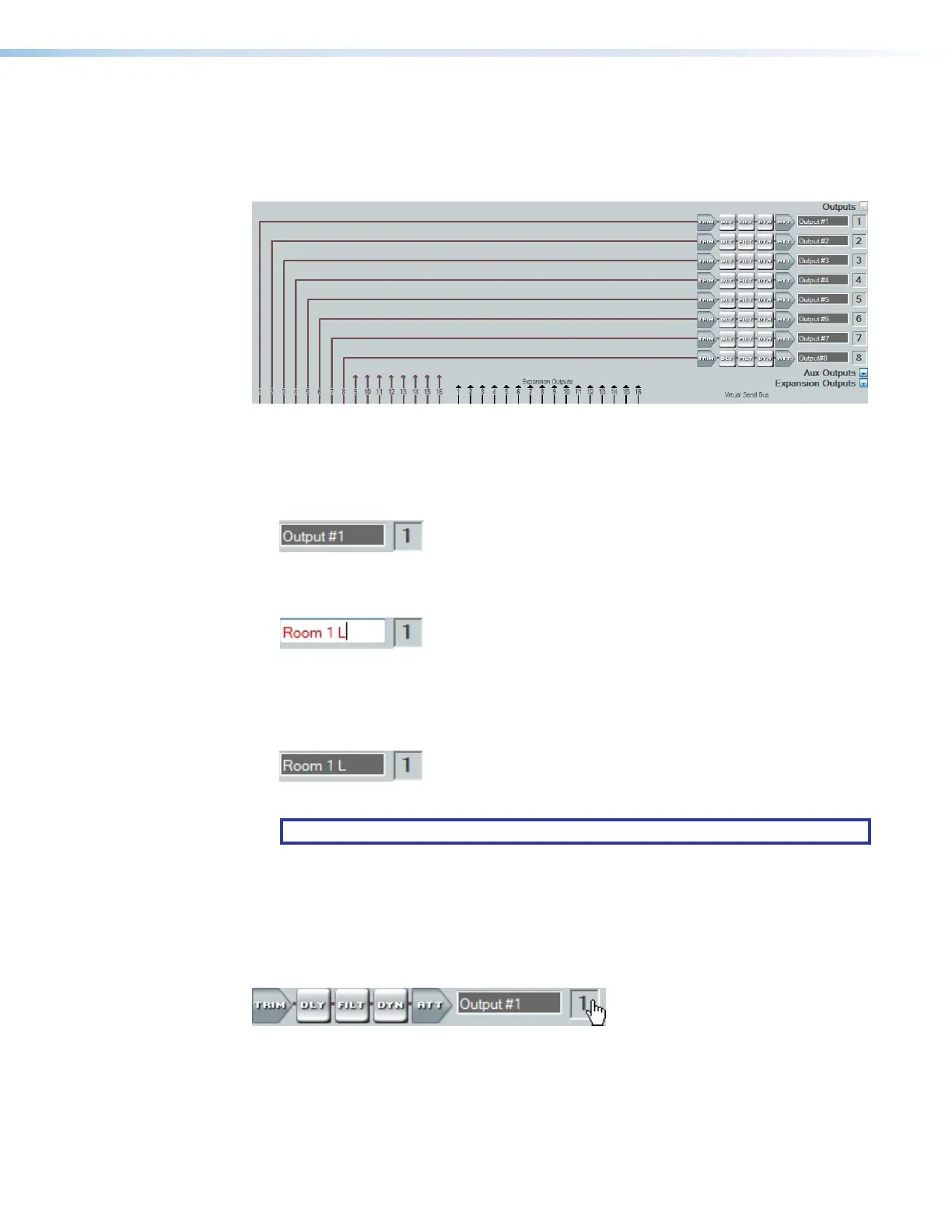

Figure 91. Outputs Panel
Naming an Output
1. Click the output name field.
Figure 92. Output Name Field
2. Delete the text and type the desired output name.
Figure 93. New Output Name
3. Press the <Enter> key or navigate away from the field to confirm and apply the new
output name. Press the <Down Arrow> key to navigate to and highlight the next name
field.
Figure 94. Renamed Output
NOTE: Follow the same procedure to edit an Output name.
Output Building Blocks
Extron building blocks are a quick configuration tool that can significantly reduce
configuration time. A building block is a collection of processor and gain settings for an
input or output processing chain. These building blocks have been built by Extron based on
extensive use and testing with each intended application or specific device.
Figure 95. Accessing Building Blocks on an Output
Click the output number to open the Building Blocks dialog box.
figure 83. Outputs Panel
figure 84. Output Name Field
figure 85. New Output Name
figure 86. Renamed Output
figure 87. Accessing Building Blocks on an Output
