DMP 128 FlexPlus • DSP Configurator Software 55
Mix-Point Dialog Box
Double-click a mix-point to open the Mix-point dialog box. Alternatively, highlight a
mix-point with a single click and press the <Enter> key to open the Mix-point dialog box.

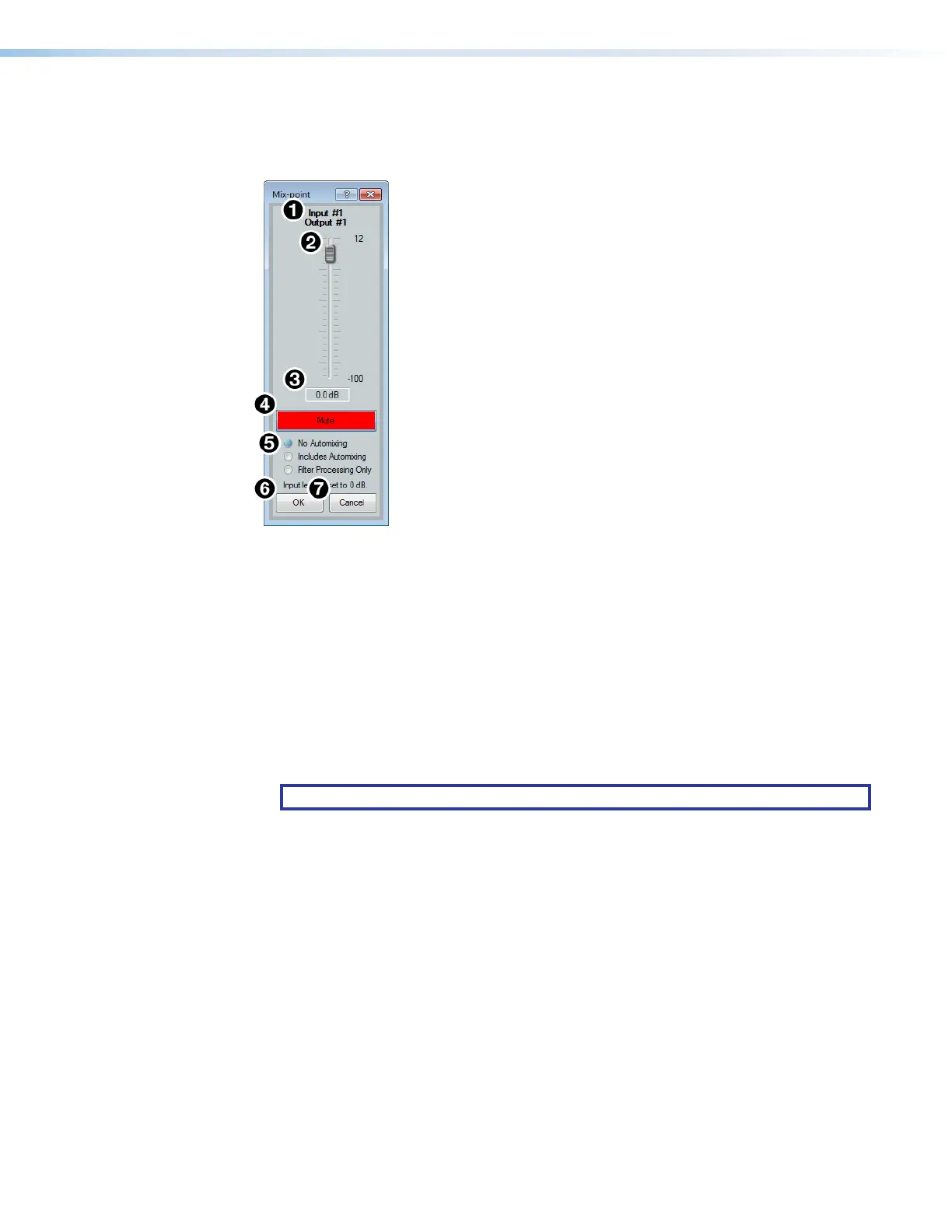

Figure 89. Mix-point Dialog Box
1
Mix-point Input and Output — Displays which input (top) and output (bottom) the
mix-point is connecting.
2
Mix-point Fader — Click and drag the mix-point fader to provide up to 12 dB of gain
or 100 dB of attenuation in 1 dB steps. Click the fader and use the <Up Arrow> or
<Down Arrow> keys to change the level in 1 dB steps.
3
Level Text Box — Allows specific level values to be entered in 0.1 dB steps.
4
Mute Button — Mutes the mix-point (muted by default). When the button is red, the
mix point is muted.
5
Mix Dot Selection — Three radio buttons provide options to choose the type of input
processing applied to the mix-point.
NOTE: Mix dot selections are not available on Virtual Return or EXP mix-points.
6
OK Button — Confirms changes made to the contained parameters and closes the
Mix-point dialog box.
7
Cancel Button — Reverts any changes made to the contained parameters back to
their states when the current instance of the Mix-Point dialog box was opened and
closes the dialog box.
figure 81. Mix-point Dialog Box
1
Mix-point Input and Output
2
Mix-point Fader
3
Level Text Box
4
Mute Button
5
Mix Dot Selection
6
OK Button
7
Cancel Button
