DMP 128 FlexPlus • DSP Configurator Software 22
1
Building Block Folders — These folders group input types together, such as table or
handheld mics, for easy access (see figure 36 below).

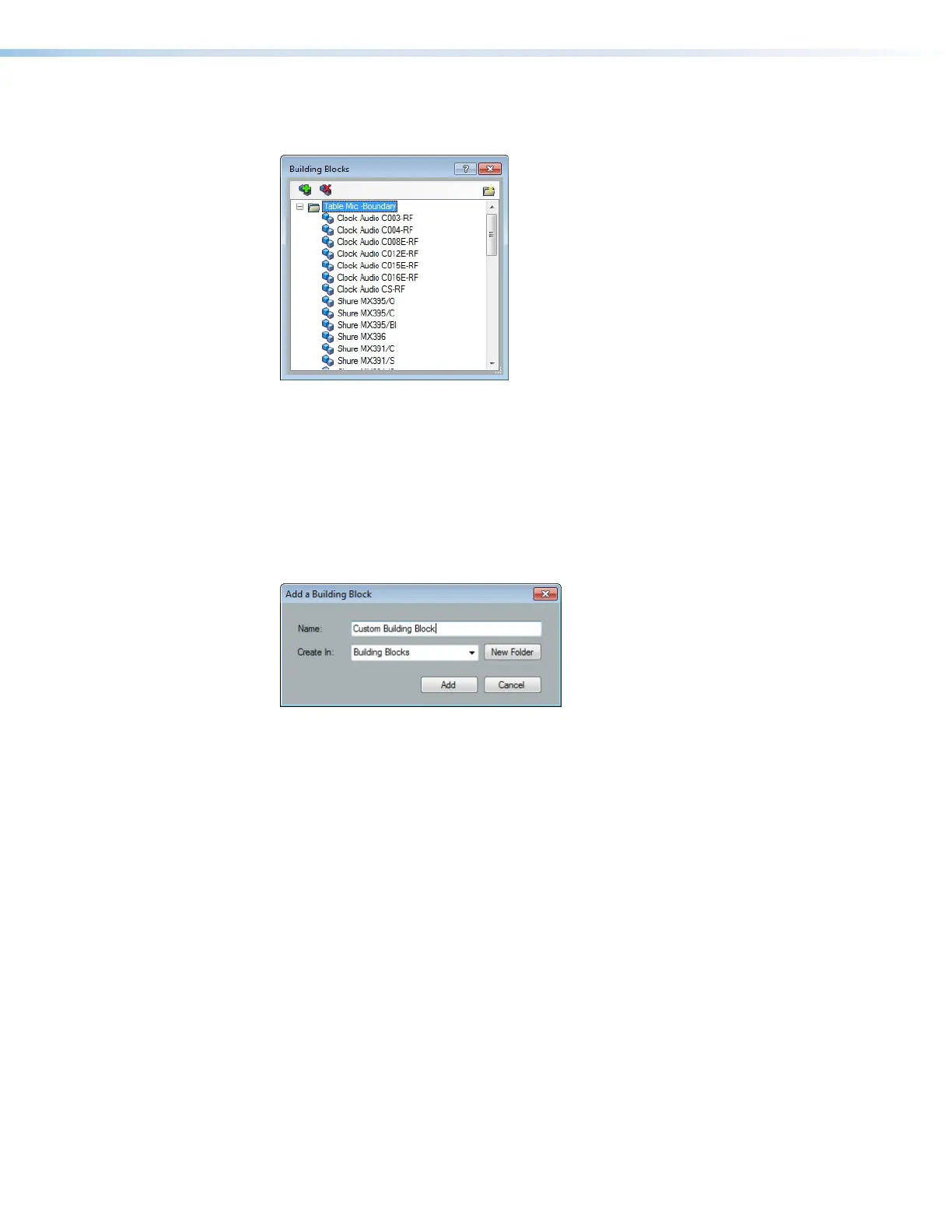

Figure 36. Mic Building Block Folder Contents
2
General Building Blocks — These building blocks provide quick setup for input
sources. General building blocks provide a useful starting point for devices in the same
product category as the name of the building block, such as handheld microphones,
line level sources, and so on.
3
Add a Building Block Button — Creates a custom building block from the current
gain and processor settings on the selected channel. When this button is clicked, the
Add a Building Block dialog box opens. Name the new custom building block and
choose a folder to save the block to, or create a new folder (see figure 37 below).
Figure 37. Add a Building Block Dialog Box
4
Delete a Building Block Button — Deletes the currently selected building block or
building block folder. If default building blocks are deleted, they can be restored from the
Organize Building Blocks dialog box. Custom building blocks can be saved to a
file from the same dialog box (Organize Building Blocks on page91).
5
New Folder Button —Creates a new folder or sub-folder in the Building Blocks
dialog box.
6
Building Blocks Help Button — Opens the Building Blocks topic of the
DSPConfiguratorHelp file. This topic contains more information on the different types
of building blocks for inputs and outputs.
figure 28. Mic Building Block Folder Contents
figure 29. Add a Building Block Dialog Box
