DMP 128 FlexPlus • DSP Configurator Software 33
Limiter

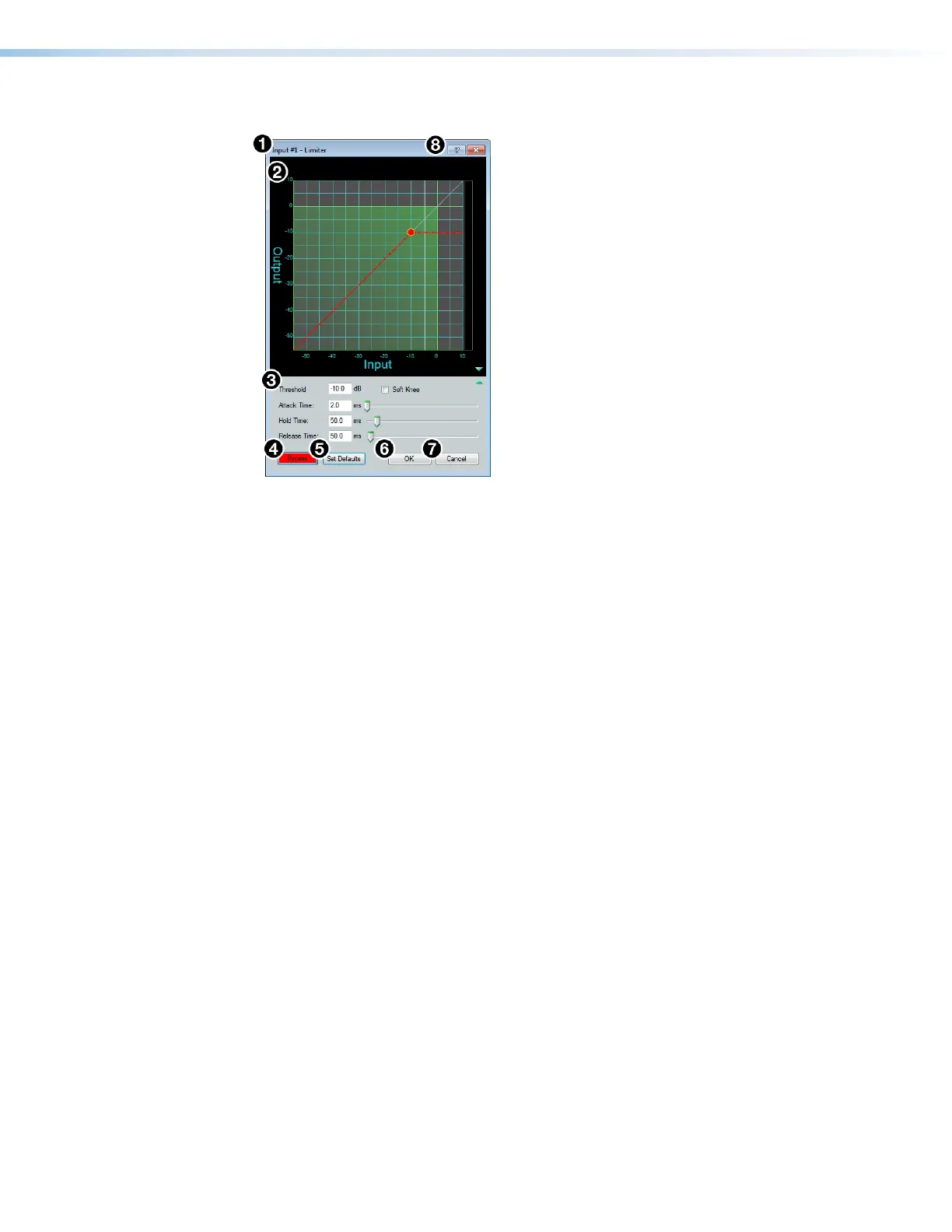

Figure 54. Limiter Dialog Box
1
Limiter Channel Name — This name changes to match the default or user defined
input name.
2
Limiter Graph — Graphically displays limiter parameter settings. Parameters can also
be adjusted using this graph. Click and drag the dot on the graph to adjust the limiter
Threshold.
3
Limiter Parameter List and Control — Lists all configurable parameters for the
limiter. Text fields are available to adjust Threshold, Attack Time, Hold Time, and
Release Time. Click and drag sliders to adjust Attack Time, Hold Time, and
Release Time. Click a slider once and use the <Left Arrow> and <Right Arrow>
keys to adjust the respective parameter in 1 ms steps. Select the Soft Knee checkbox
to provide a more gradual implementation of limiting when the signal reaches the
threshold.
4
Bypass Button — Bypasses the limiter. When the button is red, bypass is enabled.
5
Set Defaults Button — Resets all limiter parameters to their default values. To view
individual parameter default values, see the DSP Configurator Help file by clicking the
Dynamics Help button (
8
) and navigate to the About Dynamics topic.
6
OK Button — Confirms changes made to the contained parameters and closes the
Limiter dialog box.
7
Cancel Button — Reverts any changes made to the contained parameters back to
their states when the current instance of the Limiter dialog box was opened and
closes the dialog box.
8
Dynamics Help Button — Opens the Dynamics Operation topic of the
DSPConfiguratorHelp file for further assistance in operating dynamics processors.
figure 46. Limiter Dialog Box
1
Limiter Channel Name
2
Limiter Graph
3
Limiter Parameter List and Control
4
Bypass Button
5
Set Defaults Button
6
OK Button
7
Cancel Button
8
Dynamics Help Button
