DMP 128 FlexPlus • Dante Controller 119
One of the following icons appears at each connection intersection, indicating the status of
both the transmitter and receiver channels and the connections (subscriptions):
Icon Description
Indicates an active subscription.
Indicates subscription is in progress.
Indicates a pending subscription.
Indicates a broken subscription.
Indicates the transmitting device has been removed from the network or is
switched off.
See the Dante Controller User Guide, available at www.audinate.com, for additional
information.
Creating Subscriptions Between Transmitters and Receivers
1. Ensure the control computer and DMP 128 FlexPlus are connected to the same
network.
2. From the start menu select:
All Programs > Audinate > Dante Controller > Dante Controller
The Dante Controller - Network View screen opens.
Dante Controller auto-discovers Dante devices on the network and advertises itself to
allow other Dante-enabled devices to communicate with it. Transmitters connect to
receivers using the subscription matrix.

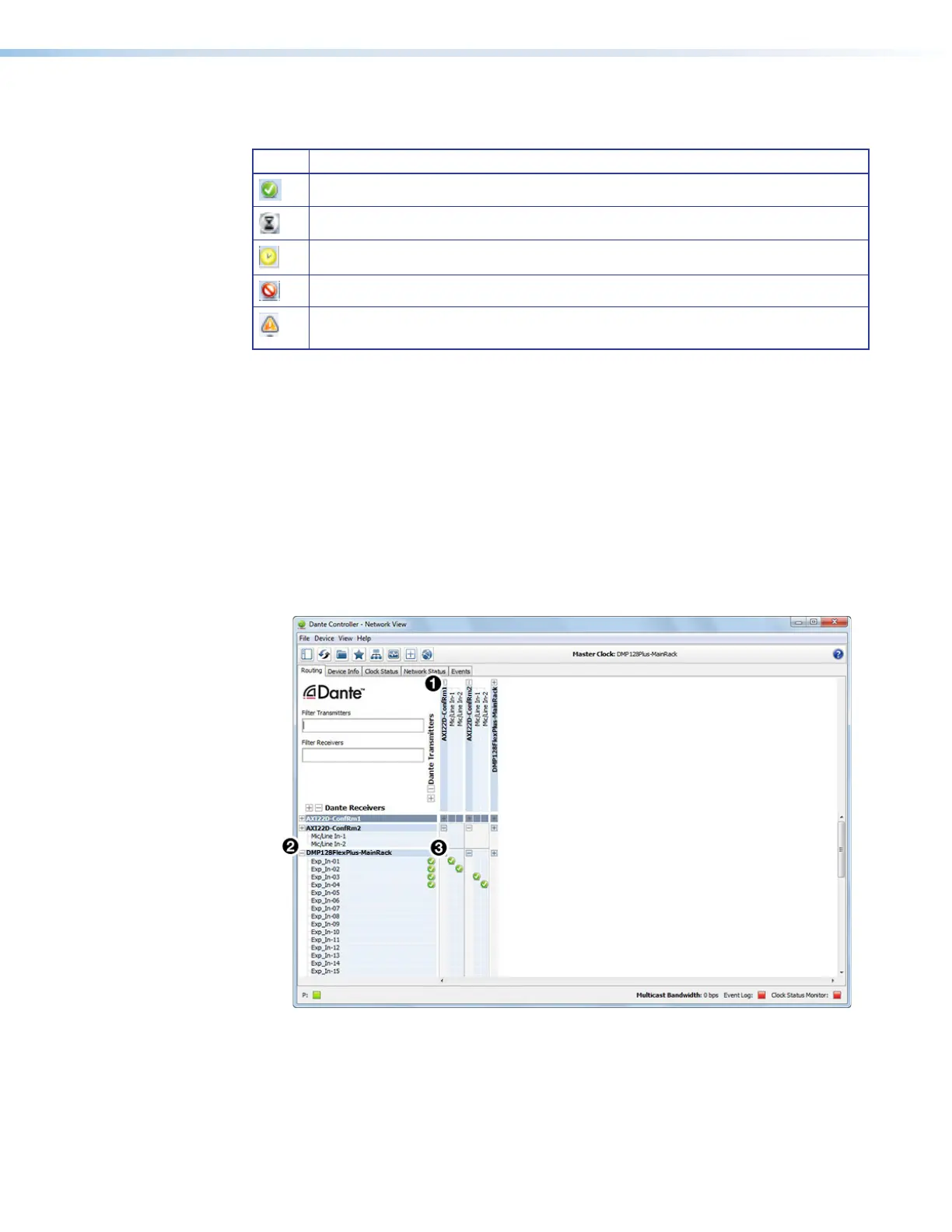

Figure 184. Routing Tab of Network View Screen
3. To show the transmitters of a Dante device, click the + box next to the desired device in
the Dante Transmitters panel, such as AXI22D-ConfRm1 (see figure 184,
1
above).
The + changes to a – sign when the device expands.
4. To show the receivers of a Dante device, click the + box next to the desired device in
the Dante Receivers panel, such as DMP128FlexPlus-MainRack (
2
).
174 Routing Tab of Network View Screen
