DMP 128 FlexPlus • DSP Configurator Software 48
Settings Tab

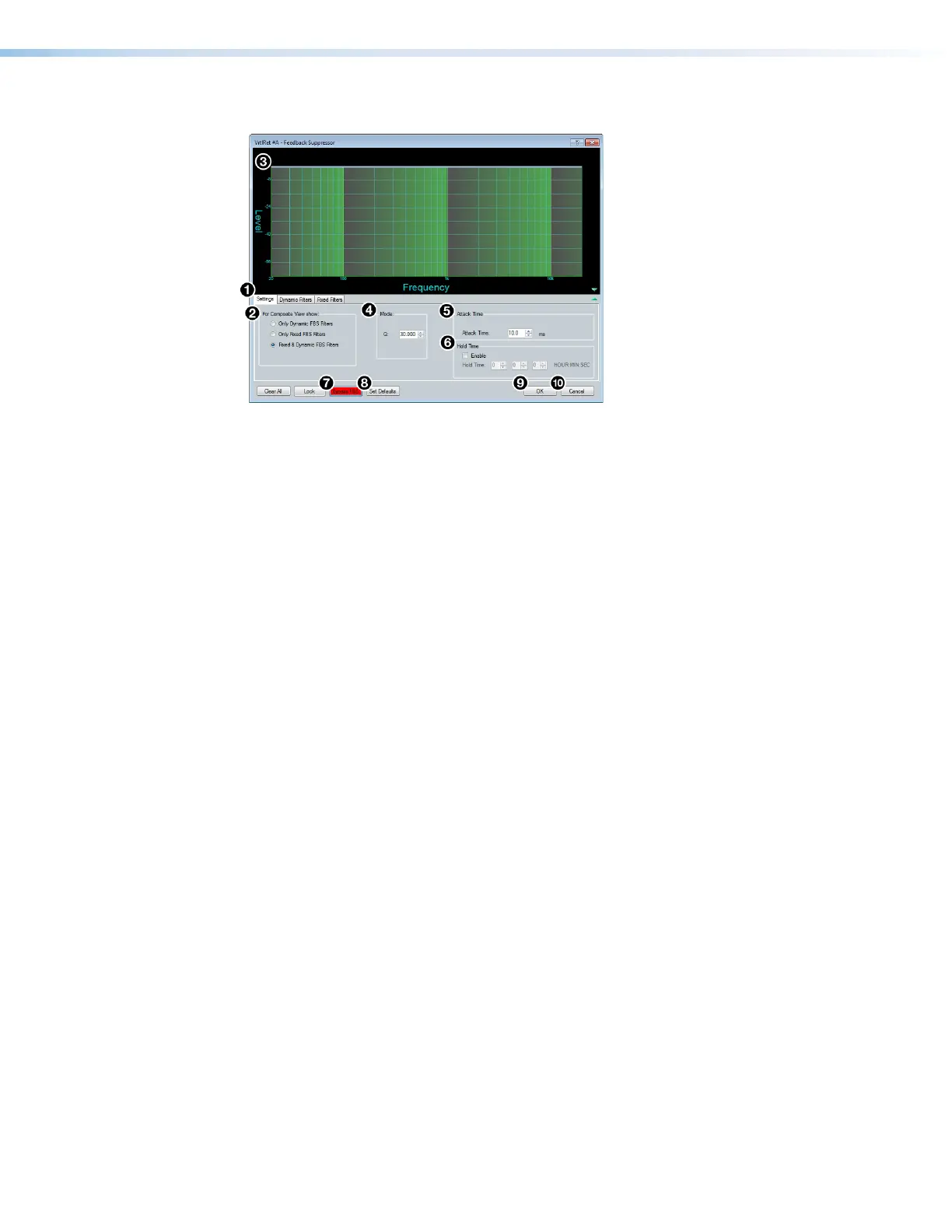

Figure 81. Feedback Suppressor Dialog Box - Settings Tab
1
Settings Tab — Provides access to the global FBS settings.
2
Composite View Panel — Three radio buttons control which filters are displayed in the
filter graph:
• Only Dynamic FBS Filters
• Only Fixed FBS Filters
• Fixed & Dynamic FBS Filters (default)
3
Filter Graph — Displays the dynamic filters, fixed filters, or both, as selected in the
Composite View panel.
4
Q Adjustment Panel — Adjust the default Q parameter of the dynamic filters using the
text box or the up/down spinner controls.
5
Attack Time Panel — Adjust the default Attack Time for dynamic filters.
6
Hold Time Panel — Provides an Enable checkbox, that enables the Hold Time
parameter. Entering a time into the Hold Time text boxes sets how long each dynamic
filter will hold before removing the filter.
7
Bypass FBS — Turns off feedback detection when bypass is engaged (button is red
when bypass is engaged). Only the dynamic filters are bypassed. Fixed filters remain
active.
8
Set Defaults Button — Resets parameters on all tabs to their default values and
positions.
9
OK Button — Confirms changes made to the contained parameters and closes the
Feedback Suppressor dialog box.
¢
Cancel Button — Reverts any changes made to the contained parameters back to
their states when the current instance of the Feedback Suppressor dialog box was
opened and closes the dialog box.
1
Settings Tab
2
Composite View Panel
3
Filter Graph
4
Q Adjustment Panel
5
Attack Time Panel
6
Hold Time Panel
7
Bypass FBS Button
8
Set Defaults Button
9
OK Button
¢
Cancel Button
figure 73. Feedback Suppressor Dialog Box - Settings Tab
