DMP 128 FlexPlus • DSP Configurator Software 50
Fixed Filters Tab

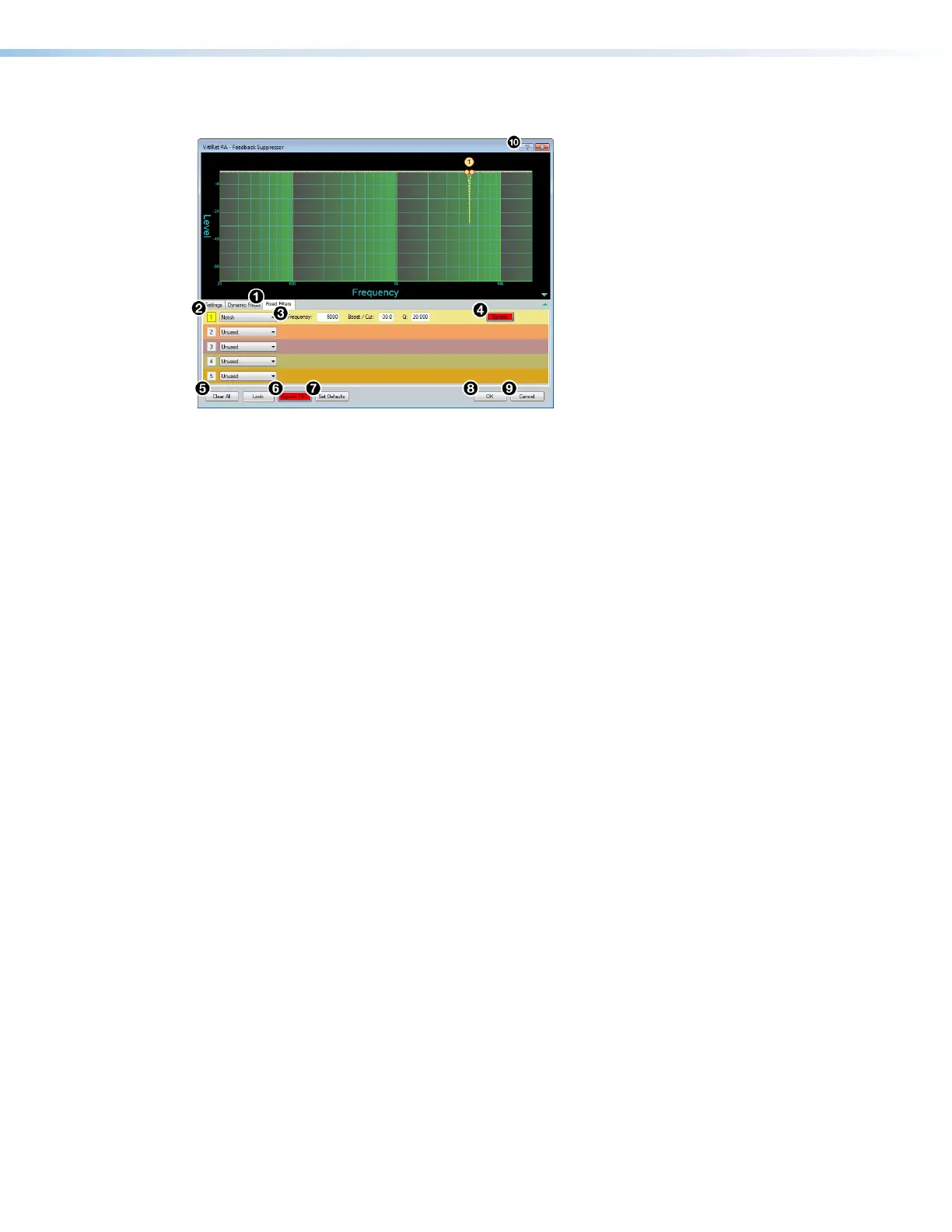

Figure 83. Feedback Suppressor Dialog Box - Fixed Filters Tab
1
Fixed Filters Tab — Provides access to fixed filter configuration options.
2
Fixed Filters List — Displays up to 5 fixed feedback suppression filters.
3
Filter Parameters — Configure the Frequency, Boost/Cut, and Q parameters for
each fixed filter using the text boxes.
4
Single Filter Bypass Button — Bypasses only the filter associated with that filter slot.
When the button is red, the filter is bypassed.
5
Clear All Button — Clears all fixed filters from the list.
6
Bypass FBS Button — Bypasses the FBS processor. When the button is red, FBS is
bypassed.
7
Set Defaults Button — Resets parameters on all tabs to their default values and
positions.
8
OK Button — Confirms changes made to the contained parameters and closes the
Feedback Suppressor dialog box.
9
Cancel Button — Reverts any changes made to the contained parameters back to
their states when the current instance of the Feedback Suppressor dialog box was
opened and closes the dialog box.
¢
Feedback Suppressor Help Button — Opens the Feedback Suppressor topic of
the DSPConfiguratorHelp file for further assistance in understanding and operating the
feedback suppression processor.
1
Fixed Filters Tab
2
Fixed Filters List
3
Filter Parameters
4
Single Filter Bypass Button
5
Clear All Button
6
Bypass FBS Button
7
Set Defaults Button
8
OK Button
9
Cancel Button
¢
Feedback Suppressor Help Button
