4. From the Digital Out 1 Acting upon drop-down, select an input, group, preset, or
macro affected by the mode.

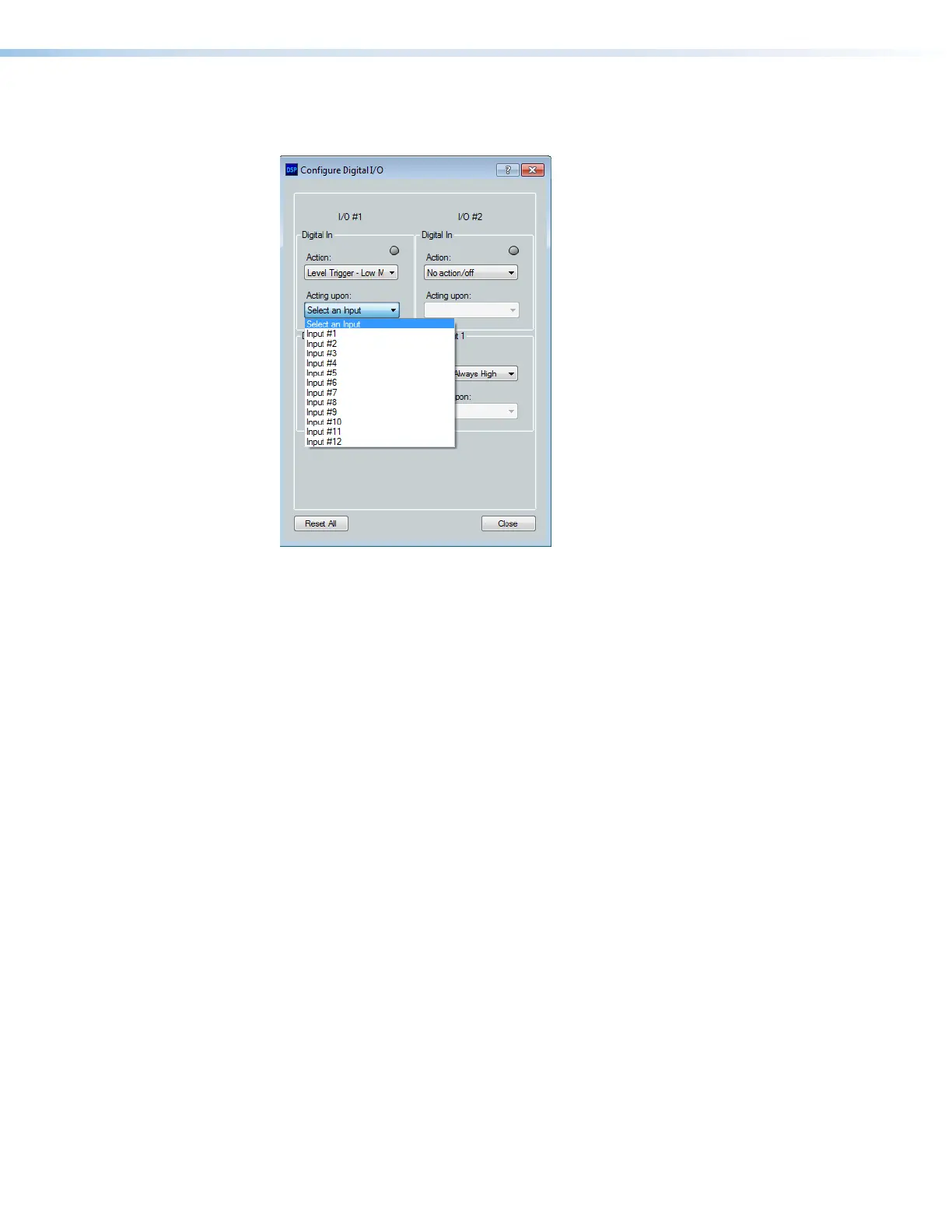

Figure 129. Selecting Digital Out 1 Acting Upon
5. Repeat steps 1 through 6 for additional Digital I/O configurations.
6. Click Close to close the Configure Digital I/O dialog box.
7. To save the Digital I/O configuration, click File > Save or press <Ctrl+S> and choose
a location to save the configuration file.
To push the Digital I/O configuration to a DMP 128 FlexPlus:
1. Connect to a DMP 128 FlexPlus in Live mode (see Live and Emulate Panel on
page17) and follow the the steps in Configuring Digital I/O on page73.
Changes made in the Configure Digital I/O dialog box when connected Live are
applied directly to the DMP 128 FlexPlus.
-or-
1. Follow the follow the steps in Configuring Digital I/O on page73 while in Emulate
mode.
2. Connect to a DMP 128 FlexPlus in Live mode and perform a configuration file push (see
Live and Emulate Panel on page17).
figure 121. Selecting Digital Out Acting
