FARO Edge
September 2012
188
Chapter 10: Configuring the FARO Edge in CAM2 Measure
The digitized compensation points then calculate and the COMPENSATION
S
TATUS updates. If the probe passes, the current date and time is added to the
probe information.
You can view the details for all of the compensations of a probe by clicking the
View Log button. See “View Log” on page 189.

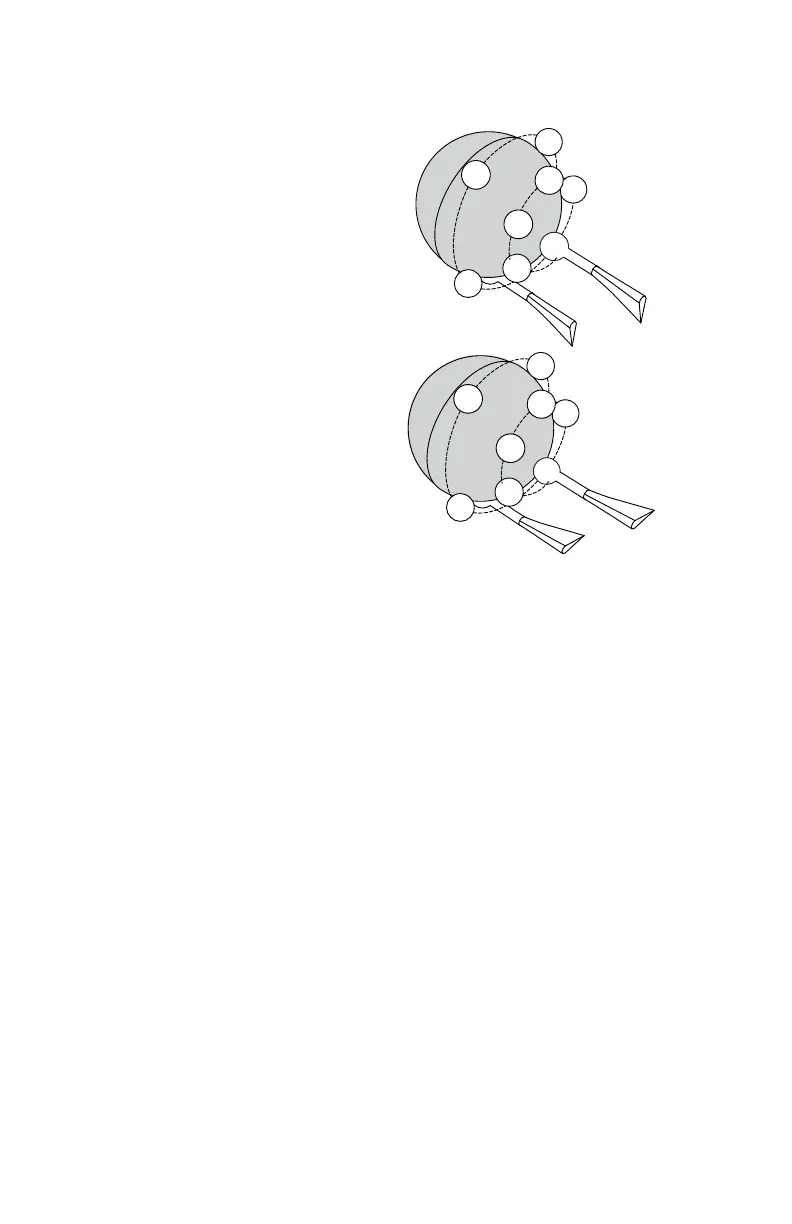

• Digitize 11 points around the
front hemisphere of the sphere
with the probe pointing in
position #2. Hold the handle in
the same direction and
orientation for every point.
• Rotate the probe 90 degrees.
Digitize 11 points around the
front hemisphere of the sphere
with the probe pointing in
position #2. Hold the handle in
the same direction and
orientation for every point.
3
4
5
11
10
9
8
7
5
10
11
7
3
8
9
4
