FARO Edge
September 2012
23
Chapter 2: Setup
7-Axis Handle
You can attach the 7-Axis Handle, a pistol-grip handle, to the Edge Handle to
give you another control option. This handle stores in a cutout of the shipping
case foam. The 7-Axis Handle can be attached/detached while the Edge is
powered On. The FARO Laser Line Probe attaches in the same method. See
“FARO Laser Line Probe” on page 54. To attach the handle:

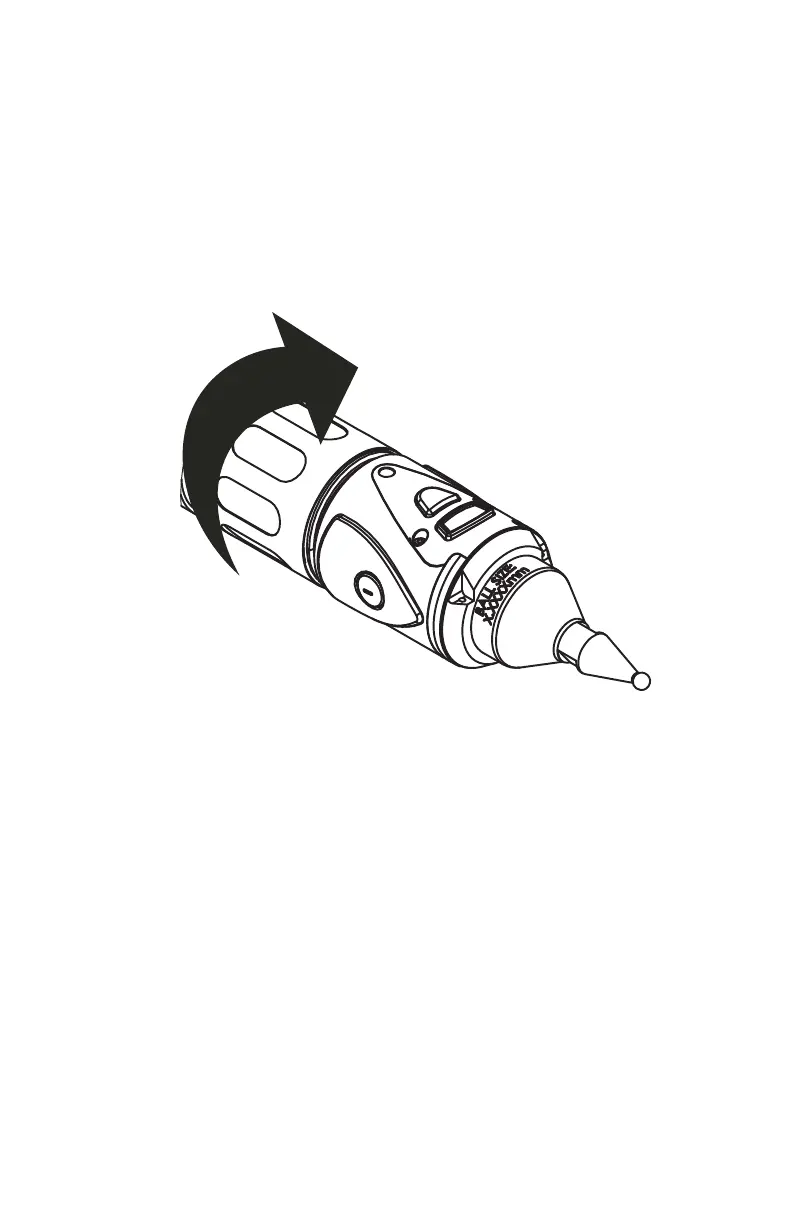

1 Loosen the locking ring by turning it counterclockwise.
Figure 2-14 Attaching the 7-Axis Handle
08M52E00_FaroArm_Edge.book Page 23 Thursday, October 4, 2012 9:31 AM
