FARO Edge
September 2012
21
Chapter 2: Setup
Handle Storage
The Edge has a latching lock attached to Tube 2 for easy storage of the
handle.This storage system helps prevent damage to the probe.
Swing the handle up and rotate it until either metal circle is aligned with the lock
attached to Tube 2, and press together until the lock engages.

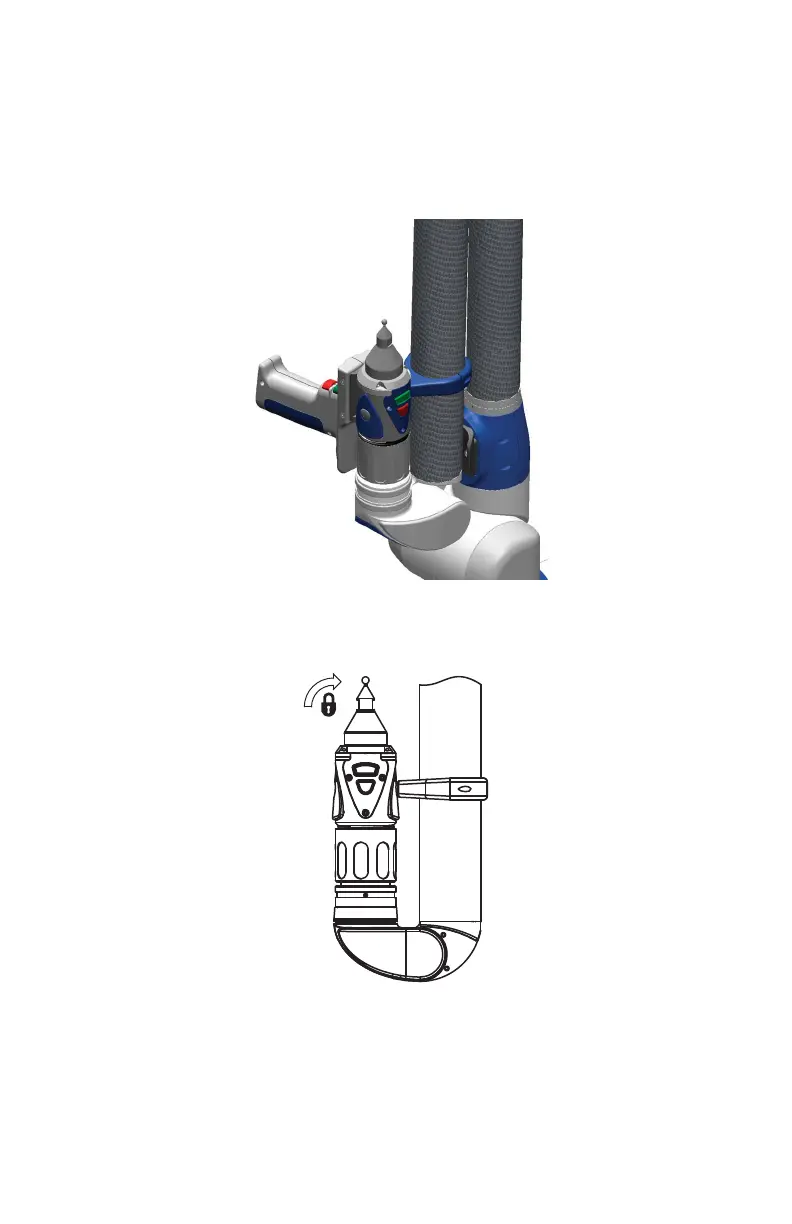

Figure 2-11 Handle Storage
Figure 2-12 Locking the Handle
