Chapter 10: Configuring the FARO Edge in CAM2 Measure
View Log
The COMPENSATION LOG dialog box displays the compensation history of the
current probe. You can set to active or delete any previous compensation. You
can also select the compensation values and copy them to the windows clipboard.
• The X, Y, Z values are the location of the center of the ball probe in the last
joint coordinate system.
• The 2 Sigma value is the deviation of all the points taken during the
compensation.
• The Max. Error column displays the displacement of the point with the largest
displacement. In order to pass compensation, this value has to be less than the
single point accuracy specification of the arm.

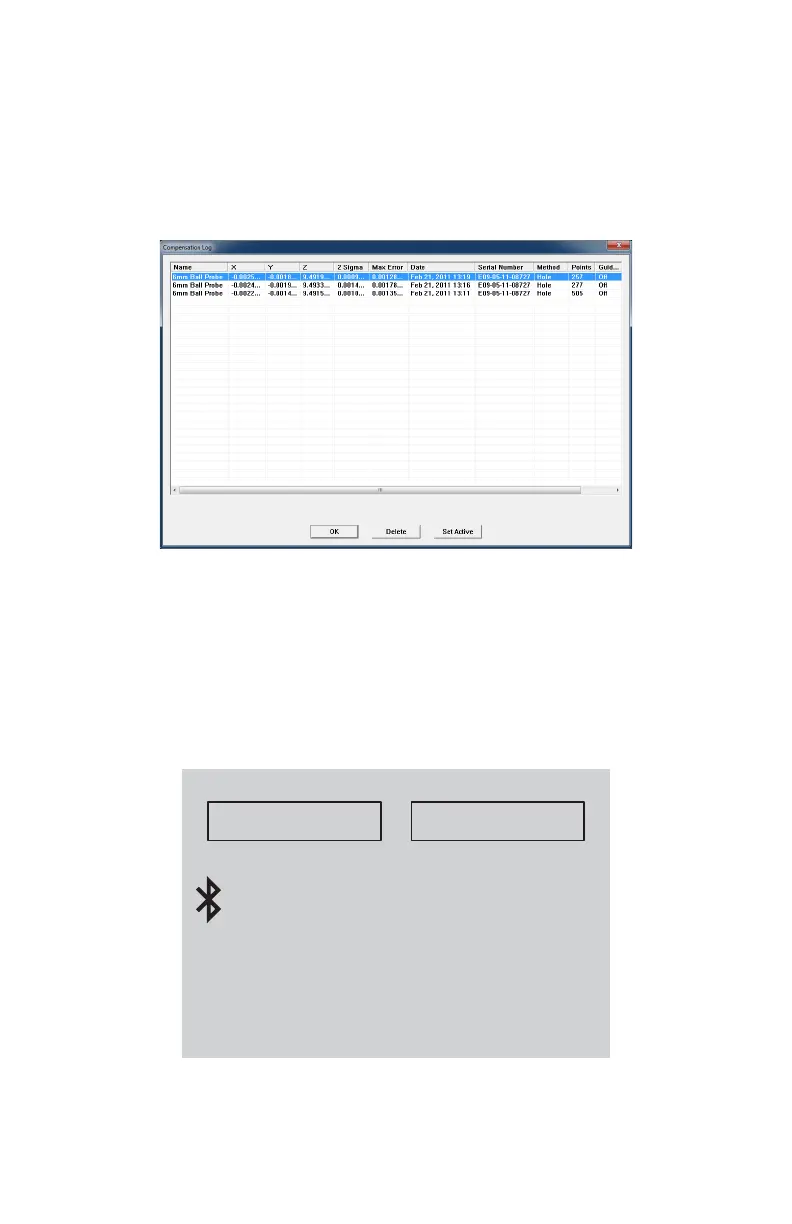

Figure 10-7 Compensation Log dialog box
