FARO Edge
September 2012
28
Chapter 2: Setup
Installing the Battery Pack
Slide the battery pack in with the rounded side down.
Push the battery all the way in until it snaps into place.
Removing the Battery Pack
Push the
battery pack release lever to the right and pull out the battery pack.

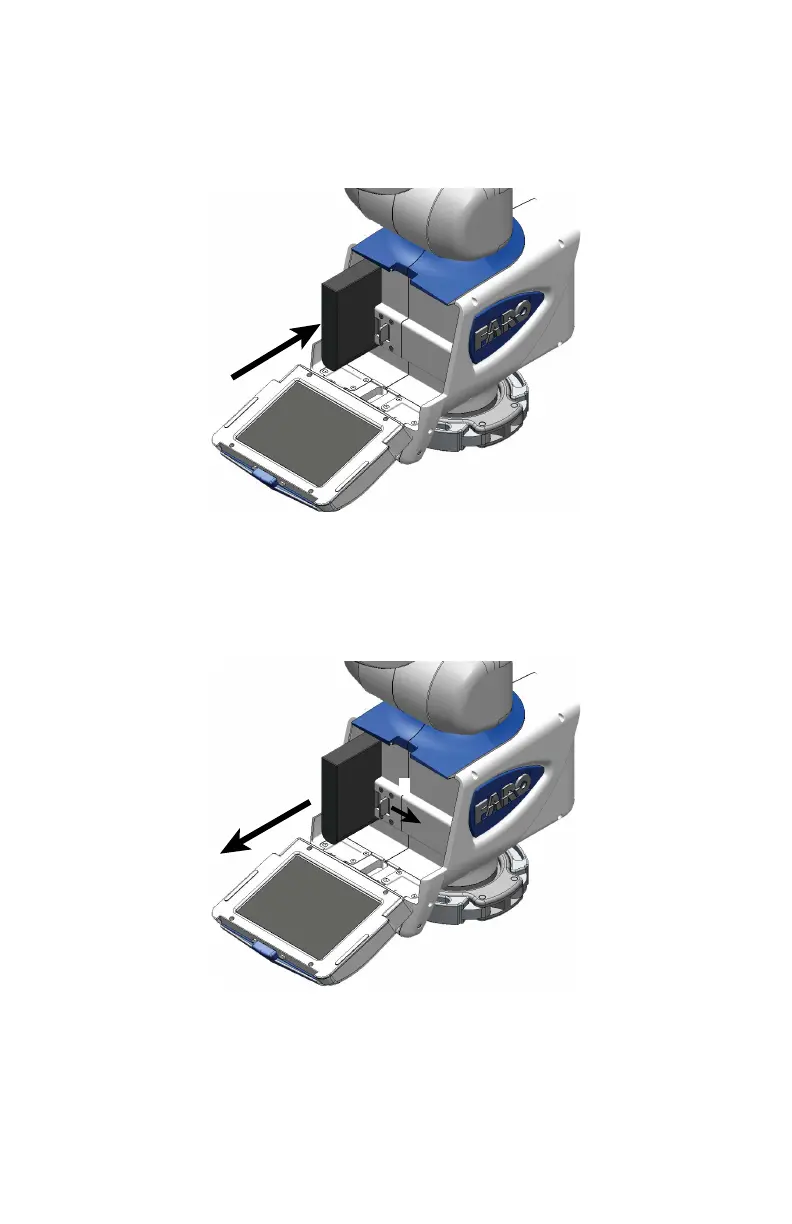

Figure 2-18 Installing the battery pack
Figure 2-19 Removing the battery pack


