Chapter 4: Probes
Serial Number Label
The FARO Laser Line Probe Serial Number label contains the serial number,
laser information, calibration, warning logotype and manufacturing date. See
Figure 4-2 for the location of the laser beam aperture.
Servicing
The FARO Laser Line Probe should only be serviced by FARO Customer
Support technicians. There are no user serviceable parts in this device. DO NOT
attempt to open the casing or disassemble the device at any time.
If the FARO Laser Line Probe is not operating properly, contact FARO Customer
Support. If it has malfunctioned, power down the system, remove it from the
Edge and return it to FARO Customer Support for repair.
WARNING: DO NOT ATTEMPT TO OPEN THE FARO LASER LINE
PROBE CASE. THERE ARE NO USER SERVICEABLE PARTS.
Hardware Installation
The FARO Laser Line Probe is stored in case #2 in the shipping case. Installing it
is similar to the Edge 7-Axis Handle. The FARO Laser Line Probe can be
attached/detached while the Edge is powered On. To attach the probe:
1 Set up your Edge and install the 6mm or 3mm ball probe.

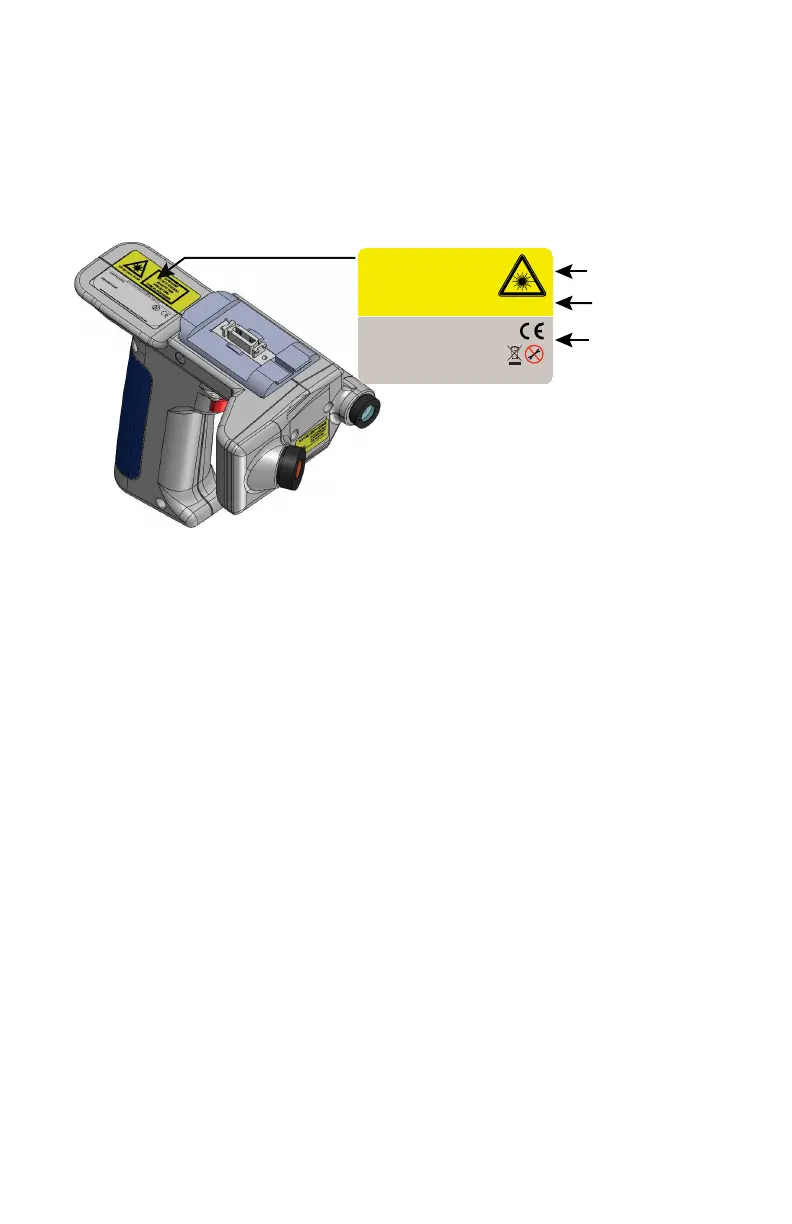

Figure 4-4 Serial Number label
Serial Number:
Manufactured:
Pat. 6965843; 7050930; 7246030
FARO Technologies, Inc. • 250 Technology Park • Lake Mary, FL 32746 • USA
This product complies with IEC 60825-1:2007-03 Ed. 2.0.
This product complies with 21CFR Subchapter J Parts 1040.10 and 1040.11
except for deviations pursuant to Laser Notice No. 50 dated June 24, 2007.
Wavelength 655 nm Output power: <5mW
LASER RADIATION
DO NOT STARE INTO BEAM OR VIEW
DIRECTLY WITH OPTICAL INSTRUMENTS
CLASS 2M LASER PRODUCT
WARNING
LOGOTYPE
CERTIFICATION
IDENTIFICATION
