FARO Edge
September 2012
57
Chapter 4: Probes
2 Loosen the handle locking ring by turning it counterclockwise.
3 Insert the front edge of the probe into the slot.
4 Push the probe handle in so that the connectors connect.
5 Tighten the locking ring by turning it clockwise. Do not over tighten the
ring.
N
OTE: Remove the FARO Laser Line Probe from the Edge before packing.
See “Packing the Edge” on page 30.

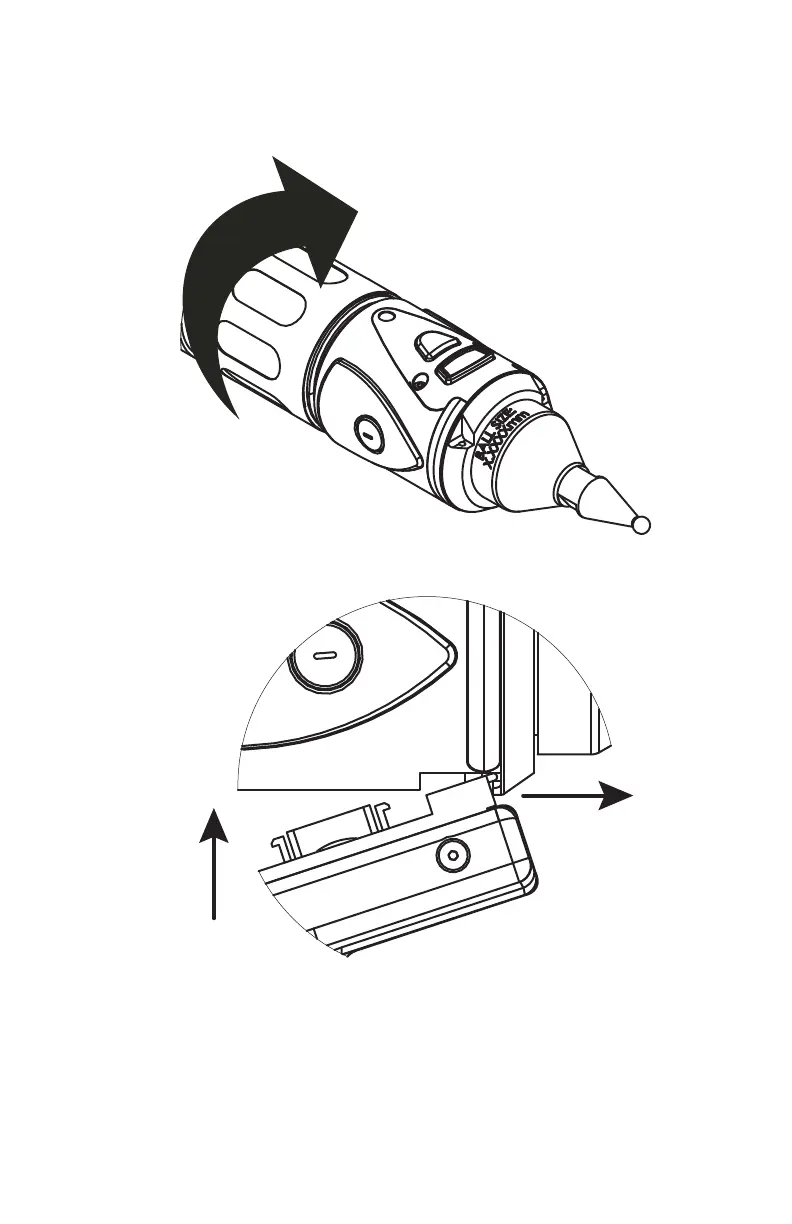

Figure 4-5 Attaching the 7-Axis Handle
Figure 4-6 Attaching the 7-Axis Handle
