FARO Edge
September 2012
32
Chapter 2: Setup
5 Loosen the base collar.
6 Remove the Edge from the mounting ring and close the case bottom.
Packing the Edge Shipping Case
1 Insert the portable storage case into the shipping case.

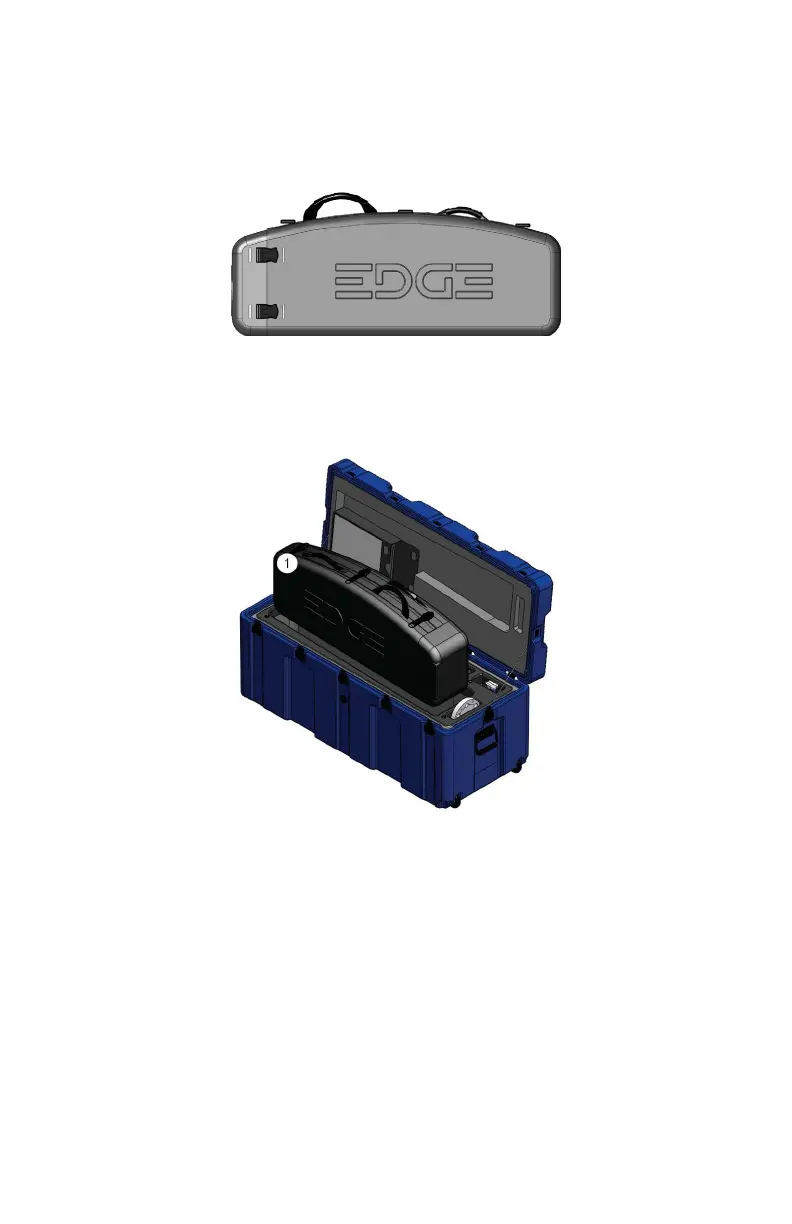

Figure 2-24 Closing the portable storage case bottom
Figure 2-25 Insert the Edge into the shipping case
