FARO Edge
September 2012
31
Chapter 2: Setup
2 Open the portable storage case and place it around the Edge. The case foam
near the hinges should rest on the top of Edge base.
3 Pull the handle slightly away from the base to fit into the case foam.
4 Close the case and secure each of the three straps.

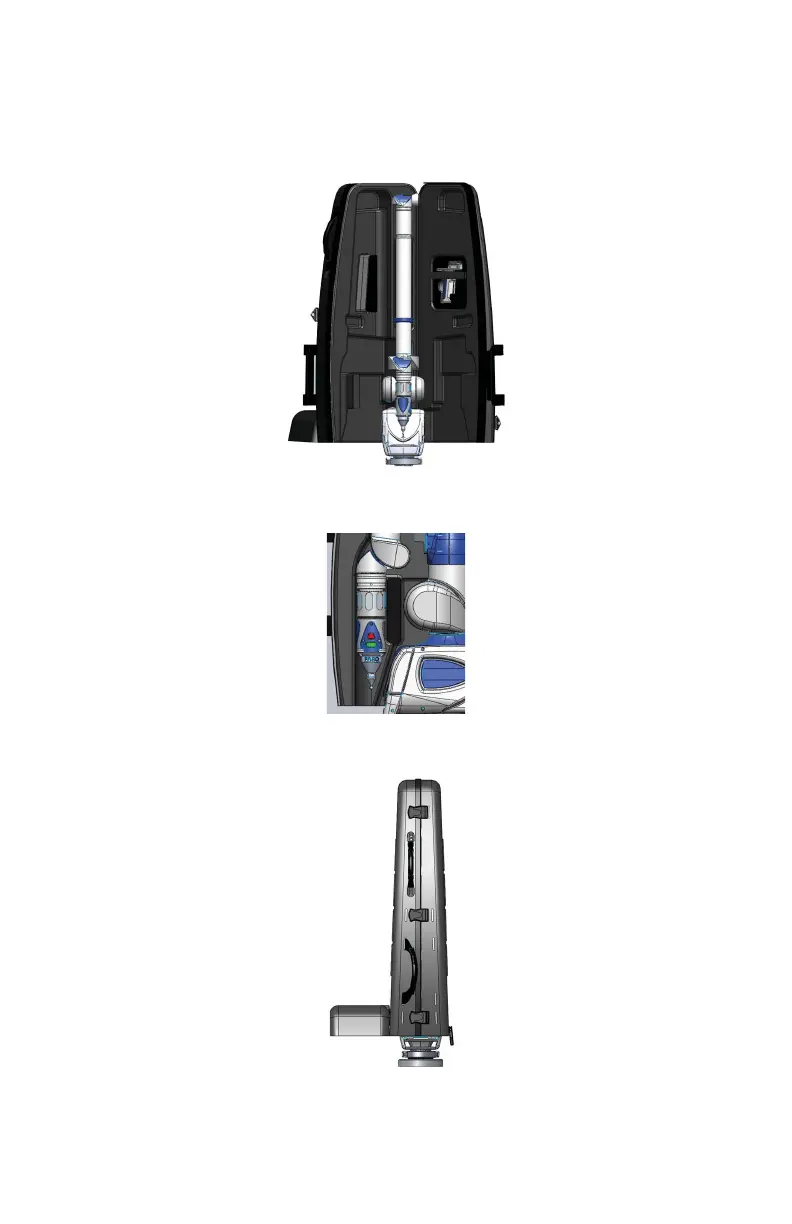

Figure 2-21 Portable case packing
Figure 2-22 Handle packing
Figure 2-23 Closing the portable storage case
