FARO Edge
September 2012
22
Chapter 2: Setup
Press the side of the handle to unlock the handle.
NOTE: In older models of the Edge a magnet is attached to Tube 2 for storage
of the handle. Swing the handle up and rotate it until the metal circle is aligned
with the magnet on either side of the handle.

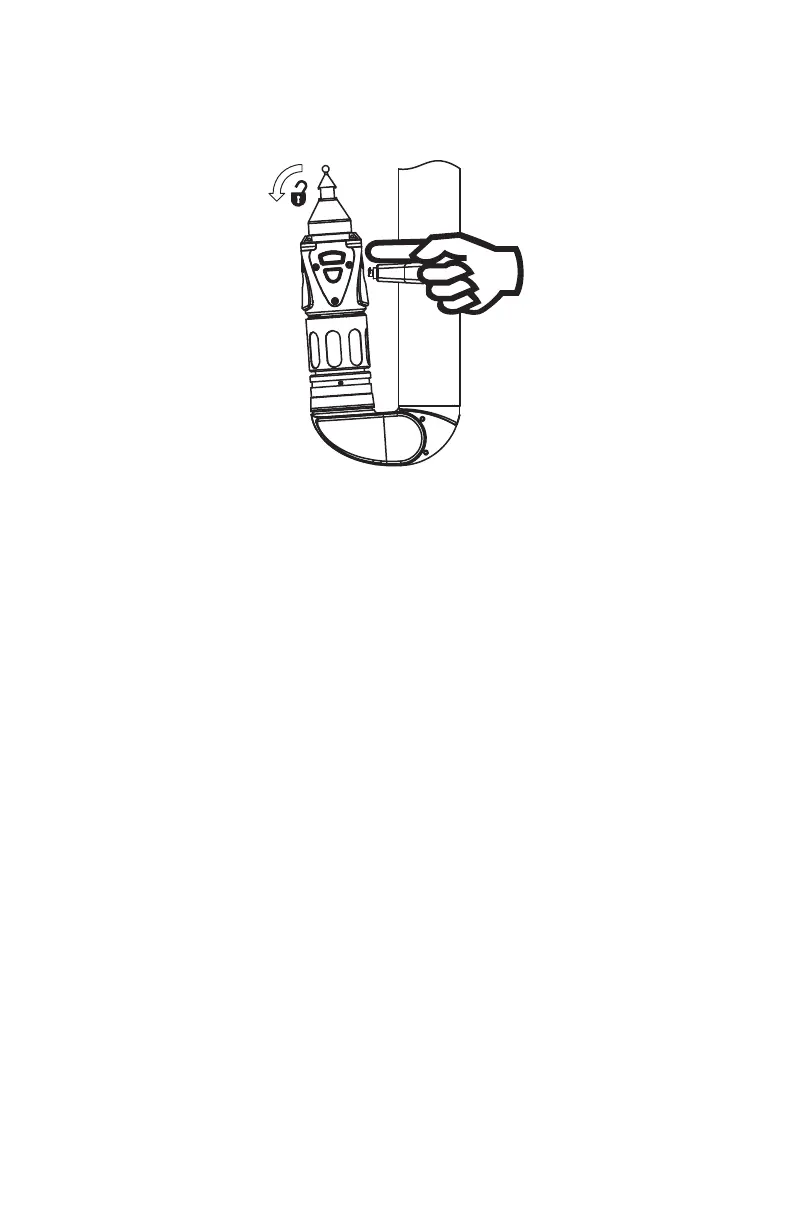

Figure 2-13 Unlocking the Handle
