Chapter 2: Setup
2 Unclip the two straps to open the bottom cover. Place the Edge onto the 3½”
ring of your tripod or surface mount plate. Thread the base collar onto the ring
and hand tighten.
3 Unclip the three straps to open the case and remove the portable storage case.

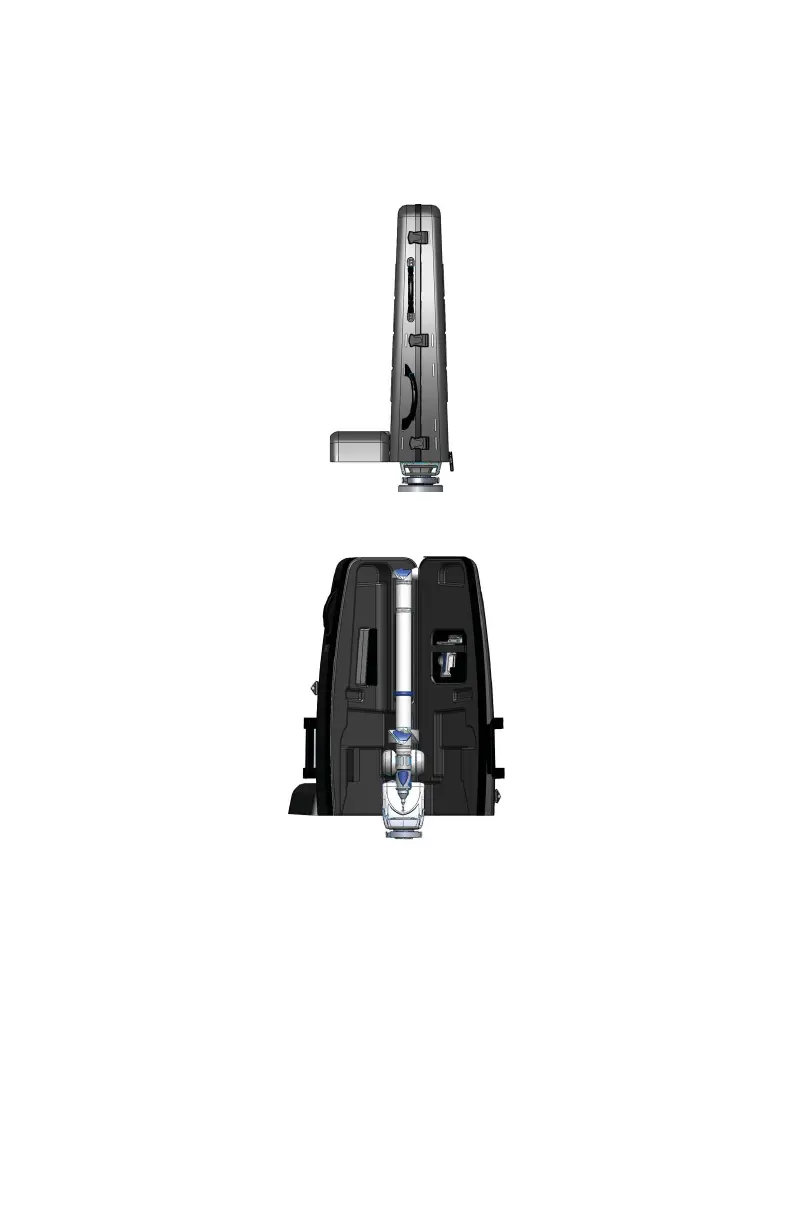

Figure 2-5 Mounting the Edge on the 3½” ring
Figure 2-6 Opening the portable storage case
