O P E R A T I O N C H A P T E R 1 0

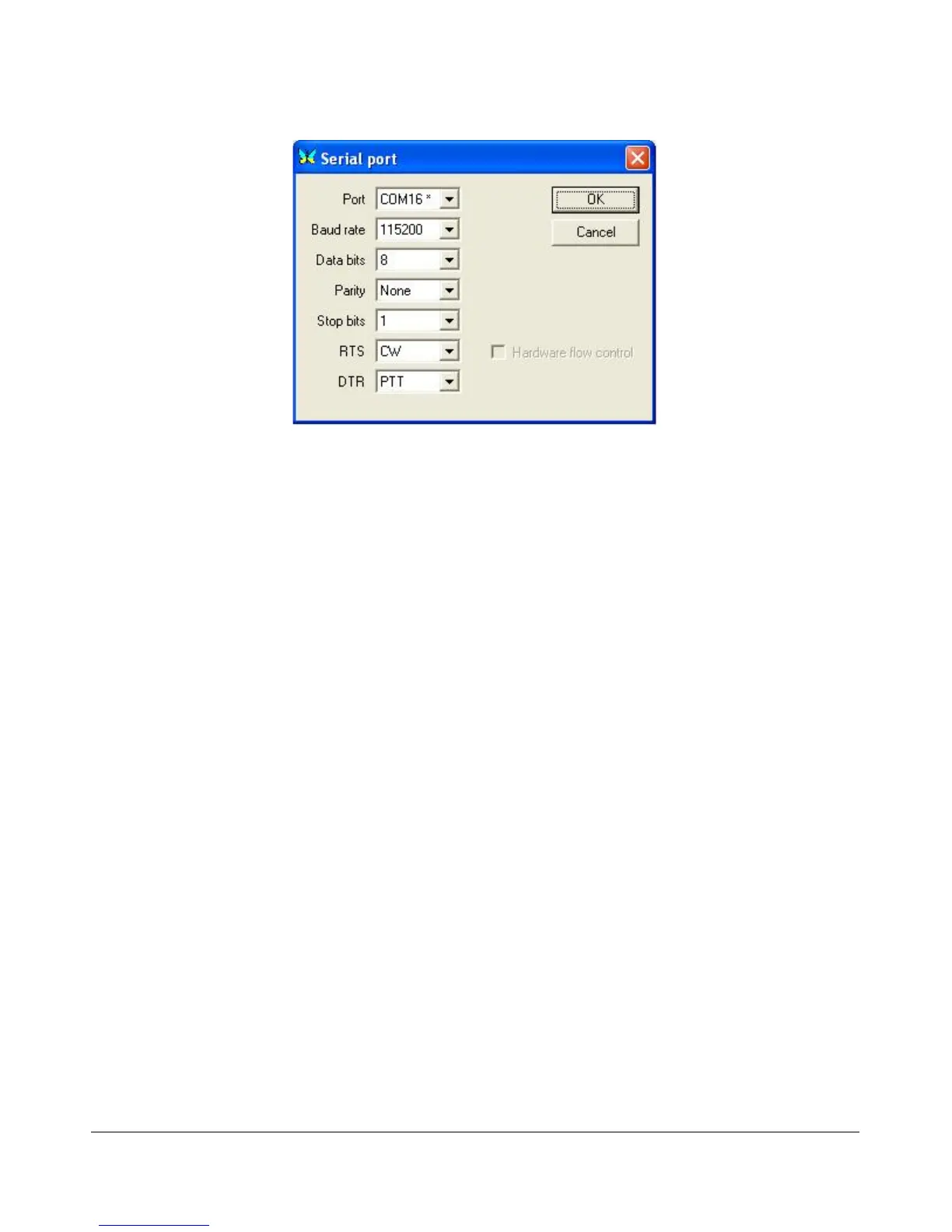

Figure 154: MixW Serial Port Settings
Recall that we are using the COM6-COM16 virtual COM port pair and that we setup PowerSDR to connect
to the COM6 end of this pair (see the CAT Control Setup section above). We therefore now select COM16
as the Port in the form above. Set the Baud rate to 115200 (it makes no difference what you set this to).
For RTS and DTR we need to match the settings on the PowerSDR Setup Form, Keyer Sub-Tab.
Therefore set RTS to CW and DTR to PTT as shown above. Click OK on this form and then on the PTT
& CAT form respectively to accept the settings and close the forms.
On the MixW front console, click again on Configure on the menu bar and this time select Sound device
settings… to open the following form:
[The rest of this page has been left blank intentionally]
161 FlexRadio Systems
